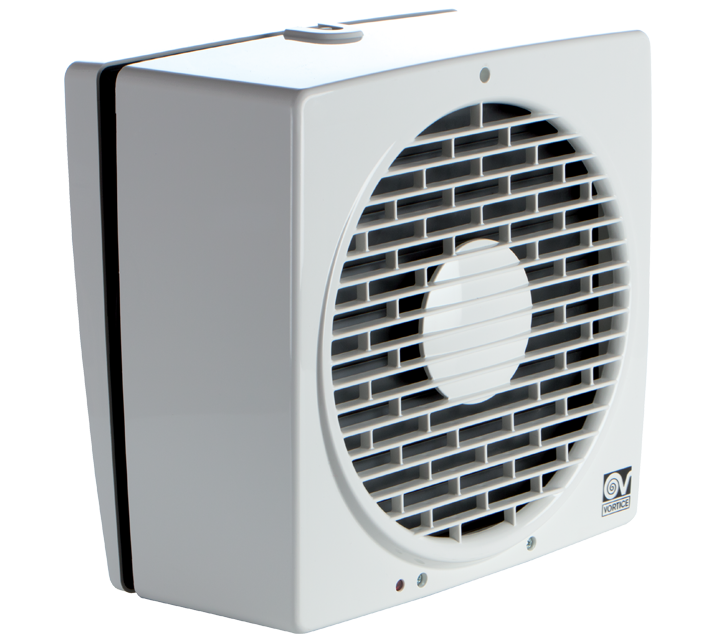

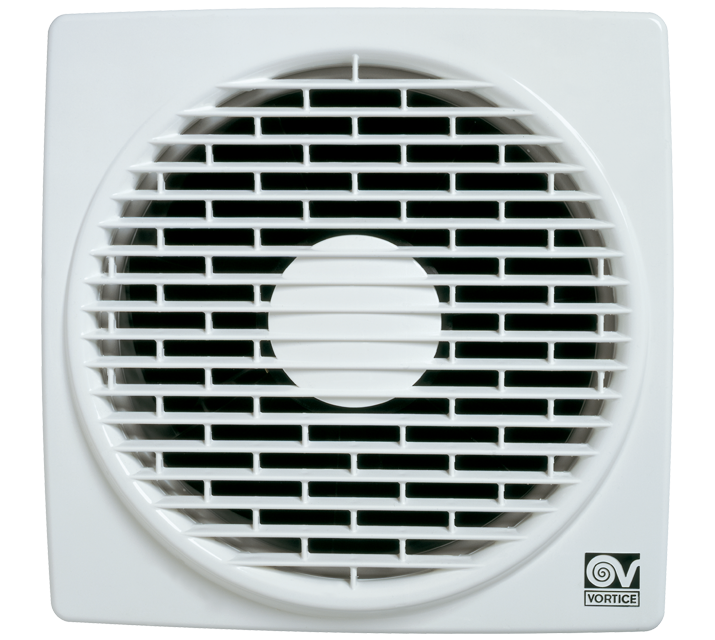

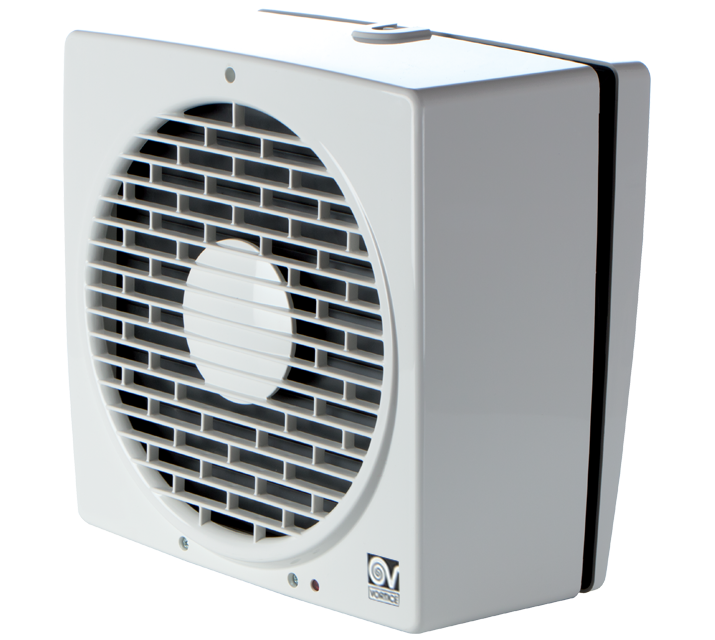

VORTICE 300/12" AR

Description

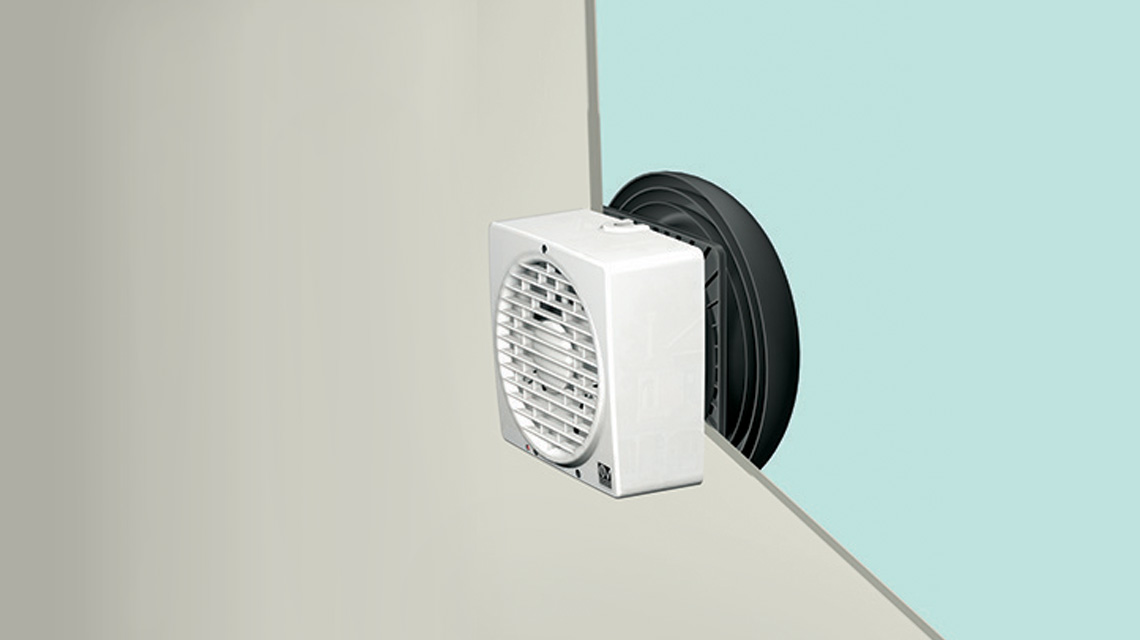

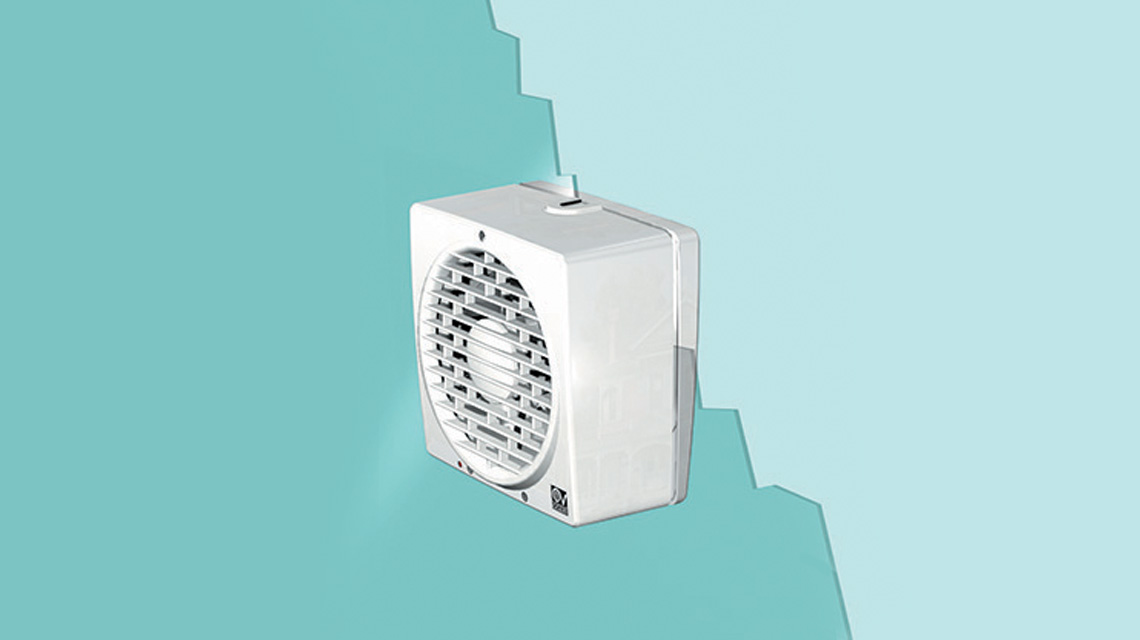

• Model designed for window/wall mounted installation.
• Reversibility function (intake or extraction).
• Automatic shutter: prevents the entry of cold air and bad smells when the appliance is switched off.
• Material: UV resistant ABS plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 300 mm.
• Motor protected against thermal overload, with shaft turning in self-lubricating bushings, coupled to screw type thermoplastic impeller with wing profile blades.

Read full descriptionClose description

Frequency (Hz)

50-60
Inlet

Automatico
Insulation class

II°
IP

X4
Max absorbed current (A)

0,21
Max absorbed power (W)

45
Max absorbed Power at 60 Hz (W)

45
Max ambient temperature for continuous operation (°C)

50
Max room temperature for continuous operation at 60 Hz (°C)

40
Ø Discharge hole (mm)

300
Voltage (V)

220-240

Weight (Kg)

6,13
Max airflow - extract (l/s)

292
Max airflow - extract (m3/h)

1050
Max airflow - intake (l/s)

194,4
Max airflow - intake (m3/h)

700
Max airflow (m³/h)

1050
RPM

840
Rpm - exhaust

840
Rpm - supply

1085
Sound pressure Lp [dB (A)] at 3 m

40,2

Ø hole thorugh the glass

324/329

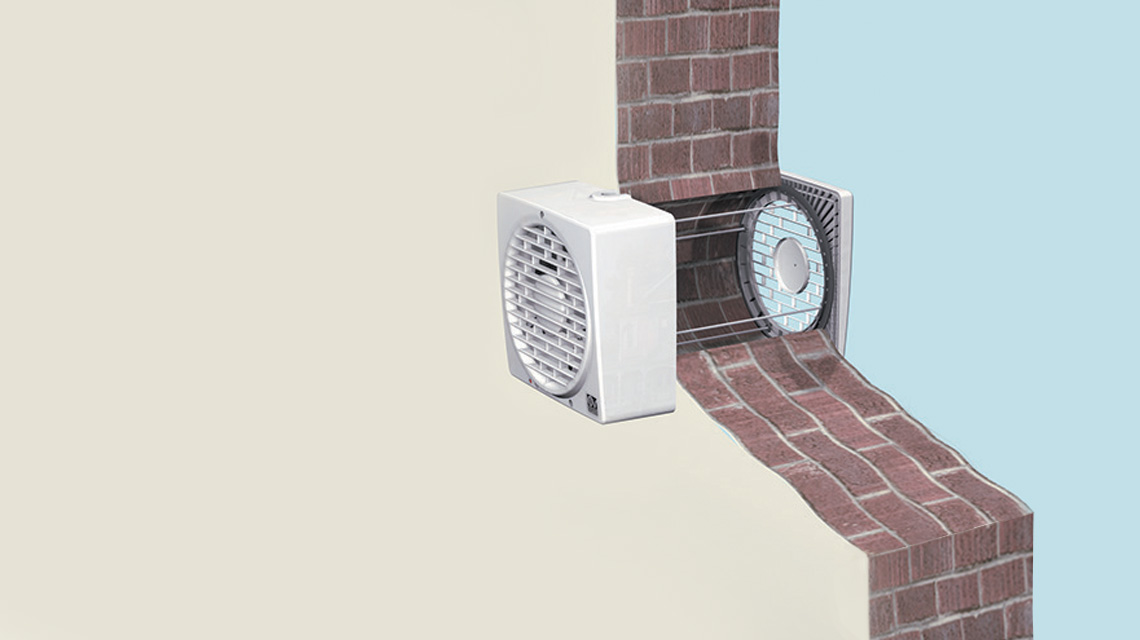

Ø hole through the wall

324/329
Size A (mm)

390
Size B (mm)

393
Size C (mm)

31
Size D (mm)

147
Size E (mm)

2/38
