Code 17026

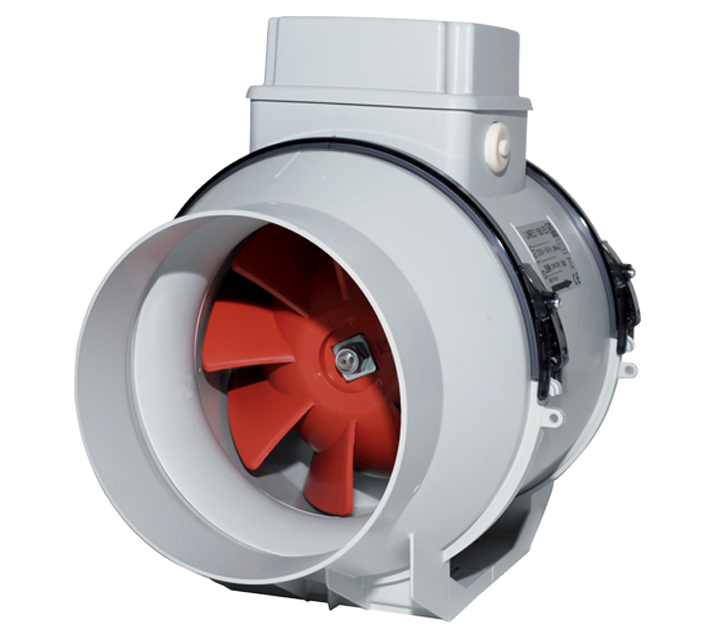

VORTICE LINEO 200 T V0

Description

• Material: self-extinguishing plastic resin (self-extinguishing capability V0)
• Nominal diameter 200 mm.
• 2 speed AC motor with thermal overload cutout and shaft turning in ball bearings, coupled to mixed flow axial-centrifugal impeller.
• Minimum air flow 790 m3/h
Maximum air flow: 1060 m3/h
• Equipped with an electronic timer designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’).
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Vortice speed controllers.
Read full descriptionClose description

Technical Data Sheet

  • Size A (mm)
    234,5
  • Size B (mm)
    260,5
  • Size C (mm)
    300
  • Size D (mm)
    196
  • Size E (mm)
    125,5
  • Size F (mm)
    235
  • Size G (mm)
    140
  • Size H (mm)
    94
  • Size L (mm)
    100
  • Size M (mm)
    6
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
