Description

Read full descriptionClose description

Certifications

  • CE CE
  • EAC EAC
Regolamento N° 206/2012/UE Regolamento N° 206/2012/UE

Technical Data Sheet

  • Absorbed Current max (A)
    5,94
  • Absorbed Power max (W)
    2230
  • Frequency (Hz)
    50
  • Max ambient temperature for continuous operation (°C)
    60
  • Motor Class
    F
  • Motor IP protection
    55
  • Voltage (V)
    230/400
  • Weight (Kg)
    238,10

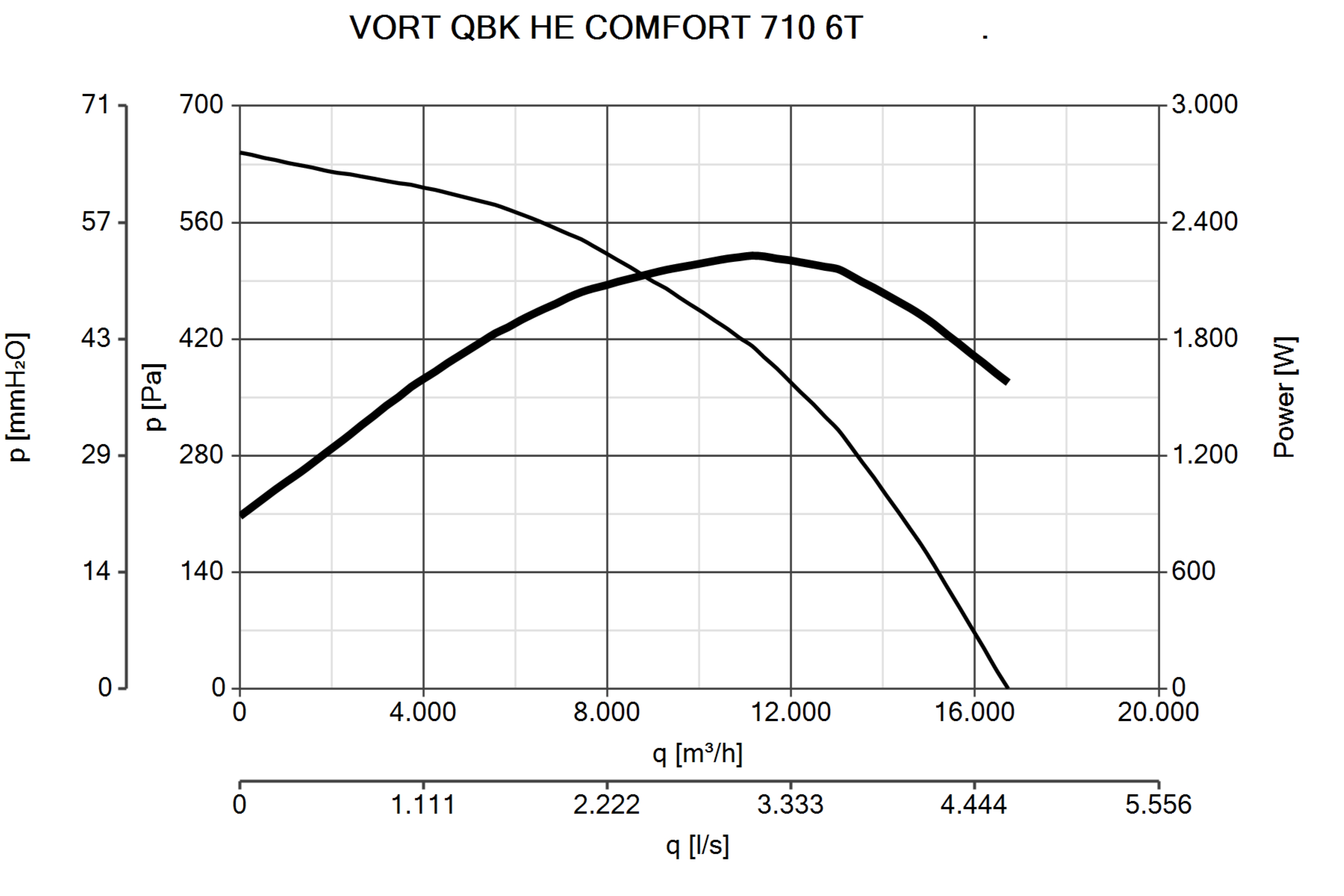

  • Delivery max (l/s)
    4646
  • Delivery max (m³/h)
    16725
  • Pressure max (mmH2O)
    65,70
  • Pressure max (Pa)
    644,3
  • RPM
    960
  • Sound power level Lw [dB(A)]
    80,00
  • Type of heat recovery system HRS:
    nessuno
  • Type of drive:
    con variatore di velocità: VSD
  • Declared typology:
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • SFPint [W/m3/s]
    835,77
  • Efficienza termica del recupero di calore [%]
    N.A.
  • Portata nominale [m3/s]
    2,93
  • Potenza elettrica assorbita effettiva [KW]
    2,45
  • Face velocity at design flow rate [m/s]:
    7,4
  • Pressione esterna nominale (?ps, ext) [Pa]
    0
  • Caduta di pressione interna dei componenti della ventilazione (?ps, int) [Pa]
    451,59
  • Caduta di pressione interna dei componenti estranei alla ventilazione (?ps, add) [Pa]
    N.A.
  • Efficienza statica dei ventilatori usati secondo Regolamento 327/2011/UE [%]
    57,89%
  • Declared maximum internal leakage rate of the casing of ventilation units [%]:
    N.A.
  • Declared maximum external leakage rate of the casing of ventilation units [%]:
    N.A.
  • Energy performance energy or classification of the filters:
    N.A.
  • Description of visual filter warning:
    N.A.
  • Casing sound power level (LWA) [dB(A)]:
    80,00
  • Size A (mm)
    1060
  • Size B (mm)
    1060
  • Size C (mm)
    1060
  • Size D (mm)
    960
  • Size E (mm)
    960
  • Size F (mm)
    708
  • Size G (mm)
    25
  • Size H (mm)
    530
  • Size I (mm)
    50
  • Size J (mm)
    1087
  • Size K (mm)
    1087
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

SWT 16
SWT 16
Safety switch; max load: 16 A.
QBK-HE GP 710                          .
QBK-HE GP 710 .
Protection grid to be applied on outlet port of VORT QBK HE SAL 710 and VORT QBK HE COMFORT 710 fans.
QBK F
QBK F
Kit made of 4 support feet for VORT QBK HE SAL and VORT QBK HE COMFORT fans.
QBK-HE RF 710
QBK-HE RF 710
Round flexible joint for VORT QBK HE SAL 710 and VORT QBK HE COMFORT 710 fans.
IRET INVERTER 10 M
IRET INVERTER 10 M
POT
POT
Potentiometer for installation in Standard DIN box.

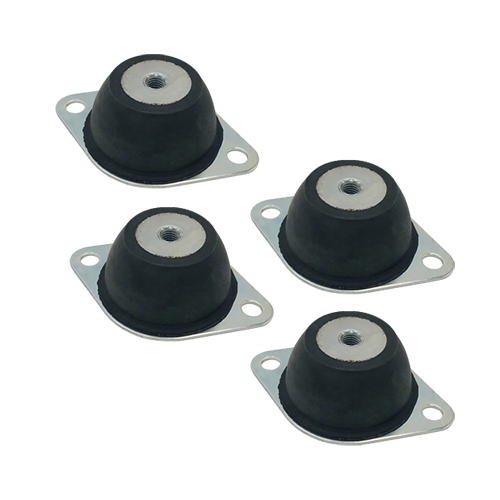

QBK SAVIB 300
QBK SAVIB 300
Antivibration rubber mounts for VORT QBK HE SAL and VORT QBK HE COMFORT fans.

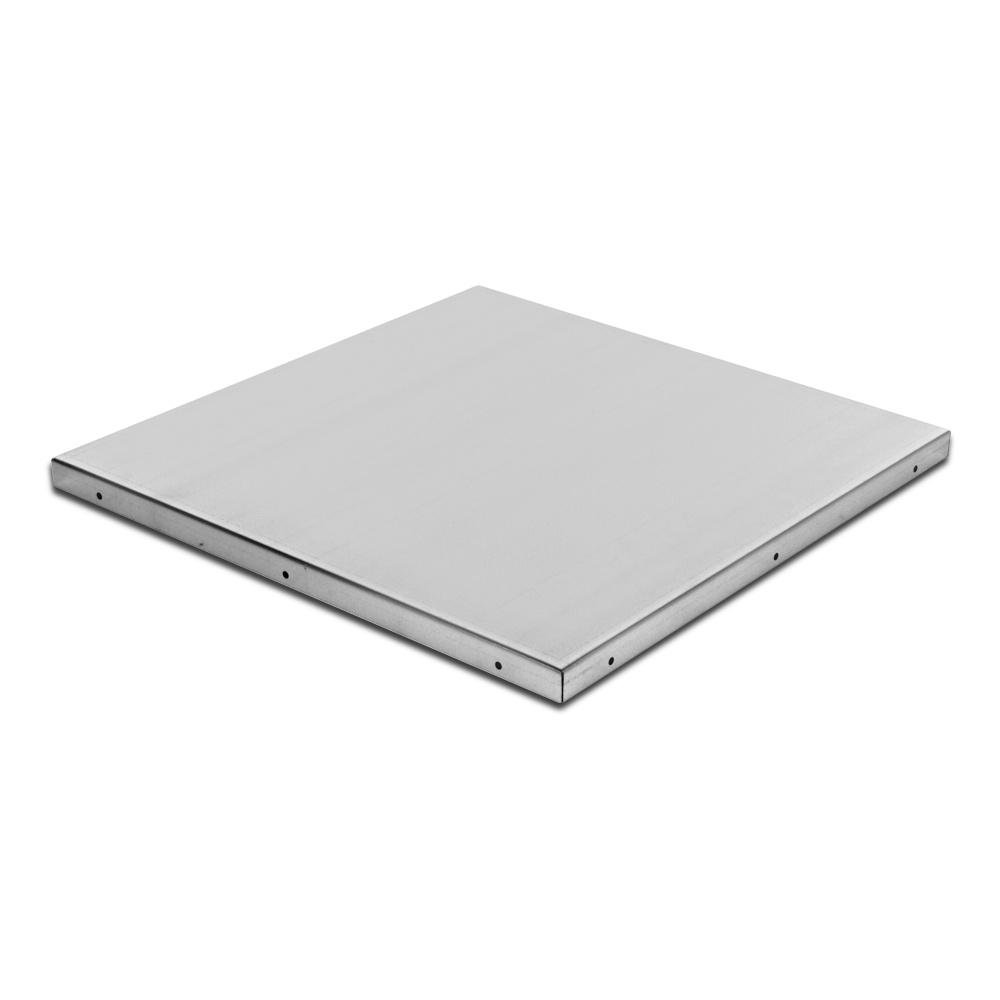

QBK-HE COMFORT RRC 710
QBK-HE COMFORT RRC 710
QBK-HE MFL 710
QBK-HE MFL 710
EMC-T FTR 5-8A
EMC-T FTR 5-8A
IRET INVERTER 400 8A
IRET INVERTER 400 8A
Speed frequency inverter; three-phase power supply and output, maximum load 8 A. Equipped with display and PID card. Certifications: CE / UL / CSA / EN / GOST / CCC. Protection deg...
