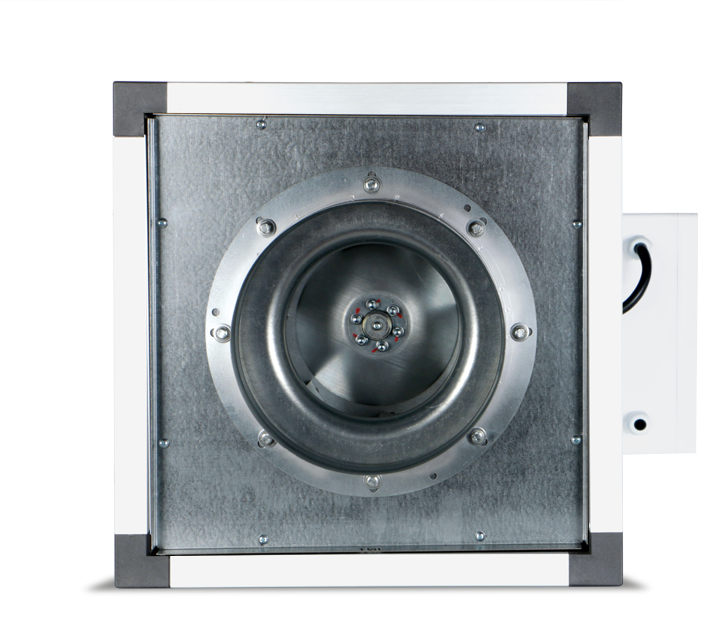

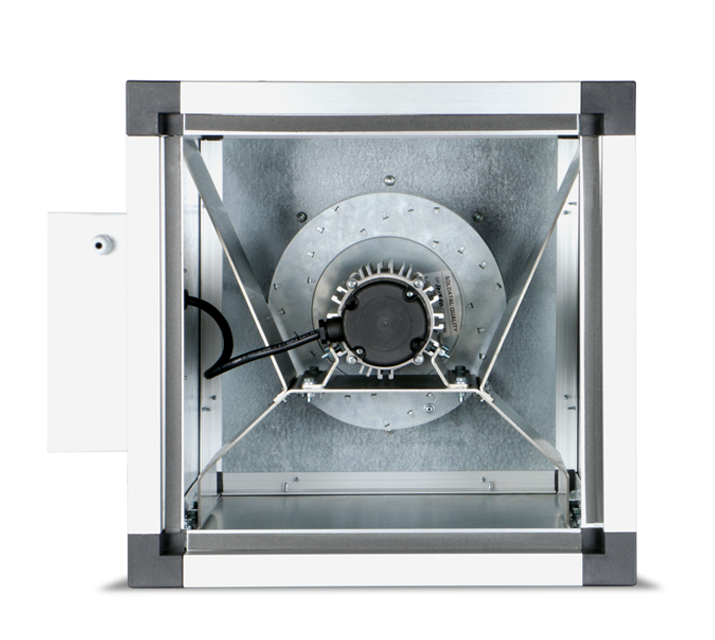

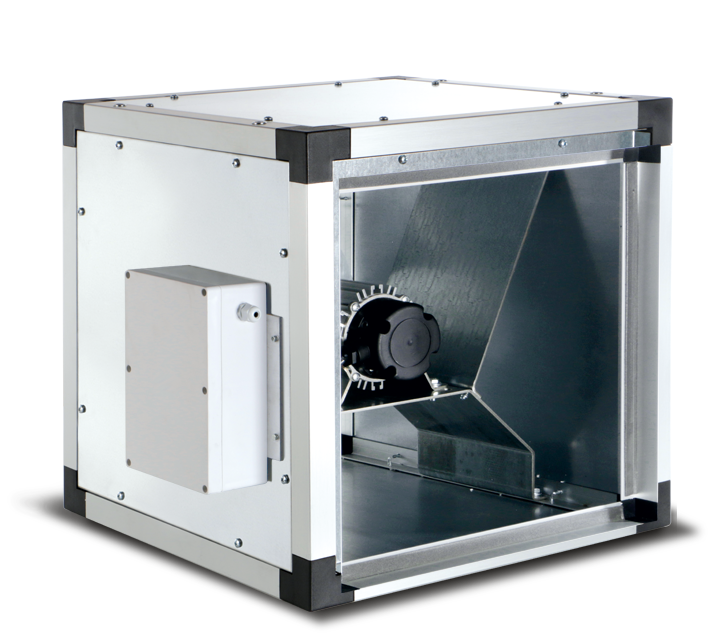

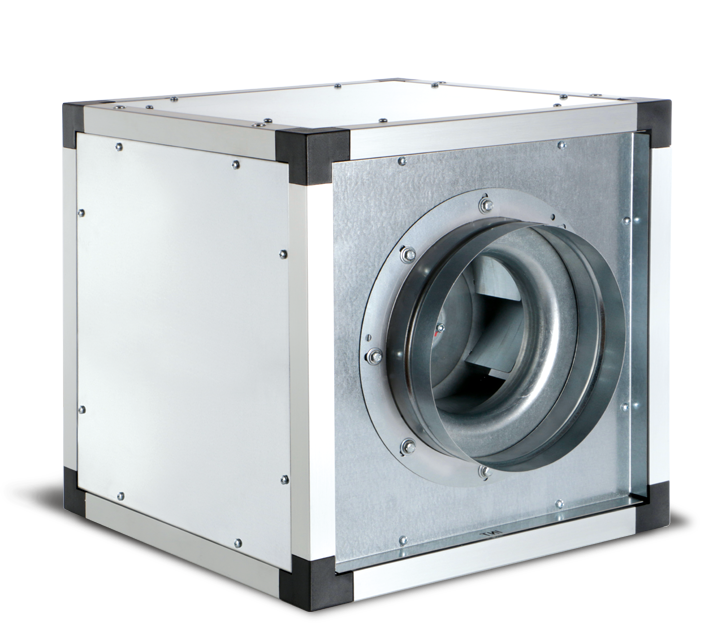

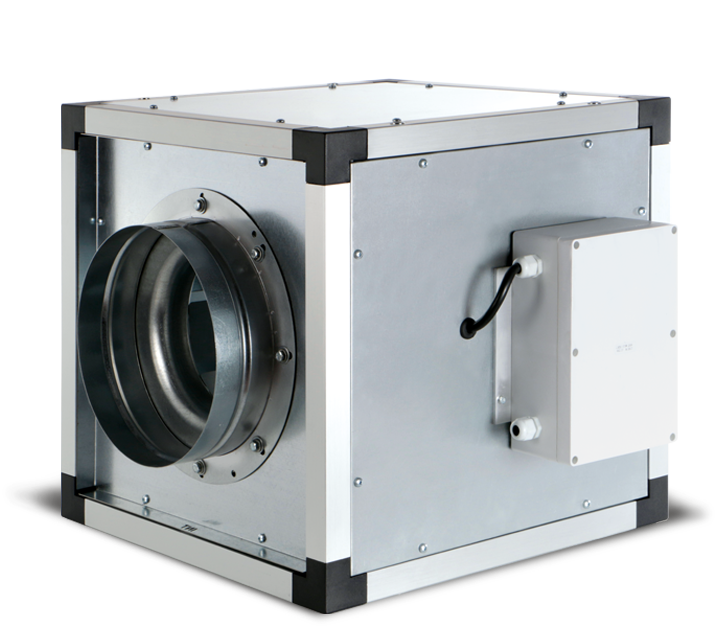

Technical Data Sheet

  • Frequency (Hz)
    50
  • Max absorbed current (A)
    4,64
  • Max absorbed power (W)
    2430
  • Max ambient temperature for continuous operation (°C)
    60
  • Motor class
    F
  • Motor protection IP
    55
  • Voltage (V)
    230/400
  • Weight (Kg)
    145,60
  • Max airflow (l/s)
    3433
  • Max airflow (m³/h)
    12358
  • Max pressure (mmH2O)
    90,70
  • Max pressure (Pa)
    889,5
  • RPM
    1440
  • Sound power Lw [dB(A)]
    82,00
  • Sound pressure Lp [dB (A)] at 3 m
    61,5
  • Type of heat recovery system HRS
    nessuno
  • Drive type
    con variatore di velocità: VSD
  • Declared type
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • SFPint (W/m3/s)
    1.155,08
  • Heat recovery nominal efficiency (%)
    N.A.
  • ([m3/s)
    2,15
  • Real absorbed electric power (KW)
    2,48
  • Face velocity at nominal airflow (m/s)
    8,72
  • Nominal external pressure (Pa)
    0
  • Inner pressure drop of ventilation components (Pa)
    628,35
  • Inner pressure drop of components not related to ventilation (Pa)
    N.A.
  • Fan static efficiency according to 327/2011/UE regulation (%)
    58,28%
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    N.A.
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    N.A.
  • Filter energy performance or classification
    N.A.
  • Description of visual filter warning:
    N.A.
  • Casing sound power level LWA [dB(A)]
    82,00
  • Size A (mm)
    910
  • Size B (mm)
    910
  • Size C (mm)
    910
  • Size D (mm)
    810
  • Size E (mm)
    810
  • Size F (mm)
    558
  • Size G (mm)
    25
  • Size H (mm)
    455
  • Size I (mm)
    50
  • Size J (mm)
    937
  • Size K (mm)
    937

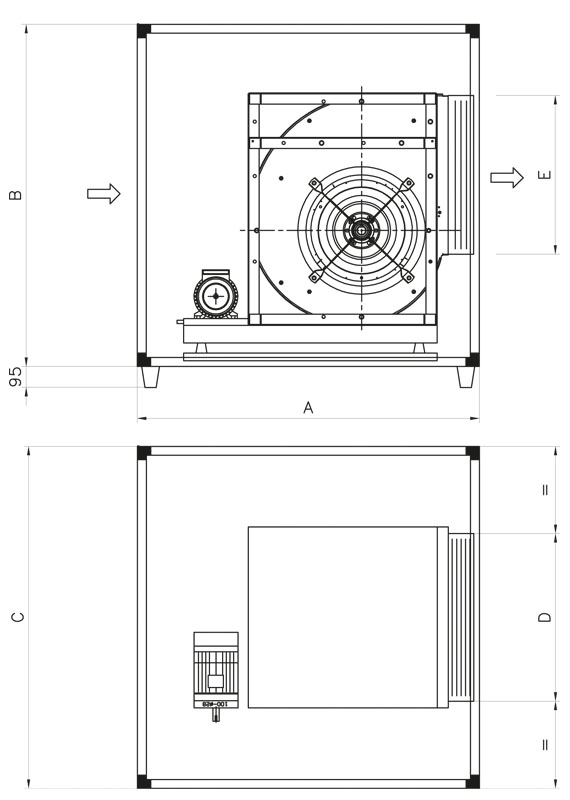

quota

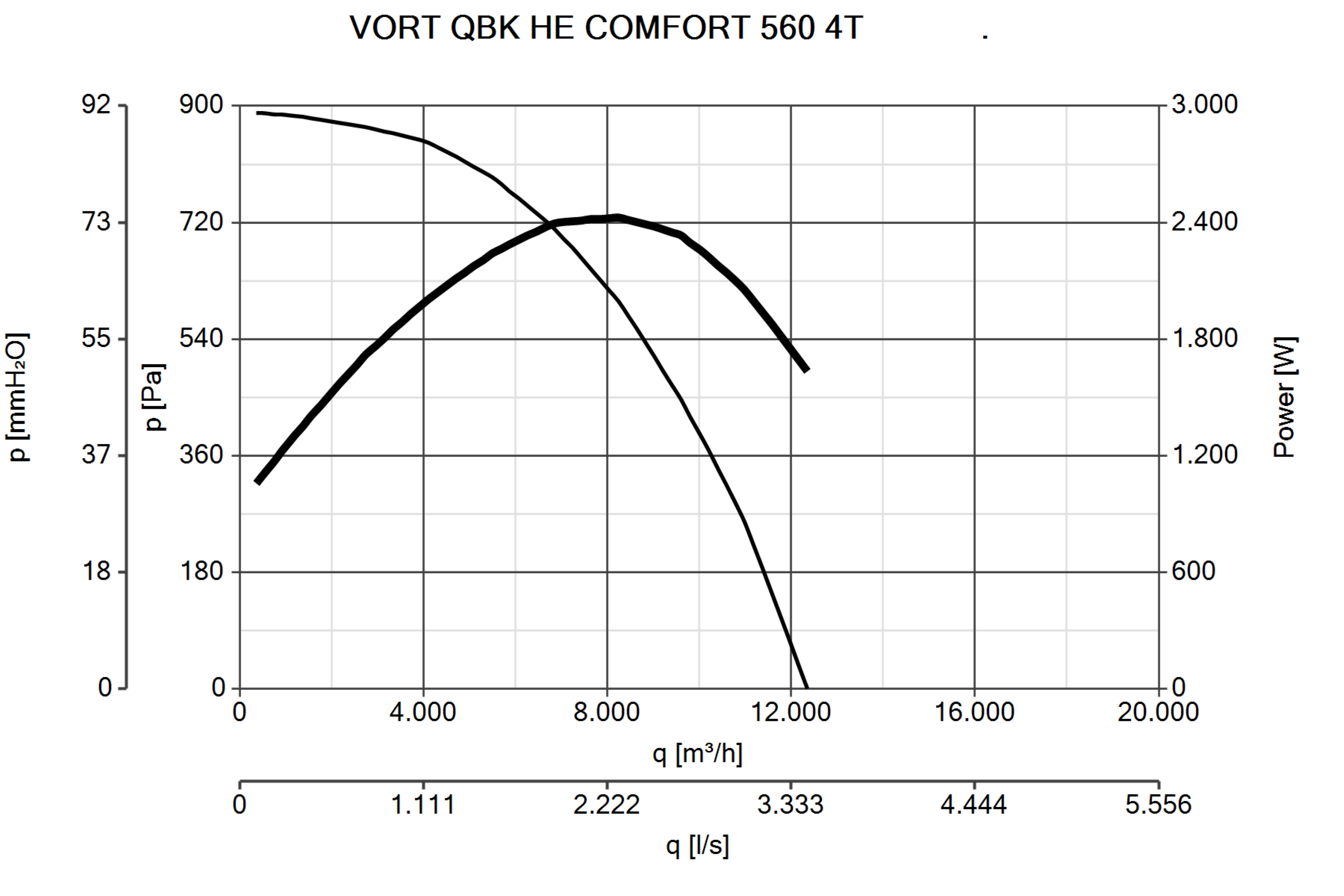

Curva_JPG_45792-Curve_per_Catalogo

Accessories

Discover accessories related to the product

SWT 16
SWT 16
Safety switch; max load: 16 A.

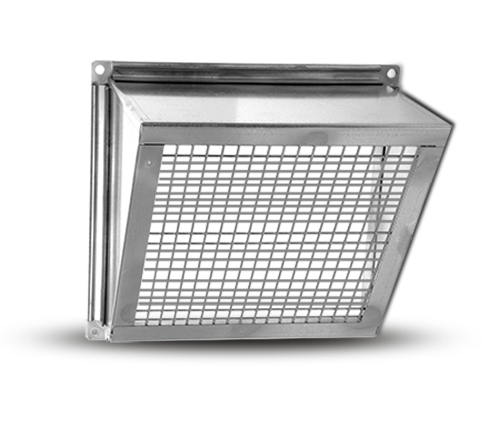

QBK-HE GP 560
QBK-HE GP 560
Protection grid to be applied on outlet port of VORT QBK HE SAL 560 and VORT QBK HE COMFORT 560 fans.
QBK F
QBK F
Kit made of 4 support feet for VORT QBK HE SAL and VORT QBK HE COMFORT fans.
QBK SAVIB 235
QBK SAVIB 235
Antivibration rubber mounts for VORT QBK HE SAL and VORT QBK HE COMFORT fans.

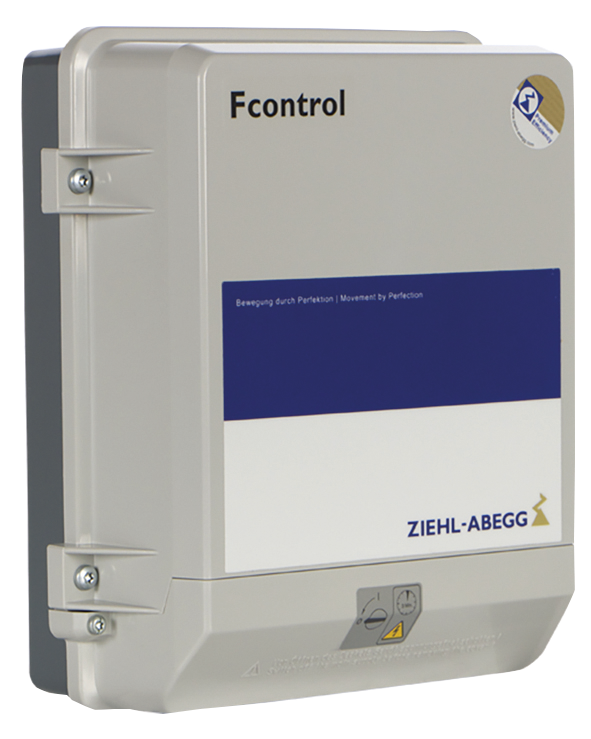

IRET INVERTER 10 M
IRET INVERTER 10 M
POT
POT
Potentiometer for installation in Standard DIN box.
QBK-HE RF 560
QBK-HE RF 560
Round flexible joint for VORT QBK HE SAL 560 and VORT QBK HE COMFORT 560 fans.

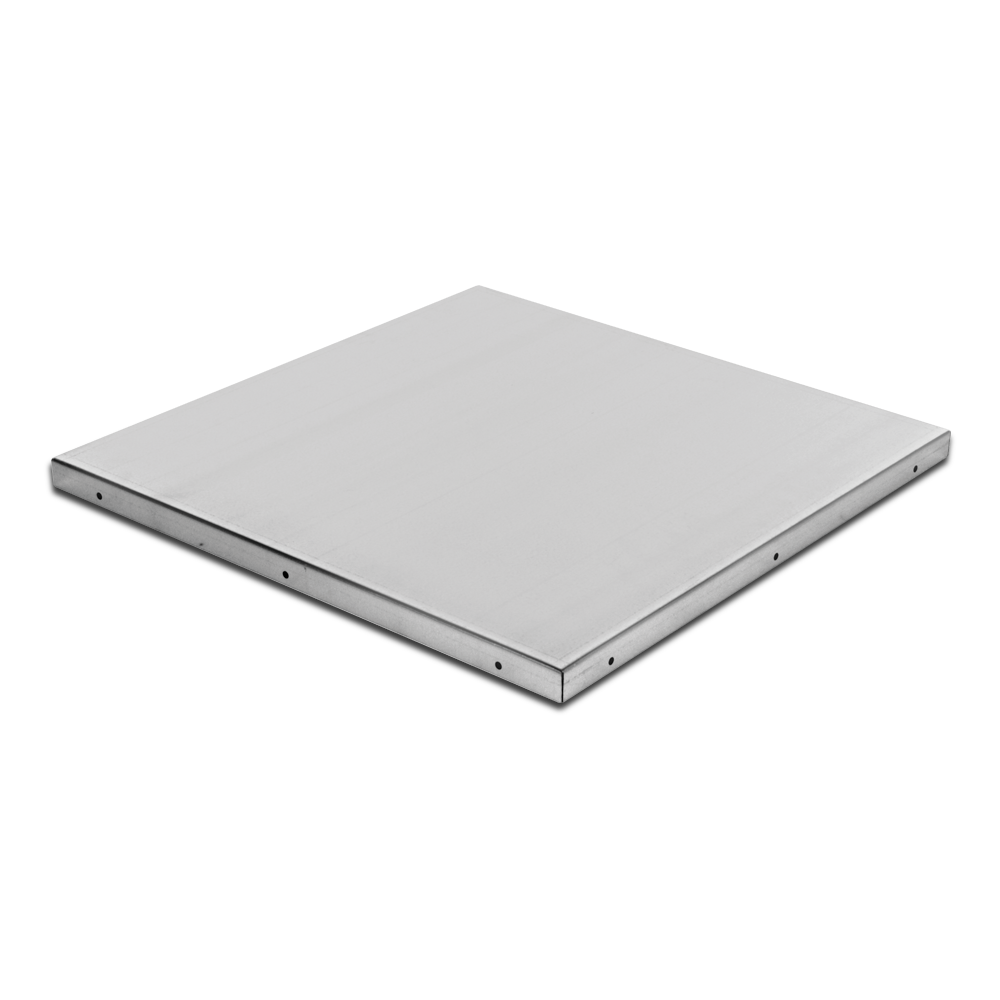

QBK-HE COMFORT RRC 560
