Description

Read full descriptionClose description

Certifications

  • CE CE
  • EAC EAC
Regolamento N° 206/2012/UE Regolamento N° 206/2012/UE

Technical Data Sheet

  • Absorbed Current max (A)
    2,49
  • Absorbed Power max (W)
    930
  • Frequency (Hz)
    50
  • Max ambient temperature for continuous operation (°C)
    60
  • Motor Class
    F
  • Motor IP protection
    55
  • Voltage (V)
    230/400
  • Weight (Kg)
    77,20

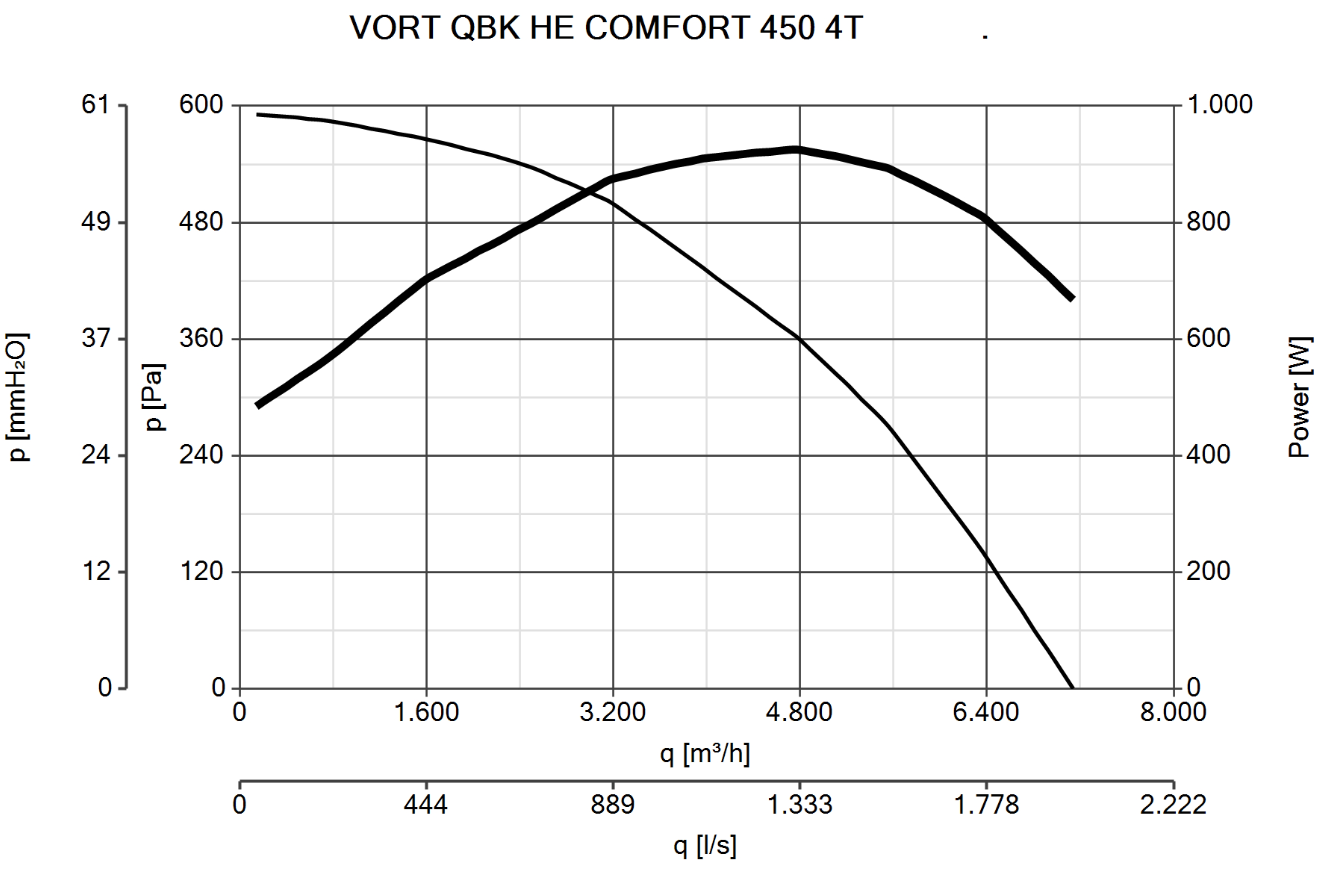

  • Delivery max (l/s)
    1984
  • Delivery max (m³/h)
    7142
  • Pressure max (mmH2O)
    60,30
  • Pressure max (Pa)
    591,4
  • RPM
    1450
  • Sound power level Lw [dB(A)]
    77,00
  • Type of heat recovery system HRS:
    nessuno
  • Type of drive:
    con variatore di velocità: VSD
  • Declared typology:
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • SFPint [W/m3/s]
    831,71
  • Efficienza termica del recupero di calore [%]
    N.A.
  • Portata nominale [m3/s]
    1,23
  • Potenza elettrica assorbita effettiva [KW]
    1,03
  • Face velocity at design flow rate [m/s]:
    7,76
  • Pressione esterna nominale (?ps, ext) [Pa]
    0
  • Caduta di pressione interna dei componenti della ventilazione (?ps, int) [Pa]
    427,73
  • Caduta di pressione interna dei componenti estranei alla ventilazione (?ps, add) [Pa]
    N.A.
  • Efficienza statica dei ventilatori usati secondo Regolamento 327/2011/UE [%]
    55,36%
  • Declared maximum internal leakage rate of the casing of ventilation units [%]:
    N.A.
  • Declared maximum external leakage rate of the casing of ventilation units [%]:
    N.A.
  • Energy performance energy or classification of the filters:
    N.A.
  • Description of visual filter warning:
    N.A.
  • Casing sound power level (LWA) [dB(A)]:
    77,00
  • Size A (mm)
    765
  • Size B (mm)
    765
  • Size C (mm)
    765
  • Size D (mm)
    665
  • Size E (mm)
    665
  • Size F (mm)
    448
  • Size G (mm)
    25
  • Size H (mm)
    382,5
  • Size I (mm)
    50
  • Size J (mm)
    792
  • Size K (mm)
    792
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

SWT 16
SWT 16
Safety switch; max load: 16 A.

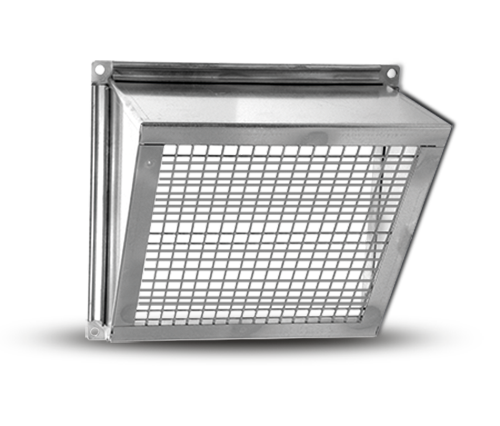

QBK-HE GP 450                          .
QBK-HE GP 450 .
Protection grid to be applied on outlet port of VORT QBK HE SAL 450 and VORT QBK HE COMFORT 450 fans.
QBK F
QBK F
Kit made of 4 support feet for VORT QBK HE SAL and VORT QBK HE COMFORT fans.
QBK-HE RF 450
QBK-HE RF 450
Round flexible joint for VORT QBK HE SAL 450 and VORT QBK HE COMFORT 450 fans.

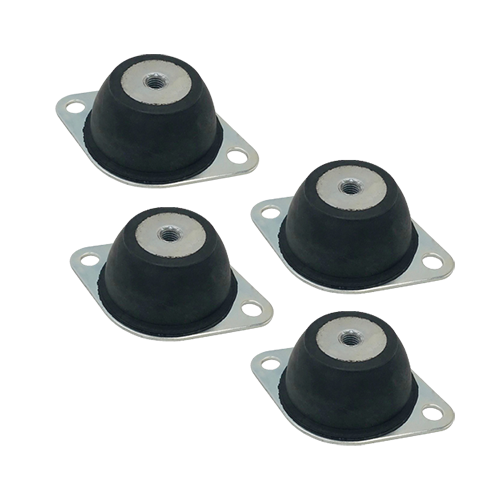

QBK SAVIB 235
QBK SAVIB 235
Antivibration rubber mounts for VORT QBK HE SAL and VORT QBK HE COMFORT fans.
IRET INVERTER 5 M
IRET INVERTER 5 M
Three-phase speed controller
POT
POT
Potentiometer for installation in Standard DIN box.

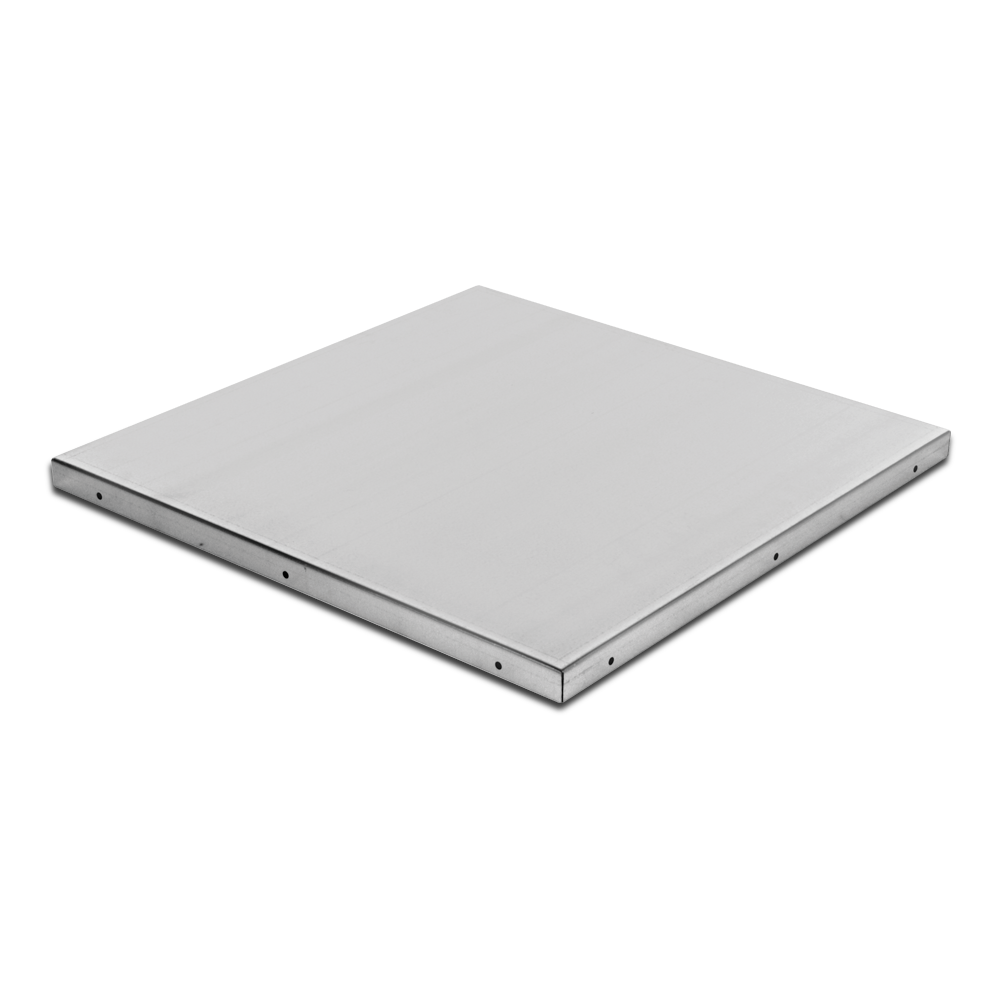

QBK-HE COMFORT RRC 450
