Technical Data Sheet
-
Frequency (Hz)50
-
Max absorbed current (A)0,79
-
Max absorbed power (W)320
-
Max ambient temperature for continuous operation (°C)60
-
Motor ATEX marking55
-
Motor classF
-
Voltage (V)230/400
-
Weight (Kg)38,20
-

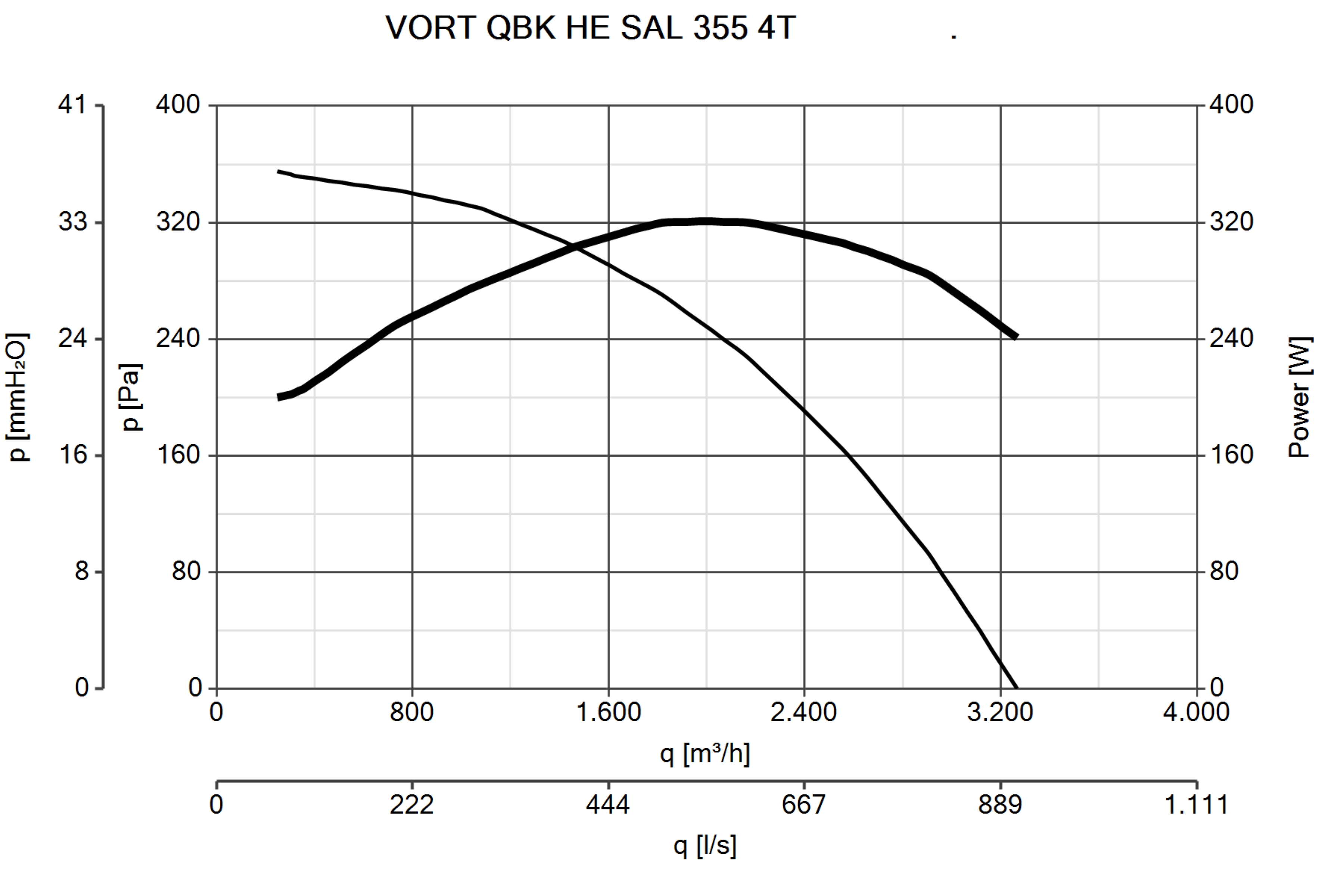

Max airflow (l/s)908
-
Max airflow (m³/h)3268
-
Max pressure (mmH2O)36,20
-
Max pressure (Pa)355,0
-
RPM1390
-
Sound power Lw [dB(A)]71,00
-
Sound pressure Lp [dB (A)] at 3 m50,5
-
Type of heat recovery system HRSnessuno
-
Drive typecon variatore di velocità: VSD
-
Declared typeUVNR-U
-
Supplier's name or trade mark:Vortice
-
SFPint (W/m3/s)547,4
-
Heat recovery nominal efficiency (%)N.A.
-
([m3/s)0,57
-
Real absorbed electric power (KW)0,31
-
Face velocity at nominal airflow (m/s)5,72
-
Nominal external pressure (Pa)0
-
Inner pressure drop of ventilation components (Pa)244,07
-
Inner pressure drop of components not related to ventilation (Pa)N.A.
-
Fan static efficiency according to 327/2011/UE regulation (%)46,98%
-
Declared maximum internal leakage rate of the ventilation unit casing (%)N.A.
-
Declared maximum external leakage rate of the ventilation unit casing (%)N.A.
-
Filter energy performance or classificationN.A.
-
Description of visual filter warning:N.A.
-
Casing sound power level LWA [dB(A)]71,00
-
Size A (mm)585
-
Size B (mm)585
-
Size C (mm)585
-
Size D (mm)525
-
Size E (mm)525
-
Size F (mm)353
-
Size G (mm)46
-
Size H (mm)292,5
-
Size I (mm)30
