VORT QBK-SAL KC T 500

Cabinet fans designed to extract hot, humid and dirty air

Description

• Cabinet: frames made of aluminium profiles; sandwich panels made of zinc-coated, 0,6 mm thick steel plates, lined with 23 mm thick rockwool.

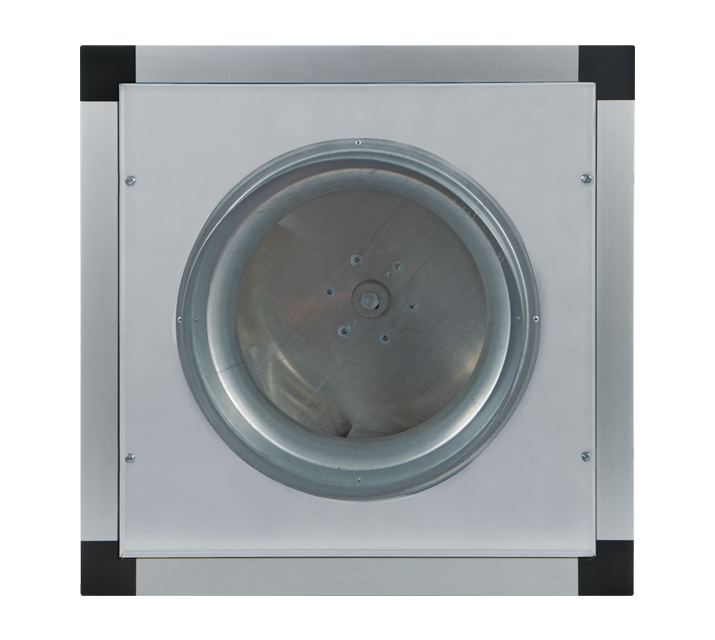

• Circular part of inlet.

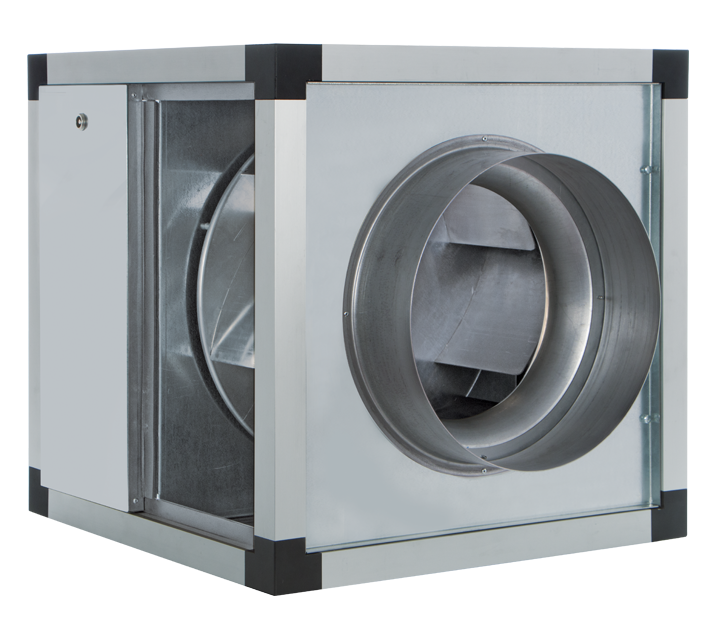

• Rectangular outlet. A specific optional adapter allows connection to circular pipes.
• Nominal diameter 500 mm.

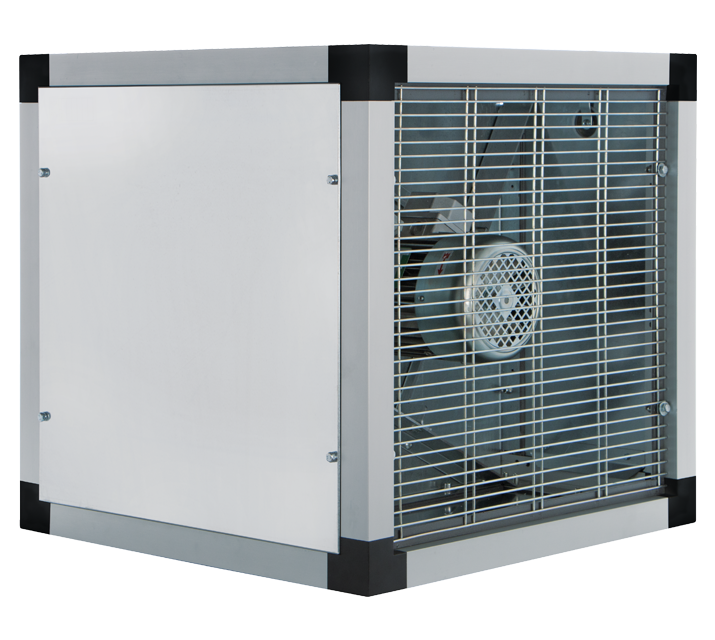

• Three-phase ball bearings AC motor, located outside the airflow and separated from the impeller by a metal panel.
• Backward curved centrifugal impeller, dynamically balanced (ISO 1940, 6.3 class).

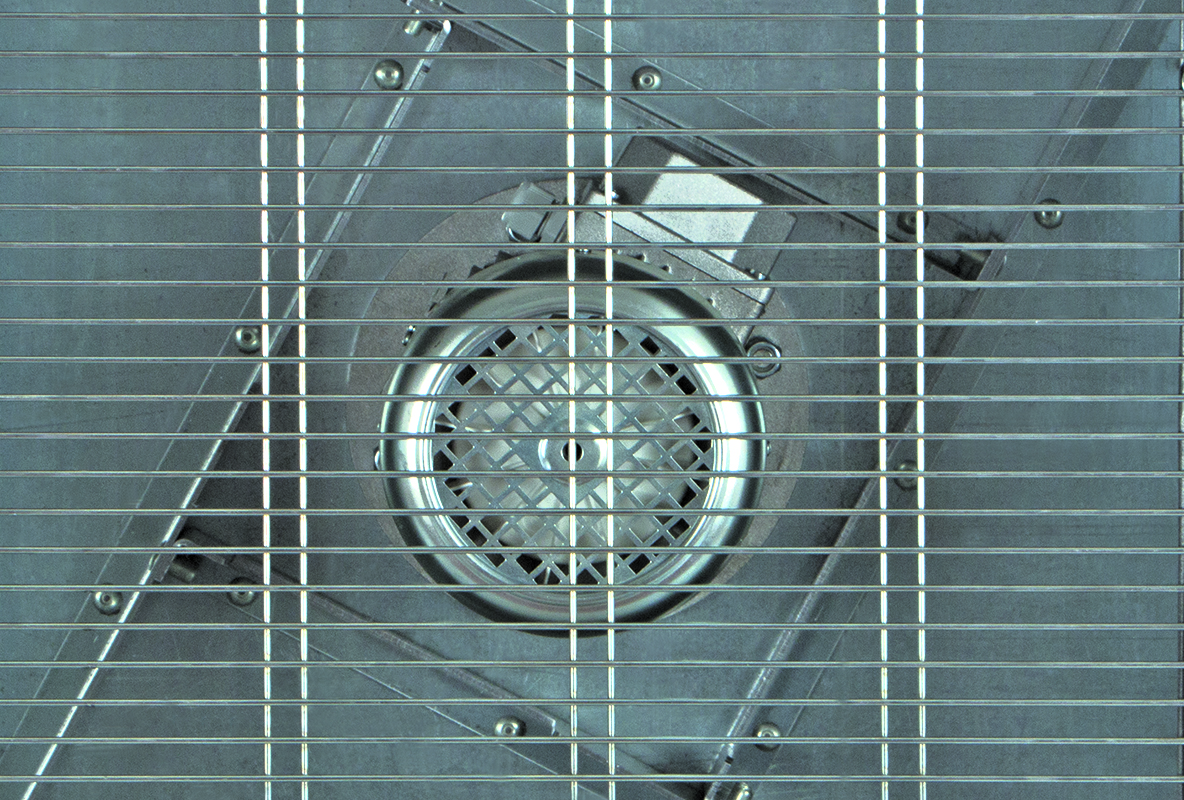

• Motor protection guard made of galvanised steel.

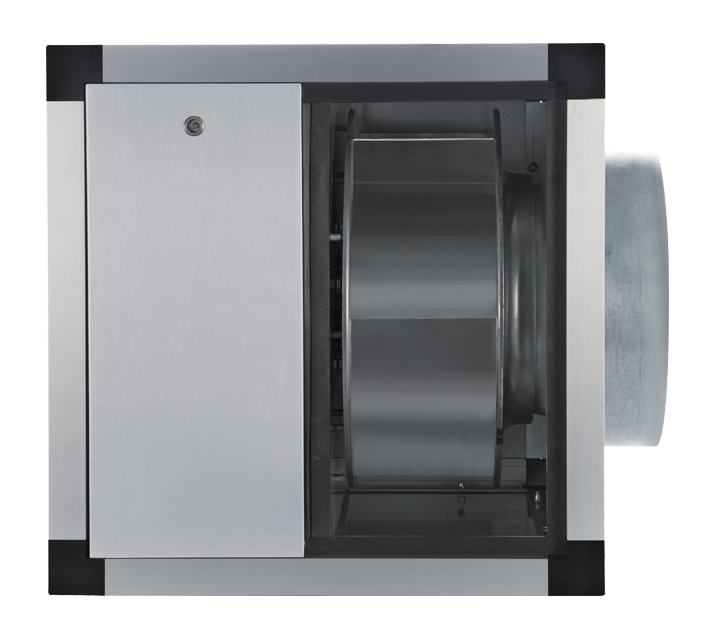

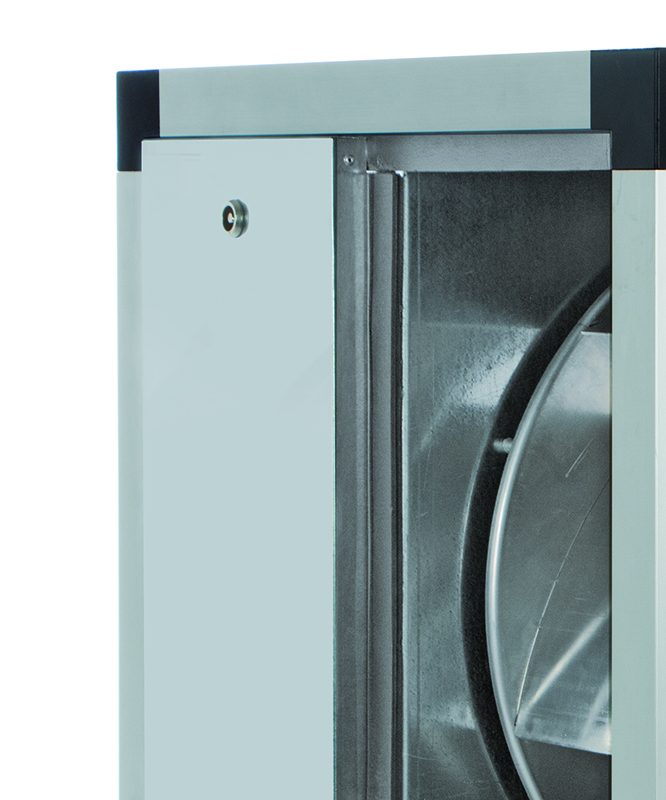

• Inspection panel with handle and triangular key.

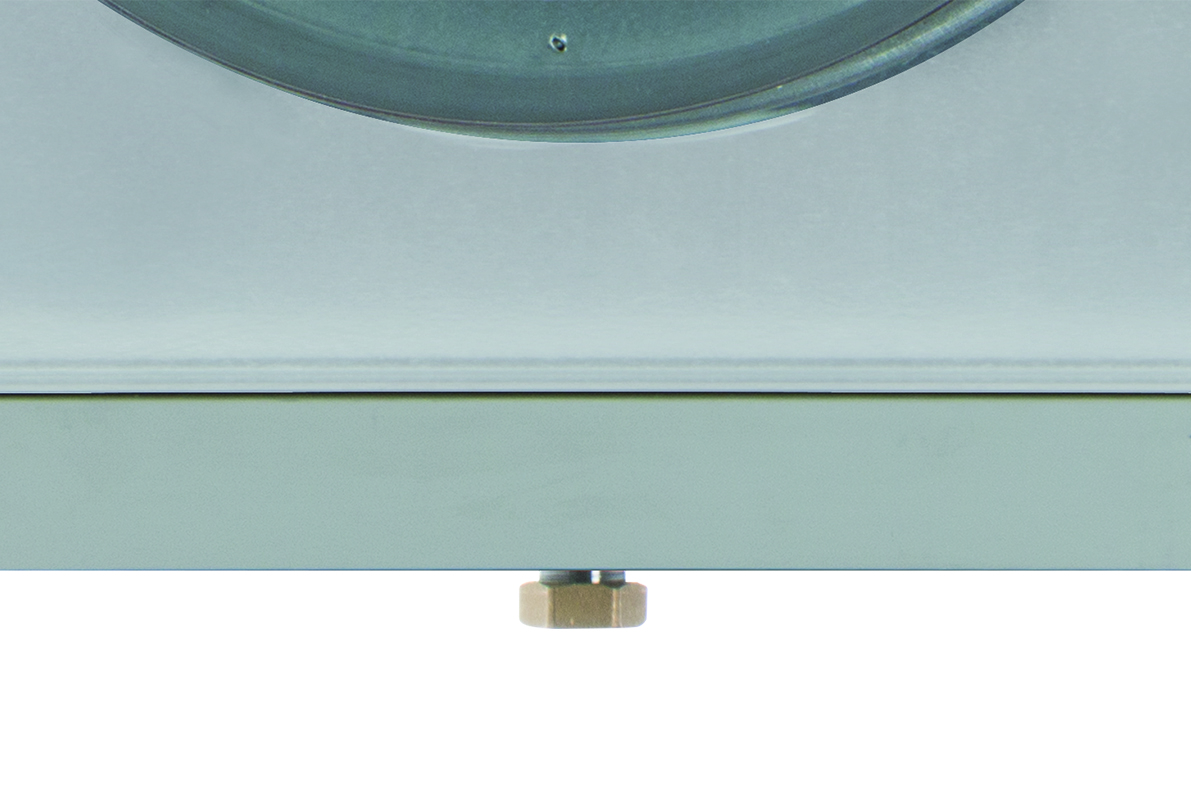

• Condensate tray made of galvanised steel with drain point and blank nut for draining.
• Temperature of extracted air up to 120°C.
• Maximum environment air temperature: 50 ° C (if controlled by IRT5 7 controller code 12856, the maximum temperature drops to 40 ° C).
• Speed adjustable through Vortice’s speed controllers.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Absorbed Current at 380 V (A)
    3,65
  • Absorbed Current at 415 V (A)
    3,55
  • Absorbed Power at 380 V (W)
    2090
  • Absorbed Power at 415 V (W)
    2180
  • Frequency (Hz)
    50
  • Insulation Class
  • IP
    55
  • Max ambient temperature for continuous operation (°C)
    50
  • Max Temperature of Exhaust Air (Continuous Operation)
    120
  • Motor Class
    H
  • Motor IP protection
    55
  • Nominal Diameter (mm)
    450
  • Number of Poles
    4
  • Voltage (V)
    380-415
  • Weight (Kg)
    80
  • Delivery max (l/s)
    2500
  • Delivery max (m³/h)
    9000
  • Pressure max (mmH2O)
    79.5
  • Pressure max (Pa)
    780
  • RPM
    1325
  • Sound power level Lw [dB(A)]
    84,2
  • Sound Pressure level Lp [dB (A)] 3m
    63,7

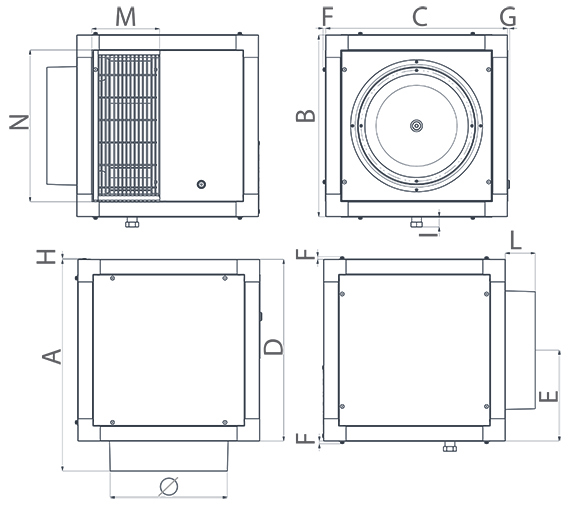

  • Size A (mm)
    803
  • Size B (mm)
    722
  • Size C (mm)
    722
  • Size D (mm)
    722
  • Size E (mm)
    361
  • Size F (mm)
    8
  • Size G (mm)
    6
  • Size H (mm)
    3
  • Size I (mm)
    28
  • Size L (mm)
    82
  • Size M (mm)
    325
  • Size N (mm)
    642
  • Size O (mm)
    Ø 498
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
