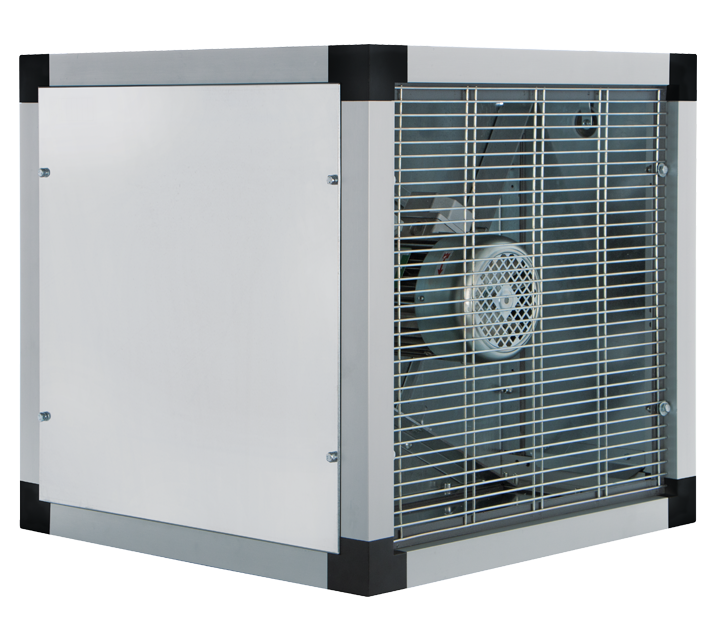

VORT QBK-SAL KC T 315

Cabinet fans designed to extract hot, humid and dirty air

Description

• Cabinet: frames made of aluminium profiles; sandwich panels made of zinc-coated, 0,6 mm thick steel plates, lined with 23 mm thick rockwool.

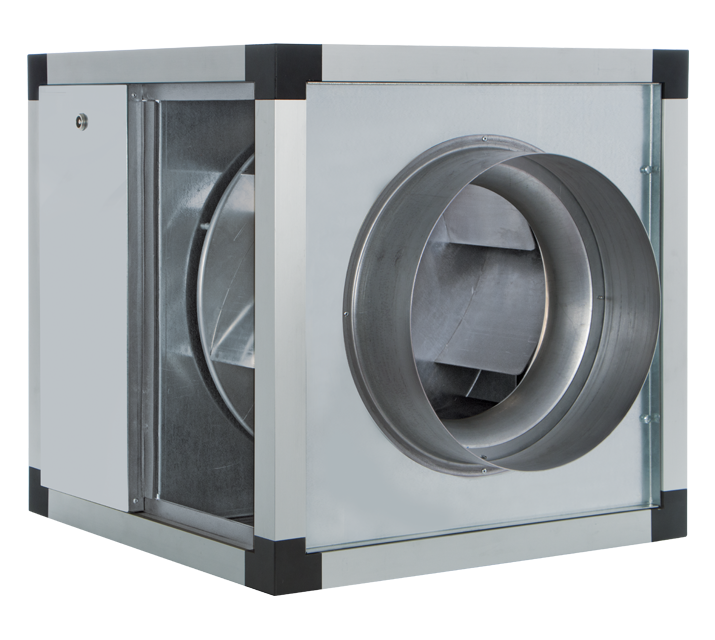

• Circular part of inlet.
• Rectangular outlet. A specific optional adapter allows connection to circular pipes.
• Nominal diameter 315 mm.

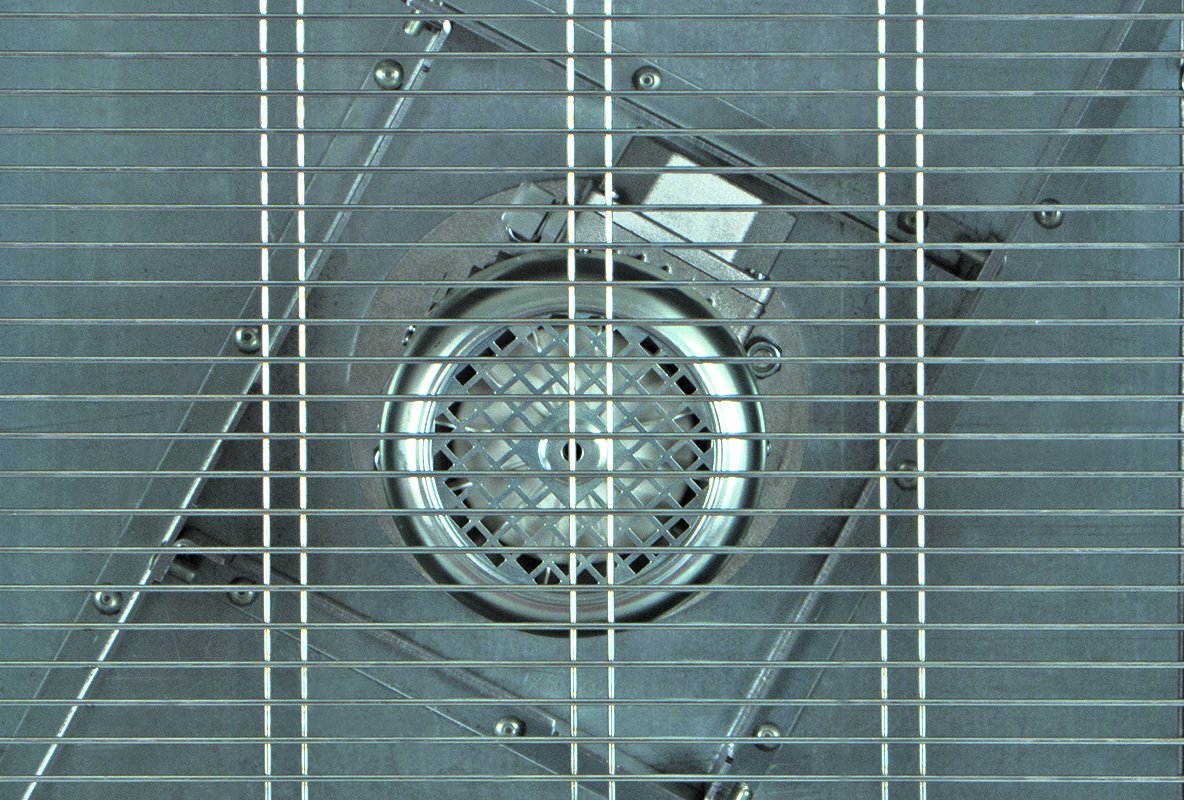

• Three-phase ball bearings AC motor, located outside the airflow and separated from the impeller by a metal panel.

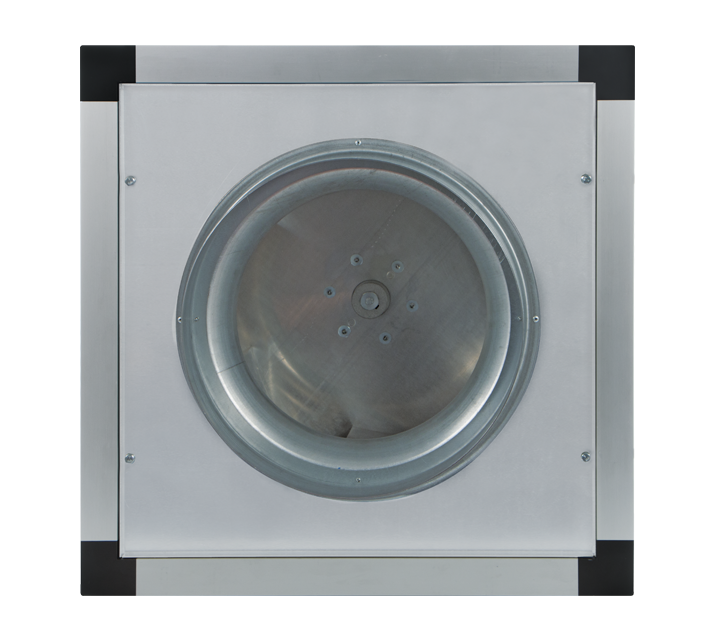

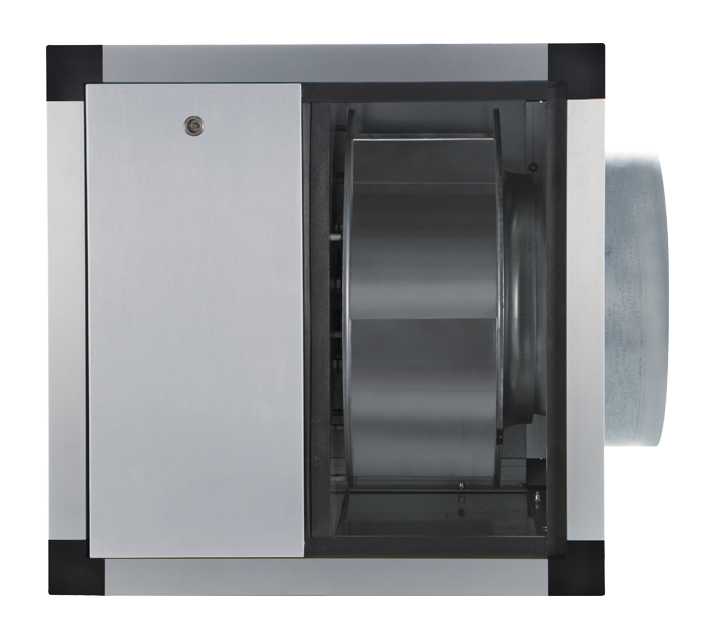

• Backward curved centrifugal impeller, dynamically balanced (ISO 1940, 6.3 class).
• Motor protection guard made of galvanised steel.

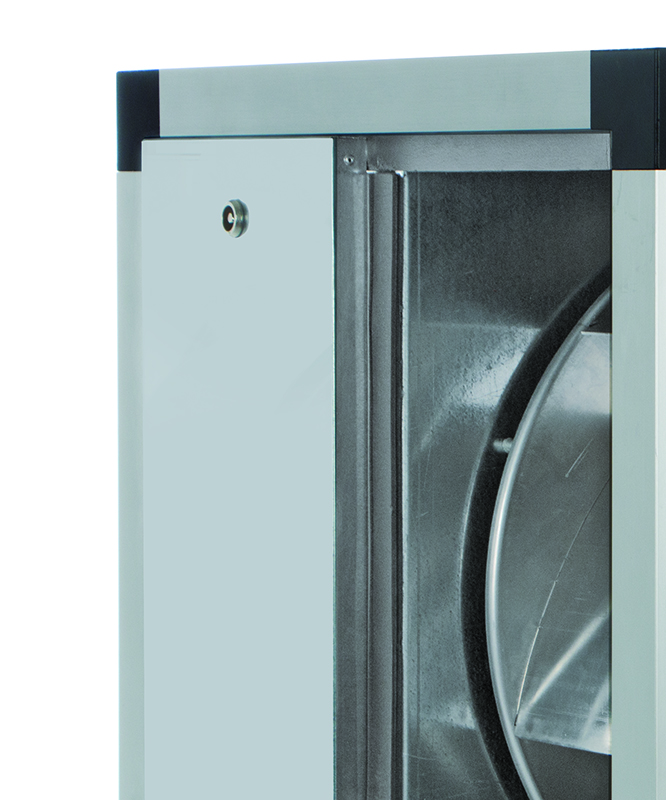

• Inspection panel with handle and triangular key.

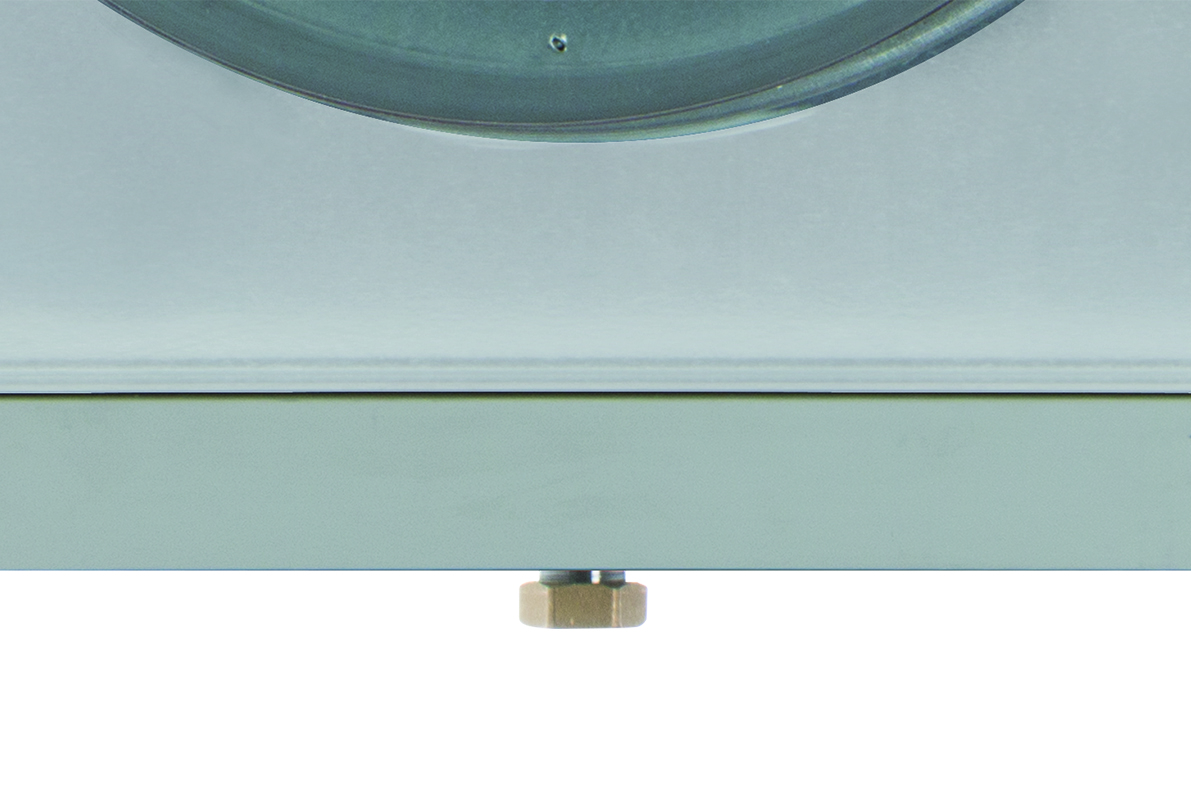

• Condensate tray made of galvanised steel with drain point and blank nut for draining.
• Temperature of extracted air up to 120°C.
• Maximum environment air temperature: 70 ° C (if controlled by IRT5 2 controller code 12852, the maximum temperature drops to 55 ° C).
• Speed adjustable through Vortice’s speed controllers.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Absorbed Current at 380 V (A)
    0.58
  • Absorbed Current at 415 V (A)
    0.61
  • Absorbed Power at 380 V (W)
    270
  • Absorbed Power at 415 V (W)
    280
  • Frequency (Hz)
    50
  • Insulation Class
  • IP
    55
  • Max ambient temperature for continuous operation (°C)
    70
  • Max Temperature of Exhaust Air (Continuous Operation)
    120
  • Motor Class
    F
  • Motor IP protection
    55
  • Nominal Diameter (mm)
    315
  • Number of Poles
    4
  • Voltage (V)
    380-415
  • Weight (Kg)
    33
  • Delivery max (l/s)
    516
  • Delivery max (m³/h)
    1860
  • Pressure max (mmH2O)
    37.5
  • Pressure max (Pa)
    367
  • RPM
    1420
  • Sound power level Lw [dB(A)]
    70,9
  • Sound Pressure level Lp [dB (A)] 3m
    50,4

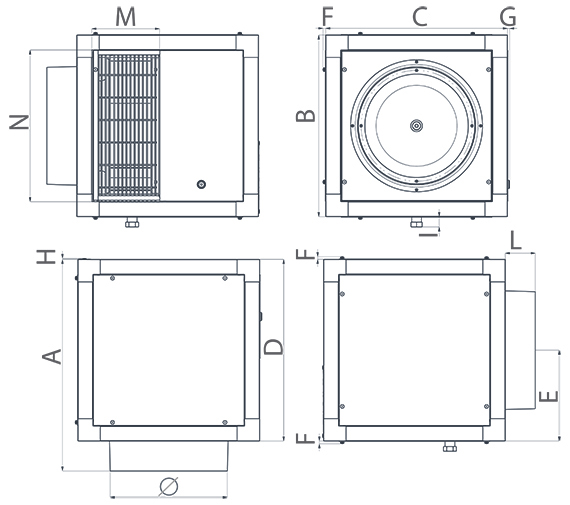

  • Size A (mm)
    566
  • Size B (mm)
    485
  • Size C (mm)
    485
  • Size D (mm)
    485
  • Size E (mm)
    243
  • Size F (mm)
    8
  • Size G (mm)
    6
  • Size H (mm)
    3
  • Size I (mm)
    28
  • Size L (mm)
    82
  • Size M (mm)
    180
  • Size N (mm)
    405
  • Size O (mm)
    Ø 311
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

PIEDINI 500/560
PIEDINI 500/560
IRET INVERTER 2,5 M
IRET INVERTER 2,5 M
Three-phase speed controller
RACCORDO RETTANGOLARE TONDO 315
RACCORDO RETTANGOLARE TONDO 315
ANTIVIBRANTI 315/355
ANTIVIBRANTI 315/355
TETTO PARAPIOGGIA 315
TETTO PARAPIOGGIA 315
TETTO PROTEZIONE SCARICO 315
TETTO PROTEZIONE SCARICO 315
SWT 16
SWT 16
Safety switch; max load: 16 A.
POT
POT
Potentiometer for installation in Standard DIN box.
