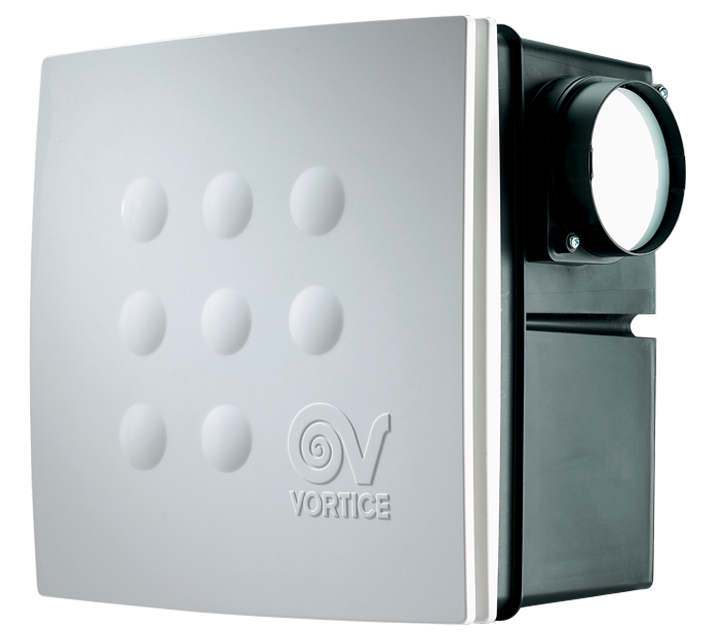

MEDIO I EP AC - Vortice

Description

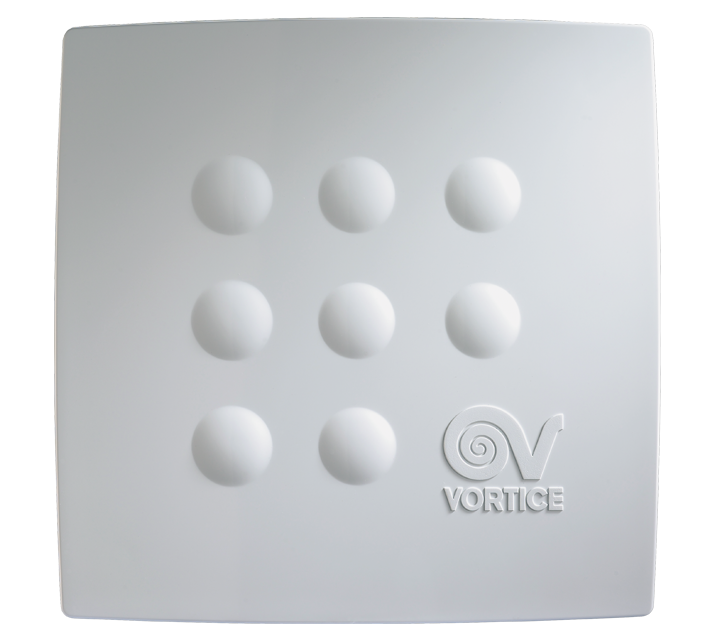

• Material used for parts not recessed into wall: white ABS plastic.
• Material used for parts recessed into wall: talc-filled black plastic (PP) giving added strength.
• Nominal diameter 100 mm.
• Capacitor start 2-speed induction motor coupled to a forward bladed centrifugal impeller, with thermal overload cutout and self-lubricating bushings.

Read full descriptionClose description

Frequency (Hz)

50
Insulation class

II°
IP

X4
Max absorbed current at Max speed (A)

0,18
Max absorbed current at Min speed (A)

0,14
Max absorbed power at Max speed (W)

29
Max ambient temperature for continuous operation (°C)

50
Nominal diameter (mm)

100
Ø Discharge hole (mm)

97
Power absorbed at 1st speed (W)

25
Voltage (V)

220-240
Weight (Kg)

2,8

Airflow at 1st speed (l/s)

19,4
Airflow at 1st speed (m³/h)

70
Max airflow at Max speed (l/s)

33,9
Max airflow at Max speed (m³/h)

122
Max pressure at Max speed (mmH20)

33,7
Max pressure at Max speed (Pa)

331
Max RPM

1300
Min RPM

1000
Pressure at 1st speed (mmH20)

21
Pressure at 1st speed (Pa)

206
Sound pressure at 3m at Max speed calculated in free field Lp [dB(A)]

41,3
Sound pressure at 3m at Min speed calculated in free field Lp [dB(A)]

36

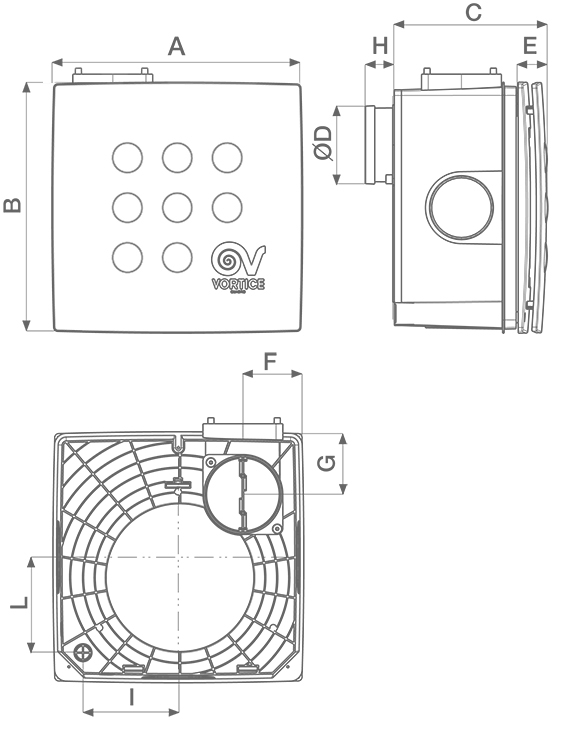

Size A (mm)

287
Size B (mm)

287
Size C (mm)

167
Size D (mm)

97
Size E (mm)

37
Size F (mm)

75
Size G (mm)

72
Size H (mm)

37
Size I (mm)

103
Size L (mm)

97
