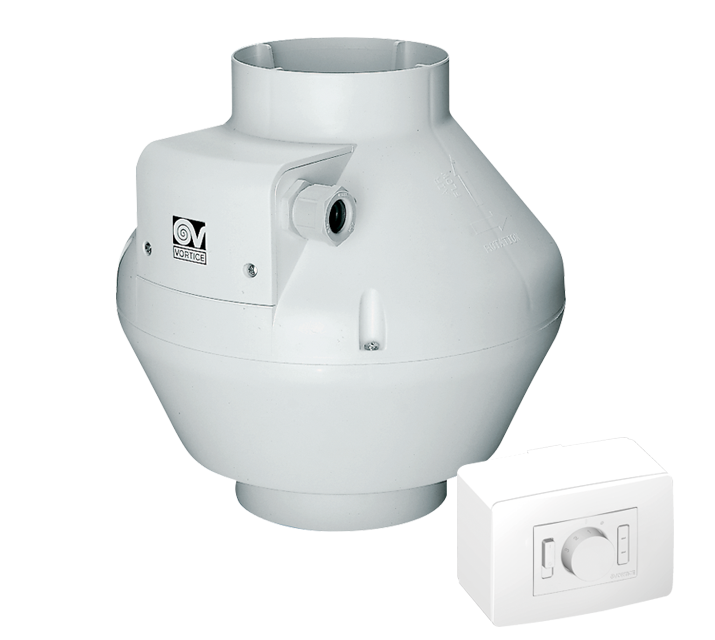

Description
• Material: self-extinguishing PP thermoplastic resin, rated V0.
• Nominal diameter 200 mm
• 3 speeds AC motor with thermal overload cutout and shaft turning in ball bearings, coupled to backward curved impeller.
• Maximum air flow 700 m3/h
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
• Zinc-coated steel brackets for wall mounting
• Vortice speed controller
• Nominal diameter 200 mm
• 3 speeds AC motor with thermal overload cutout and shaft turning in ball bearings, coupled to backward curved impeller.
• Maximum air flow 700 m3/h
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
• Zinc-coated steel brackets for wall mounting
• Vortice speed controller
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
IP44
-
Max absorbed current (A)0,45
-
Max absorbed power (W)104
-
Max ambient temperature for continuous operation (°C)50
-
Nominal diameter (mm)200
-
Ø Discharge hole (mm)197
-
Voltage (V)220-240
-
Weight (Kg)3,1
-
Max airflow at Max speed (l/s)224
-
Max airflow at Max speed (m³/h)805
-
Max pressure at Max speed (mmH20)44,7
-
Max pressure at Max speed (Pa)438
-
Max RPM2355
-
Sound pressure at 3m at Max speed Lp [dB (A)]59
-

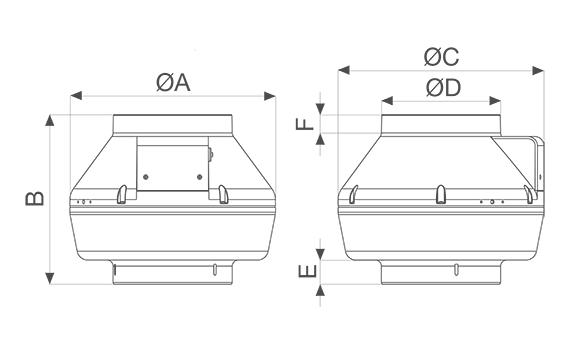

Size A (mm)340
-
Size B (mm)280
-
Size C (mm)340
-
Size D (mm)197
-
Size E (mm)40
-
Size F (mm)30
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
