CA 200 MD EP - Vortice

Description

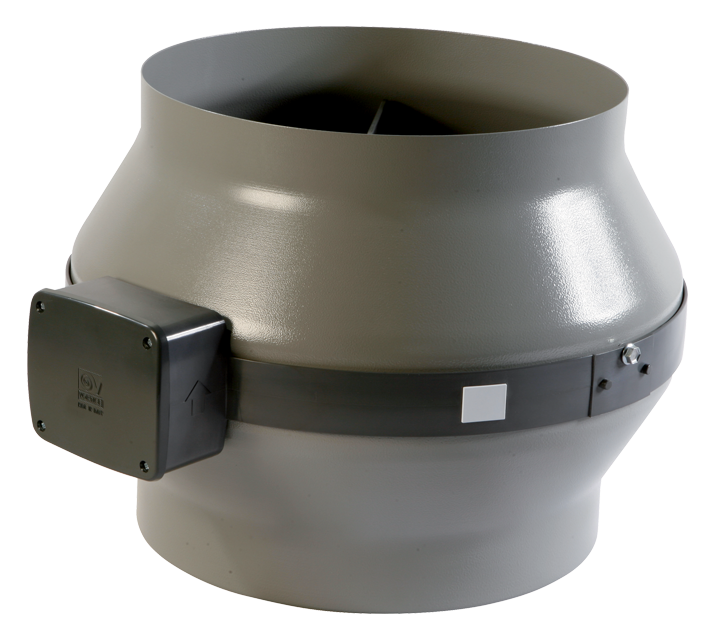

• Pickled and phosphated steel housing with polyester powder-coated finish, resistant to the aggressive action of atmospheric agents.
• Nominal diameter 200 mm.
• 3 speeds AC motor of external rotor type with thermal overload cutout and shaft turning in ball bearings, coupled to backward curved impeller.
• Minimum air flow 500 m3/h
Maximum air flow 830 m3/h
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence
• Zinc-coated steel brackets for wall mounting
• Vortice speed controller included.

Read full descriptionClose description

Frequency (Hz)

50-60
Insulation class

II°
IP

44
Max absorbed current at Max speed (A)

0,43
Max absorbed current at Min speed (A)

0,35
Max absorbed Power at 60 Hz (W)

115
Max absorbed power at Max speed (W)

98
Max ambient temperature for continuous operation (°C)

50
Nominal diameter (mm)

200
Power absorbed at 1st speed (W)

39
Voltage (V)

220-240
Weight (Kg)

4,8

Airflow at 1st speed (l/s)

114
Airflow at 1st speed (m³/h)

412
Max airflow at Max speed (l/s)

215
Max airflow at Max speed (m³/h)

775
Max pressure at Max speed (mmH20)

45
Max pressure at Max speed (Pa)

441
Max RPM

2630
Min RPM

1440
Pressure at 1st speed (mmH20)

36
Pressure at 1st speed (Pa)

353
Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed

36,2
Sound pressure at 3m at Max speed Lp [dB (A)]

48,1

Size A (mm)

347
Size B (mm)

275
Size C (mm)

392
Size D (mm)

197
Size E (mm)

20
Size F (mm)

17
