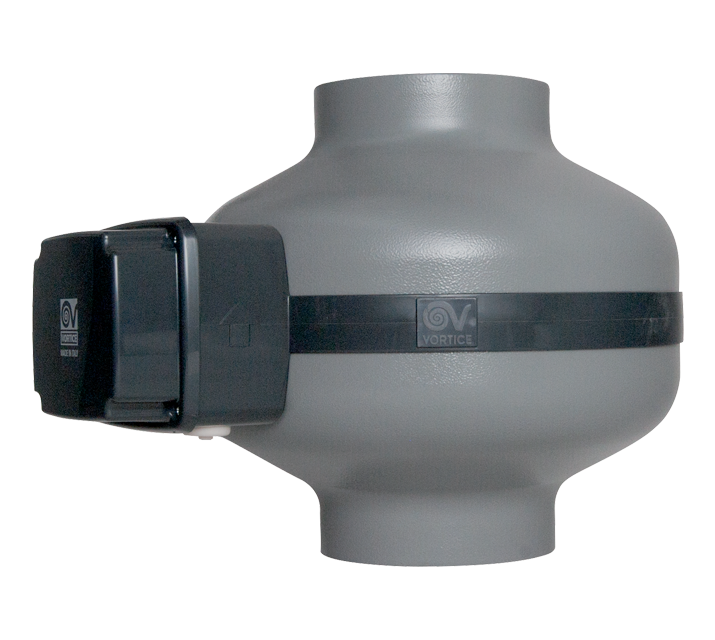

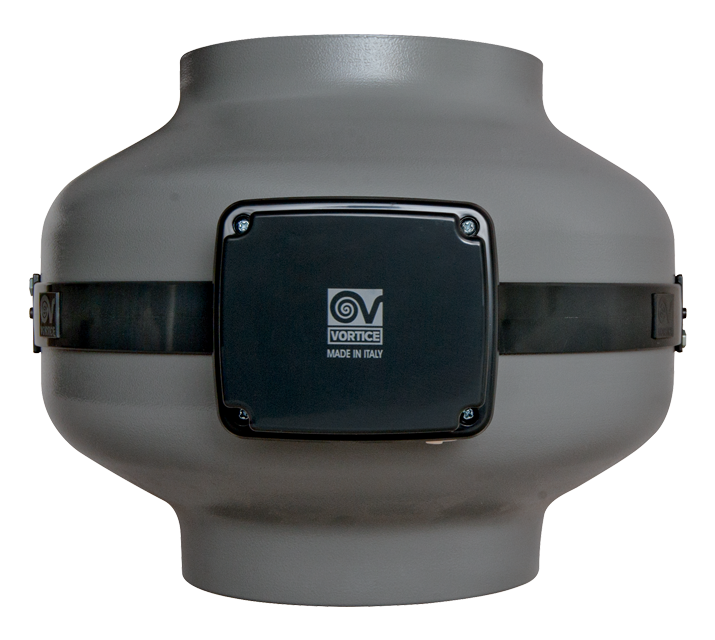

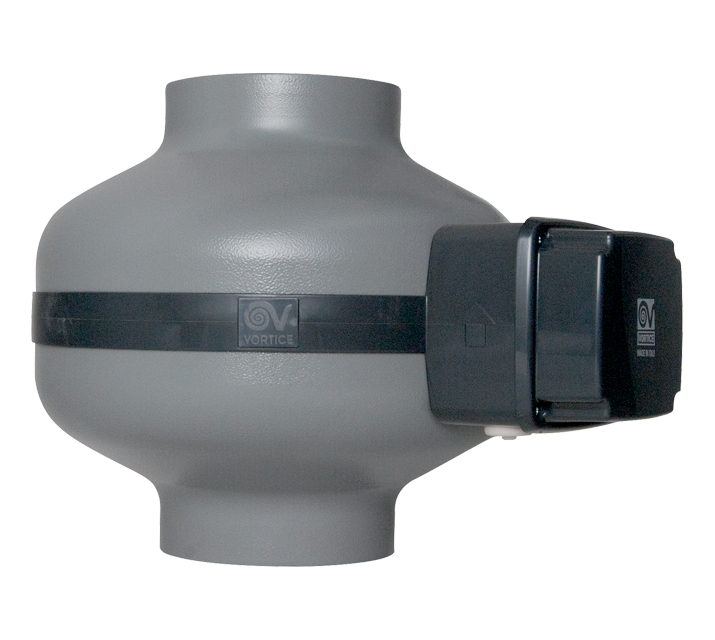

Description
• Pickled and phosphated steel housing with polyester powder-coated finish, resistant to the aggressive action of atmospheric agents
• Nominal diameter 315 mm.
• High efficiency electronically controlled (EC) commutator motor coupled to a backward curved impeller, guaranteeing a wide range of adjustments and significantly reduced energy consumption, per unit of performance delivered.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
• Zinc-coated steel brackets for wall mounting.
• Speed control with 0-10 V signal.
• Nominal diameter 315 mm.
• High efficiency electronically controlled (EC) commutator motor coupled to a backward curved impeller, guaranteeing a wide range of adjustments and significantly reduced energy consumption, per unit of performance delivered.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
• Zinc-coated steel brackets for wall mounting.
• Speed control with 0-10 V signal.
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classI°
-
IP44
-
Max absorbed current (A)1,27
-
Max absorbed power (W)148
-
Max ambient temperature for continuous operation (°C)50
-
Nominal diameter (mm)315
-
Voltage (V)230
-
Weight (Kg)6,9
-
Max airflow (l/s)500
-
Max airflow (m³/h)1800
-
Max pressure (mmH2O)51
-
Max pressure (Pa)500
-
RPM1935
-
Sound power Lw [dB(A)]71,2
-
Sound pressure at 3m calculated in free field Lp [dB(A)]50,7
-

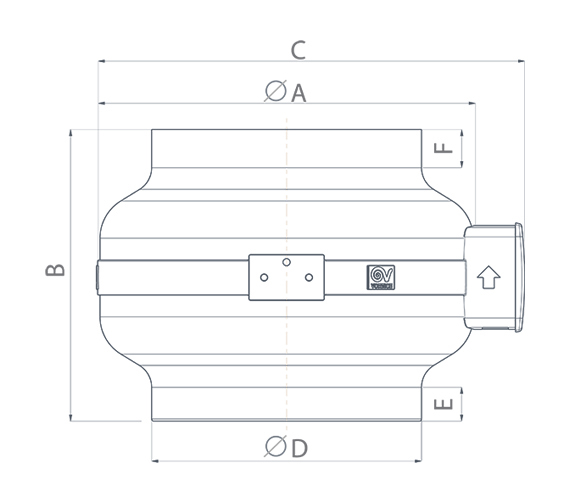

Size A (mm)ø 406
-
Size B (mm)362
-
Size C (mm)455
-
Size D (mm)ø 315
-
Size E (mm)35
-
Size F (mm)30
