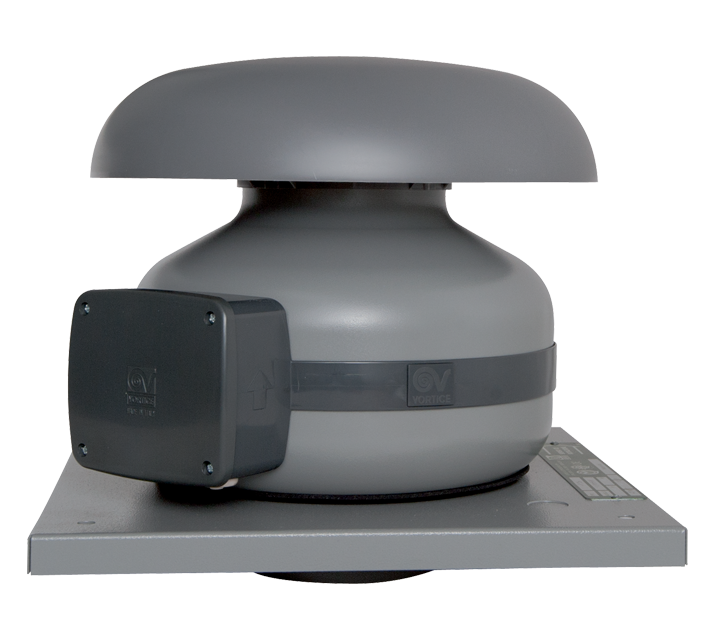

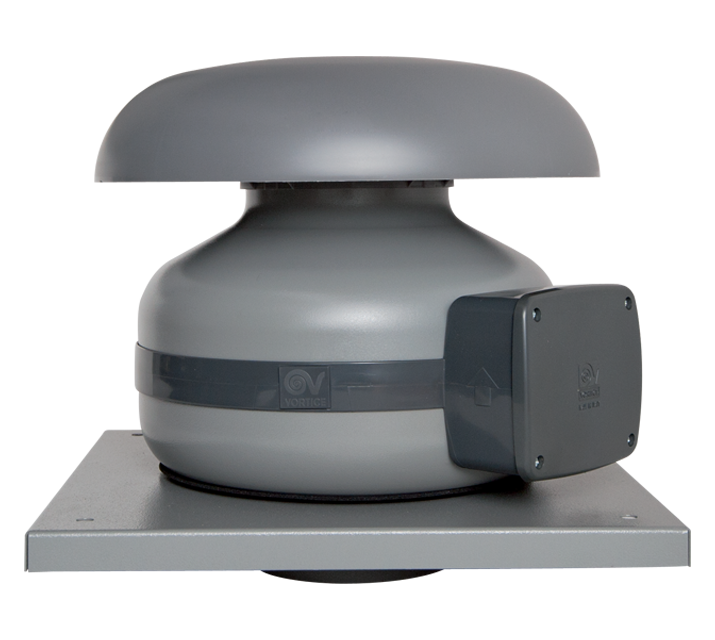

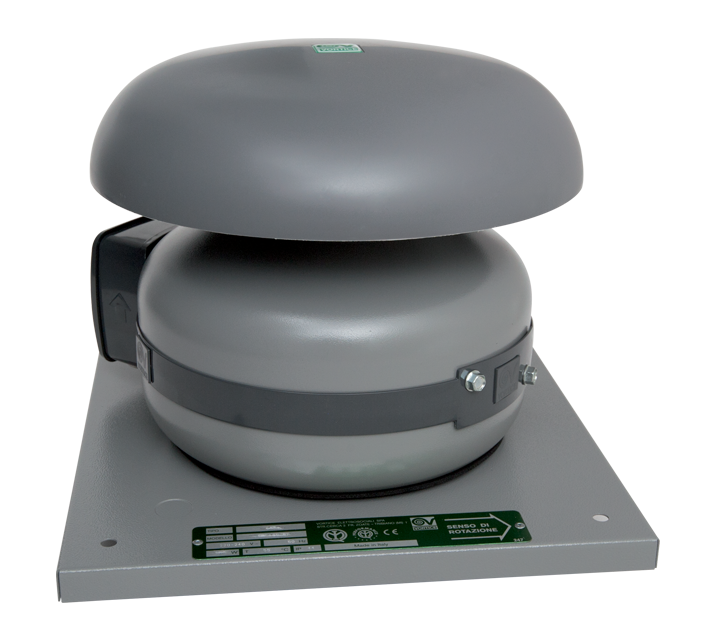

CA 200 MD RF EP

Description

• Pickled and phosphated steel housing/roof mounting plate with polyester powder-coated finish, resistant to the aggressive action of atmospheric agents
• Nominal diameter 200 mm
• 3 speed AC motor of external rotor type with thermal overload cutout and shaft turning in ball bearings, coupled to backward curved impeller
• Minimum air flow 350 m3/h
Maximum air flow 710 m3/h
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence
• Zinc-coated steel brackets for wall mounting

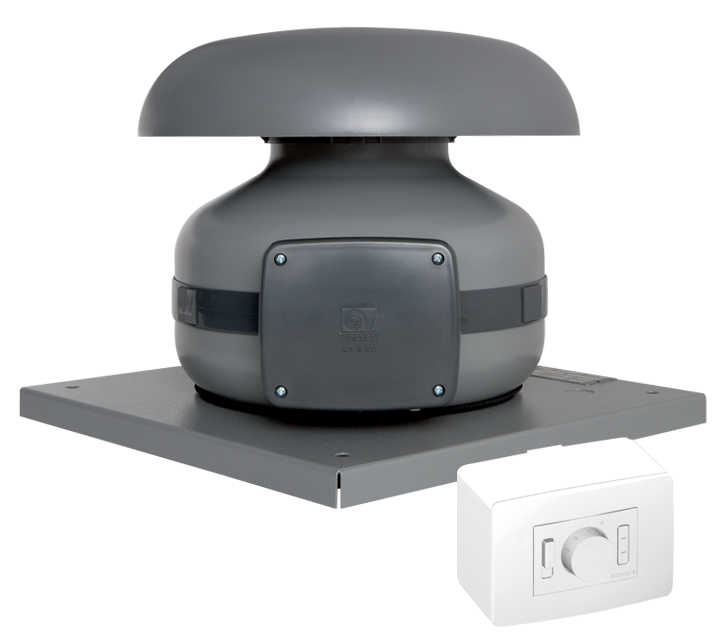

• Vortice speed controller included.

Read full descriptionClose description

Frequency (Hz)

50-60
Insulation class

II°
IP

44
Max absorbed current at Max speed (A)

0,42
Max absorbed current at Min speed (A)

0.33
Max absorbed Power at 60 Hz (W)

115
Max absorbed power at Max speed (W)

95
Max ambient temperature for continuous operation (°C)

55
Nominal diameter (mm)

200
Power absorbed at 1st speed (W)

33
Voltage (V)

220-240
Weight (Kg)

6,1

Airflow at 1st speed (l/s)

86.1
Airflow at 1st speed (m³/h)

310
Max airflow at Max speed (l/s)

194.7
Max airflow at Max speed (m³/h)

700
Max pressure at Max speed (mmH20)

44.9
Max pressure at Max speed (Pa)

440.6
Max RPM

2555
Min RPM

1156
Pressure at 1st speed (mmH20)

31.9
Pressure at 1st speed (Pa)

313.4
Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed

23
Sound pressure at 3m at Max speed Lp [dB (A)]

31.7

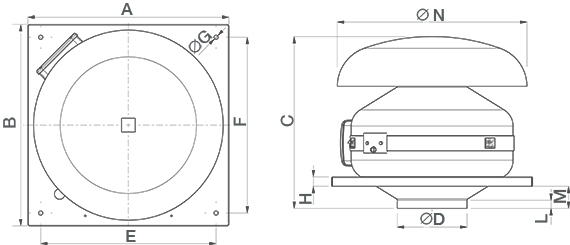

Size A (mm)

424
Size B (mm)

424
Size C (mm)

365
Size D (mm)

197
Size E (mm)

370
Size F (mm)

370
Size G (mm)

9
Size H (mm)

20
Size L (mm)

20
Size M (mm)

49
Size N (mm)

400
