VORT PRESS HABITAT 45/135 LL

Description

• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 100 mm.
• 2 speed motor with thermal overload cutout and shaft turning in ball bearings, coupled to a forward-bladed centrifugal impeller.
• Minimum air flow 52 m3/h
Maximum air flow 149 m3/h
• Double motor-fan enclosure, antivibration mounts and non-return damper combining to ensure extremely quiet operation.
• Removable and washable metal mesh filter (dishwasher safe).
• Closure with silicone diaphragm designed to prevent backdraughts when the appliance is off.
• Vertical outlet port supplied as standard with spigot positionable horizontally by means of diverter.
• Outlet port equipped with non-return damper.
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Vortice speed controller.

Read full descriptionClose description

Frequency (Hz)

50
Insulation class

II°
IP

X4
Max absorbed current at Max speed (A)

0,12
Max absorbed current at Min speed (A)

0,04
Max absorbed power at Max speed (W)

29
Max ambient temperature for continuous operation (°C)

25
Ø Discharge hole (mm)

97
Power absorbed at 1st speed (W)

4
Voltage (V)

230
Weight (Kg)

2,7
Airflow at 1st speed (l/s)

14,4

Airflow at 1st speed (m³/h)

52
Max airflow at Max speed (l/s)

41,4
Max airflow at Max speed (m³/h)

149
Max pressure at Max speed (mmH20)

23
Max pressure at Max speed (Pa)

225
Max RPM

1170
Min RPM

430
Pressure at 1st speed (mmH20)

5
Pressure at 1st speed (Pa)

49
Sound pressure at 1m at Max speed Lp [dB (A)]

48
Sound pressure at 1m at Min speed Lp [dB (A)]

26,5

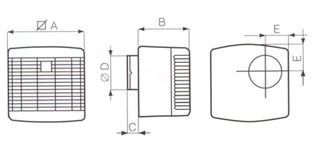

Size A (mm)

275
Size B (mm)

140
Size C (mm)

28
Size D (mm)

Ø 97
Size E (mm)

73
