Description

• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 100 mm.
• High efficiency electronically controlled (EC) commutator motor coupled to a centrifugal impeller, guaranteeing a wide range of adjustments and significantly reduced energy consumption, per unit of performance delivered.
• Double motor-fan enclosure, antivibration mounts and non-return damper combining to ensure extremely quiet operation.
• Removable and washable metal mesh filter (dishwasher safe).
• Closure with silicone diaphragm designed to prevent backdraughts when the appliance is off.
• Vertical outlet port supplied as standard with spigot positionable horizontally by means of diverter.
• Outlet port equipped with non-return damper.
• Vortice speed controller supplied as optional.
Read full descriptionClose description

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    II°
  • IP
    X4
  • Max absorbed current at Max speed (A)
    0,55
  • Max absorbed current at Min speed (A)
    0,15
  • Max absorbed power at Max speed (W)
    60
  • Max ambient temperature for continuous operation (°C)
    40
  • Nominal diameter (mm)
    100
  • Ø Discharge hole (mm)
    97
  • Power absorbed at 1st speed (W)
    11
  • Voltage (V)
    220-240
  • Weight (Kg)
    2,3
  • Airflow at 1st speed (l/s)
    35
  • Airflow at 1st speed (m³/h)
    125
  • Max airflow at Max speed (l/s)
    72
  • Max airflow at Max speed (m³/h)
    260
  • Max pressure at Max speed (mmH20)
    35
  • Max pressure at Max speed (Pa)
    343
  • Max RPM
    2380
  • Min RPM
    1200
  • Pressure at 1st speed (mmH20)
    11
  • Pressure at 1st speed (Pa)
    108
  • Sound pressure at 3m at Max speed calculated in free field Lp [dB(A)]
    55
  • Sound pressure at 3m at Min speed calculated in free field Lp [dB(A)]
    43

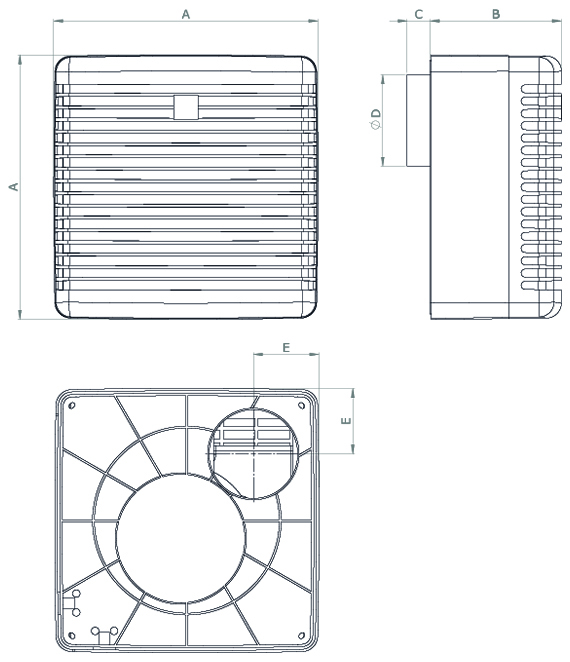

  • Size A (mm)
    280
  • Size B (mm)
    140
  • Size C (mm)
    28
  • Size D (mm)
    Ø 97
  • Size E (mm)
    70
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
