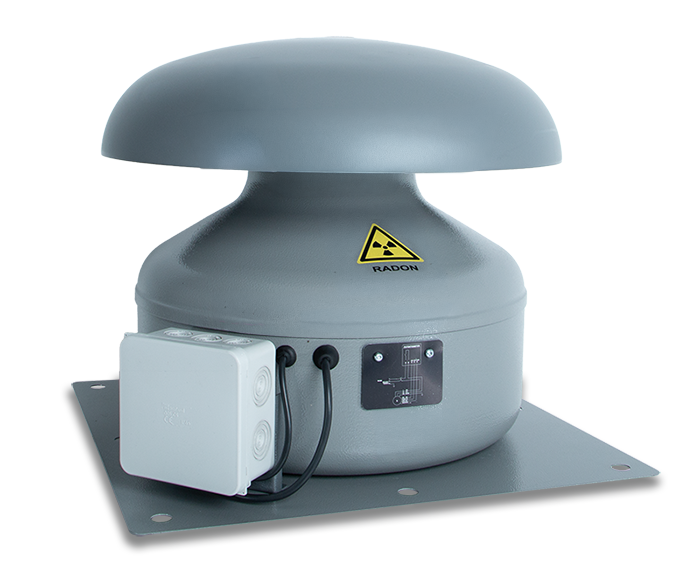

Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
  • IP
    45
  • Max absorbed current at 10V (A)
    1,20
  • Max absorbed current at 4V (A)
    0,22
  • Max absorbed current at 6V (A)
    0,49
  • Max absorbed current at 8V (A)
    0,95
  • Max absorbed power at 10V (W)
    160
  • Max absorbed power at 4V (W)
    24
  • Max absorbed power at 6V (W)
    60
  • Max absorbed power at 8V (W)
    130
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    150
  • Voltage (V)
    220-240
  • Weight (Kg)
    8
  • Breakout sound power at 10V Lw [dB (A)]
    79,4
  • Breakout sound power at 4V Lw [dB (A)]
    59,3
  • Breakout sound power at 6V Lw [dB (A)]
    61,5
  • Breakout sound power at 8V Lw [dB (A)]
    78,3
  • Breakout sound pressure at 3m at 10V Lp [dB (A)]
    58,9
  • Breakout sound pressure at 3m at 4V Lp [dB (A)]
    38,8
  • Breakout sound pressure at 3m at 6V Lp [dB (A)]
    41
  • Breakout sound pressure at 3m at 8V Lp [dB (A)]
    57,8
  • Max airflow at 10V (l/s)
    215
  • Max airflow at 10V (m³/h)
    775
  • Max airflow at 4V (l/s)
    106
  • Max airflow at 4V (m³/h)
    380
  • Max airflow at 6V (l/s)
    156
  • Max airflow at 6V (m³/h)
    560
  • Max airflow at 8V (l/s)
    199
  • Max airflow at 8V (m³/h)
    715
  • Max pressure at 10V (Pa)
    922
  • Max pressure at 4V (Pa)
    167
  • Max pressure at 6V (Pa)
    373
  • Max pressure at 10V (mmH2O)
    94
  • Max pressure at 4V (mmH2O)
    17
  • Max pressure at 6V (mmH2O)
    38
  • Max pressure at 8V (mmH2O)
    65
  • Max pressure at 8V (Pa)
    637
  • RPM at 10V
    3300
  • RPM at 4V
    1625
  • RPM at 6V
    2360
  • RPM at 8V
    3085
  • Sound power at extract side at 10V speed LWA [dB (A)]
    84,7
  • Sound power at extract side at 4V speed LWA [dB (A)]
    66,5
  • Sound power at extract side at 6V speed LWA [dB (A)]
    76,3
  • Sound power at extract side at 8V speed LWA [dB (A)]
    83
  • Sound pressure at extract side at 3m at 10V Lp [dB (A)]
    67,2
  • Sound pressure at extract side at 3m at 4V Lp [dB (A)]
    49
  • Sound pressure at extract side at 3m at 6V Lp [dB (A)]
    58,7
  • Sound pressure at extract side at 3m at 8V Lp [dB (A)]
    65,4
  • Size A (mm)
    420
  • Size B (mm)
    420
  • Size C (mm)
    355
  • Size D (mm)
    Ø 147
  • Size E (mm)
    37
  • Size F (mm)
    370
  • Size G (mm)
    370
  • Size H (mm)
    15,5
  • Size L (mm)
    Ø 400
