Description

Read full descriptionClose description

Technical Data Sheet

  • Absorbed current at 230 V (A)
    10,5
  • Absorbed current at 400 V (A)
    6,09
  • Frequency (Hz)
    50
  • IP
    55
  • Max absorbed power (W)
    5500
  • Motor class
    F
  • Operating temperature (°C)
    60
  • Voltage (V)
    400-690
  • Weight (Kg)
    101
  • Max airflow (m³/h)
    9010
  • RPM
    1440

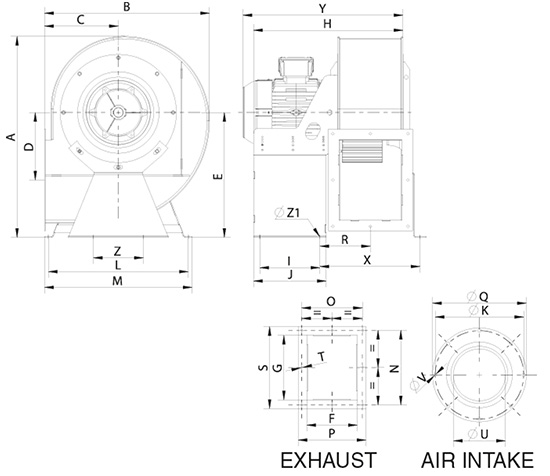

  • Dimension Q (mm)
    422
  • Dimension R (mm)
    184
  • Dimension U (mm)
    Ø 288
  • Dimension V (mm)
    Ø 11
  • Dimension Y (mm)
    667,75
  • Dimension Z (mm)
    200
  • Dimension Z1 (mm)
    Ø 13
  • DimensioneX (mm)
    400
  • Size A (mm)
    715
  • Size B (mm)
    587
  • Size C (mm)
    270
  • Size D (mm)
    242
  • Size E (mm)
    451
  • Size F (mm)
    224
  • Size G (mm)
    280
  • Size H (mm)
    564
  • Size I (mm)
    240
  • Size J (mm)
    290
  • Size K (mm)
    394,5
  • Size L (mm)
    449
  • Size M (mm)
    474
  • Size N (mm)
    318
  • Size O (mm)
    266
  • Size P (mm)
    300
  • Size S (mm)
    356
  • Size T (mm)
    Ø 11
Accessorio_2
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
