Code 30132

CRC-R 45/4 T

Description

• Nominal diameter: 450 mm.
• Casing made of plastic resin (PE), specifically designed for installation in corrosive environments, chemical and petrochemical industries, laboratories and gas cabins.
• 4-pole, three-phase AC motor, class F, with IP55 protection, 230/400V-50Hz power supply.
• Backward centrifugal impeller made of plastic resin (PP).
• Motor support made of laminated steel sheet with epoxy powder finish.
• Stainless steel nuts and bolts, for greater resistance over time against aggressive agents.
• Maximum continuous operating temperature: +50°C.
Read full descriptionClose description

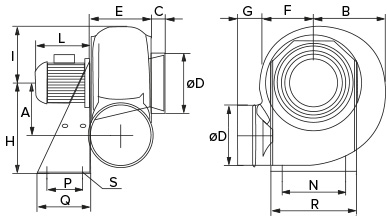

Technical Data Sheet

  • Dimensione Q (mm)
    250
  • Dimensione R (mm)
    410
  • Size A (mm)
    324
  • Size B (mm)
    400
  • Size C (mm)
    40
  • Size D (mm)
    Ø 355
  • Size E (mm)
    287
  • Size F (mm)
    295
  • Size G (mm)
    55
  • Size H (mm)
    550
  • Size I (mm)
    330
  • Size L (mm)
    290
  • Size N (mm)
    370
  • Size P (mm)
    170
  • Size S (mm)
    11
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
