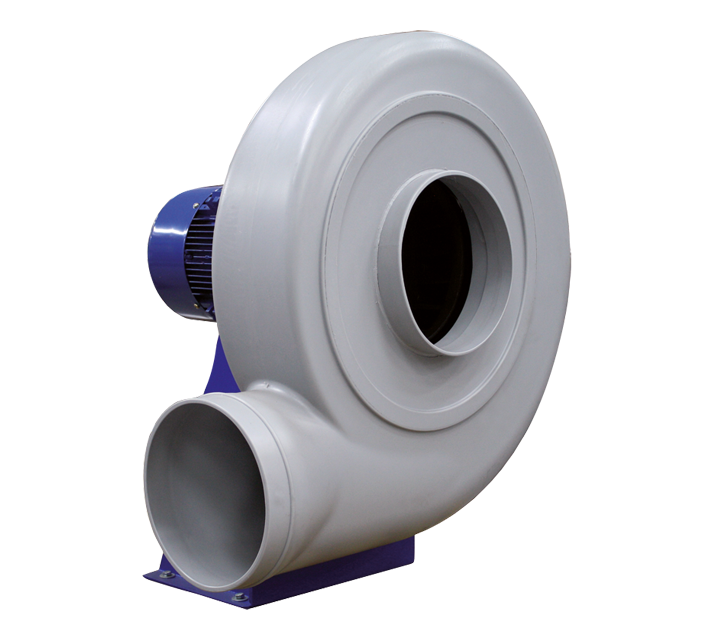

Code 30108

CRC-A 31/6 T

Description

• Nominal diameter: 310 mm.
• Casing made of plastic resin (PE), specifically designed for installation in corrosive environments, chemical and petrochemical industries, laboratories and gas cabins.
• 6-pole, three-phase AC motor, class F, with IP55 protection, 230/400V-50Hz power supply.
• Forward centrifugal impeller made of plastic resin (PP).
• Motor support made of laminated steel sheet with epoxy powder finish.
• Stainless steel nuts and bolts, for greater resistance over time against aggressive agents.
• Maximum continuous operating temperature: +50°C.
Read full descriptionClose description

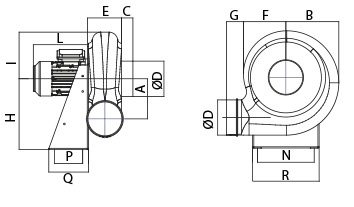

Technical Data Sheet

  • Dimensione Q (mm)
    230
  • Dimensione R (mm)
    355
  • Size A (mm)
    230
  • Size B (mm)
    310
  • Size C (mm)
    40
  • Size D (mm)
    Ø 200
  • Size E (mm)
    170
  • Size F (mm)
    220
  • Size G (mm)
    60
  • Size H (mm)
    410
  • Size I (mm)
    245
  • Size L (mm)
    210
  • Size N (mm)
    320
  • Size P (mm)
    150
