Description

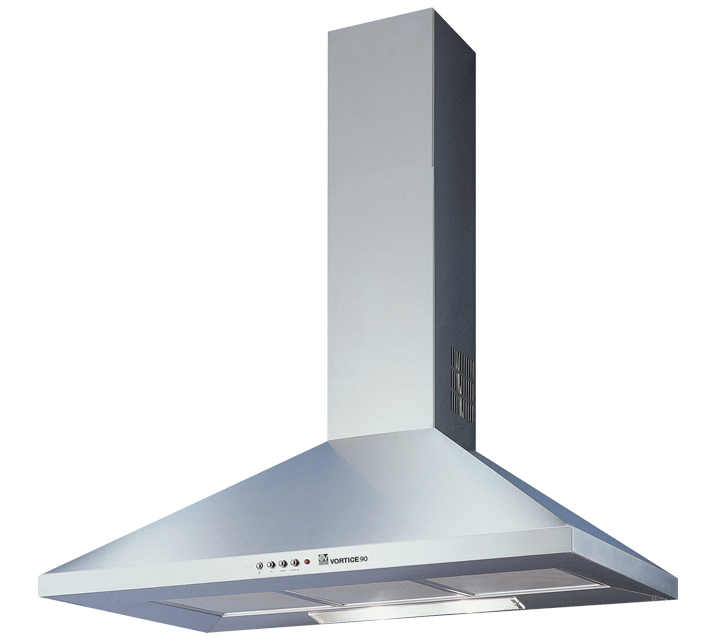

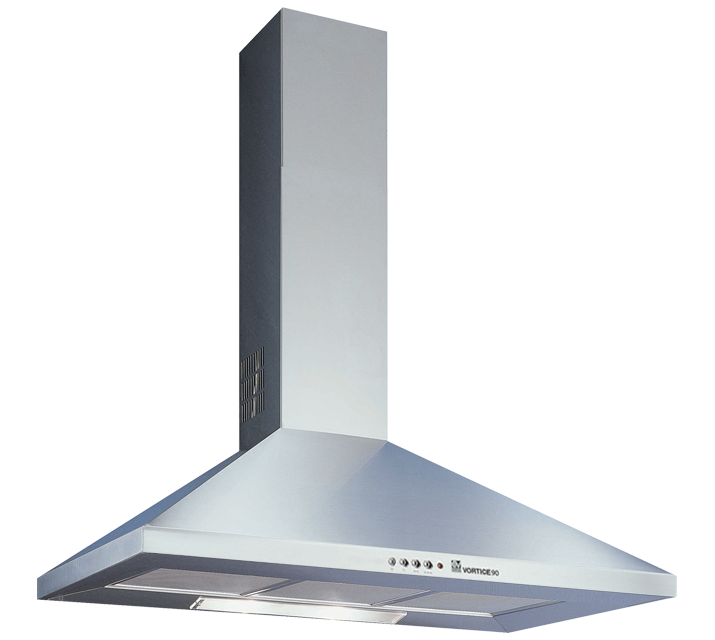

• Stainless steel frame structure. Extractor unit, motor mounting and fan impeller made of self-extinguishing plastic resin.
• Nominal diameter of extractor port: 150 mm.
• Hood width 90 cm.
• 3 speed AC motor with thermal overload protection, controlled from buttons on the fascia.
• Air flow between 310 m3/h and 480 m3/h.
• 2 x 40W incandescent lamp able to light up foods without altering their colour, and diffusers providing best possible illumination of the cook top.
• Exhaust flange for connection to duct, diameter 150 mm, with non-return damper preventing backdraught.
• 1 x exhaust port adapter for connection to 120 mm diameter ducts.
• 3 layer aluminium mesh grease filter (washable).
• Option of operation in air-recycle mode with activated carbon filter kit.
• Nominal diameter of extractor port: 150 mm.
• Hood width 90 cm.
• 3 speed AC motor with thermal overload protection, controlled from buttons on the fascia.
• Air flow between 310 m3/h and 480 m3/h.
• 2 x 40W incandescent lamp able to light up foods without altering their colour, and diffusers providing best possible illumination of the cook top.
• Exhaust flange for connection to duct, diameter 150 mm, with non-return damper preventing backdraught.
• 1 x exhaust port adapter for connection to 120 mm diameter ducts.
• 3 layer aluminium mesh grease filter (washable).
• Option of operation in air-recycle mode with activated carbon filter kit.
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
Max absorbed power (W)215
-
Voltage (V)230-240
-
Weight (Kg)13
-
Airflow at 1st speed (l/s)85
-
Airflow at 1st speed (m³/h)310
-
Delivery 3rd speed (l/s)135
-
Max airflow at Max speed (l/s)110
-
Max airflow at Max speed (m³/h)480
-
Max pressure at Max speed (mmH20)25
-
Max pressure at Max speed (Pa)245
-
Pressure at 1st speed (mmH20)21
-
Pressure at 1st speed (Pa)205
-
Sound pressure at 1,5 m at Max speed Lp [dB (A)]53
-
Sound pressure at 1,5 m at Min speed Lp [dB (A)]41
-

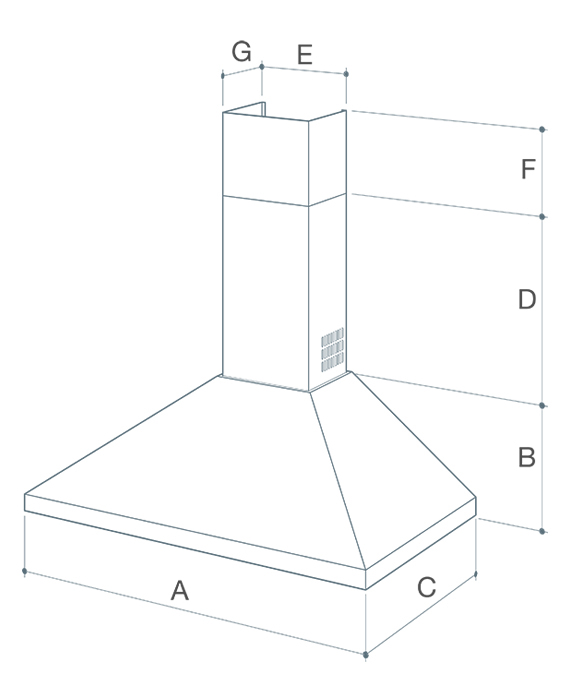

Size H (mm)280
-
Size L (mm)900
-
Size P (mm)500
