Code 12453

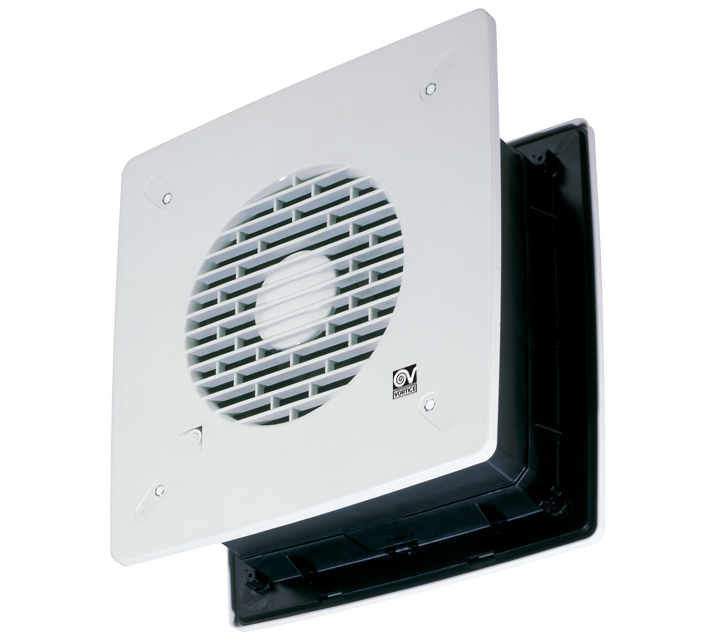

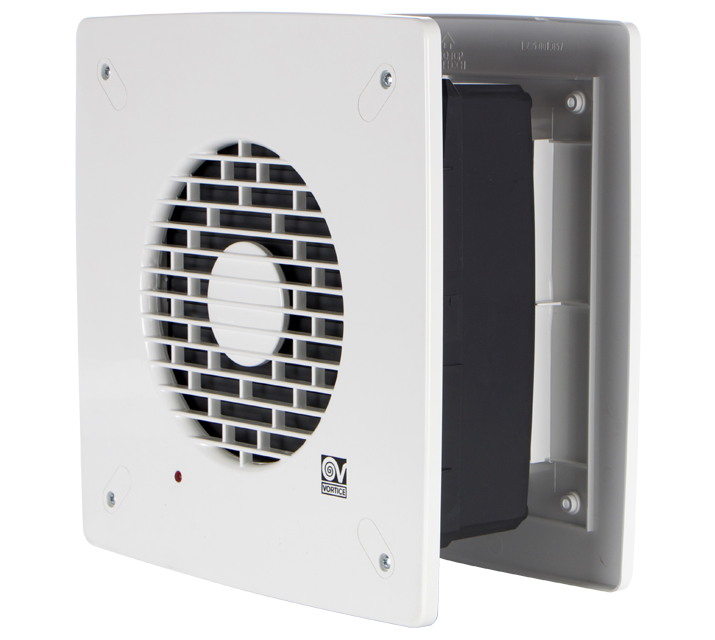

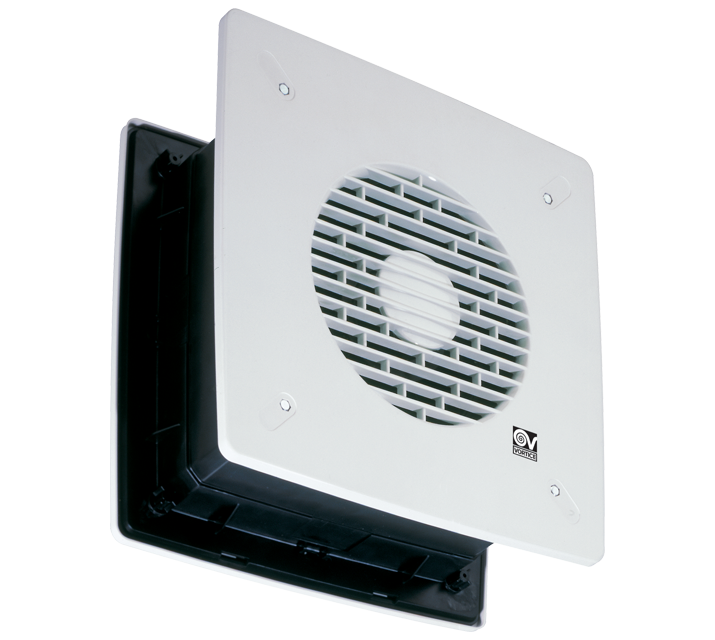

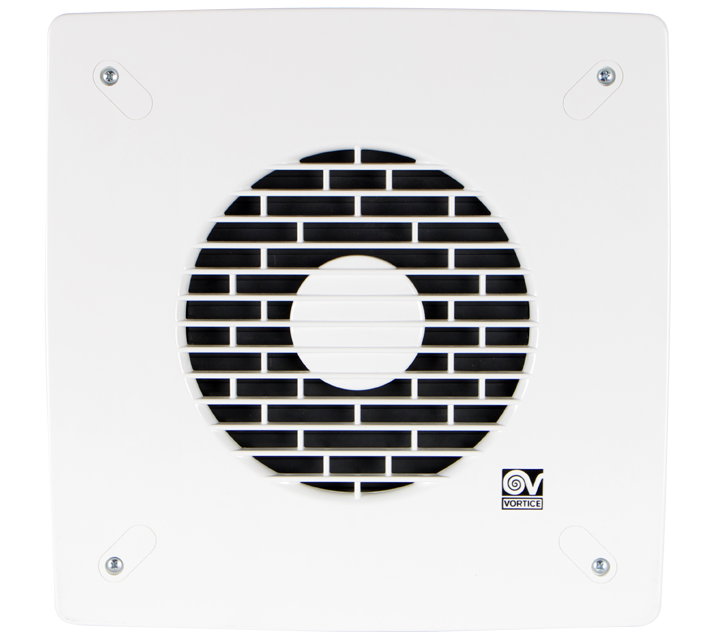

VORTICE 230/9" ARI

Description

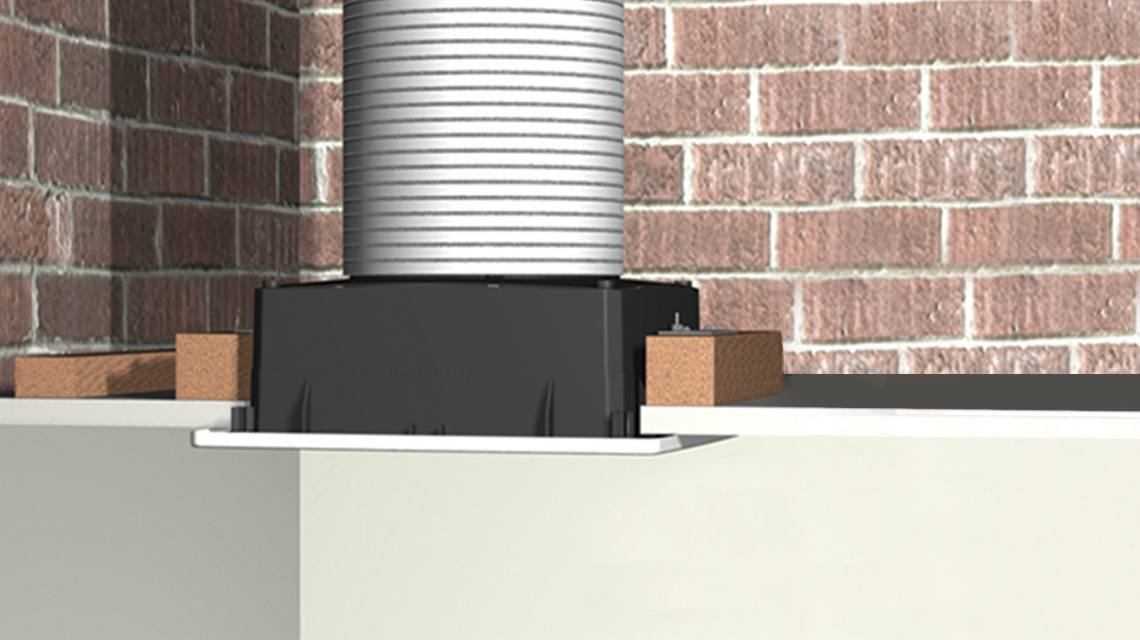

• Model designed for installation recessed into wall.
• Reversibility function (intake or extraction).
• Automatic shutter: prevents the entry of cold air and bad smells when the appliance is switched off.
• Material: UV resistant ABS plastic (prevents ageing caused by exposure to sunlight)
• Nominal diameter 230 mm.
• Motor protected against thermal overload, with shaft turning in self-lubricating bushings, coupled to screw type thermoplastic impeller with wing profile blades.
• IMQ SAFETY and IMQ PERFORMANCE certifications.
Read full descriptionClose description

Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Inlet
    Automatico
  • Insulation class
    II°
  • IP
    X4
  • Max absorbed current (A)
    0,13
  • Max absorbed power (W)
    26
  • Max absorbed Power at 60 Hz (W)
    26
  • Max ambient temperature for continuous operation (°C)
    50
  • Max room temperature for continuous operation at 60 Hz (°C)
    50
  • Ø Discharge hole (mm)
    230
  • Voltage (V)
    220-240
  • Weight (Kg)
    3,88
  • Max airflow - extract (l/s)
    125
  • Max airflow - extract (m3/h)
    450
  • Max airflow - intake (l/s)
    83,3
  • Max airflow - intake (m3/h)
    300
  • Max airflow (m³/h)
    450
  • RPM
    810
  • Rpm - exhaust
    810
  • Rpm - supply
    1080
  • Sound pressure Lp [dB (A)] at 3 m
    35,7
  • Ø hole through the wall
    335/340
  • Size A (mm)
    400
  • Size B (mm)
    10
  • Size C (mm)
    11
  • Size D (mm)
    180
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
