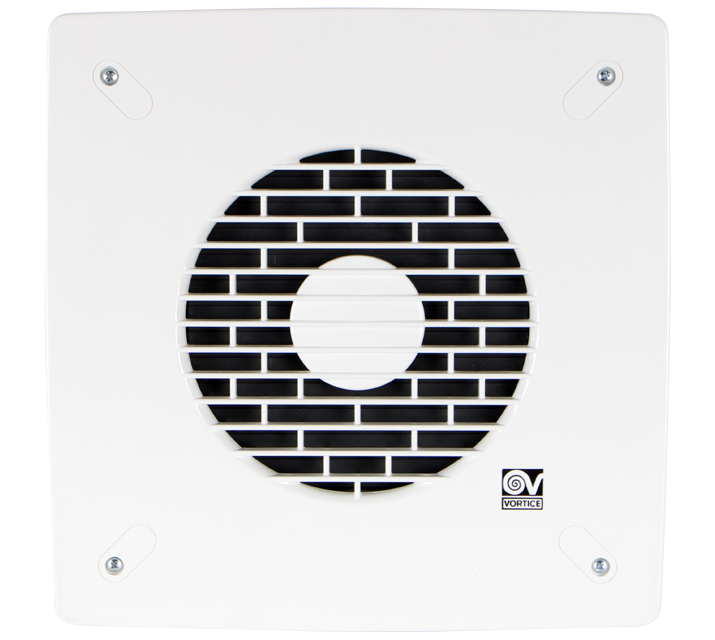

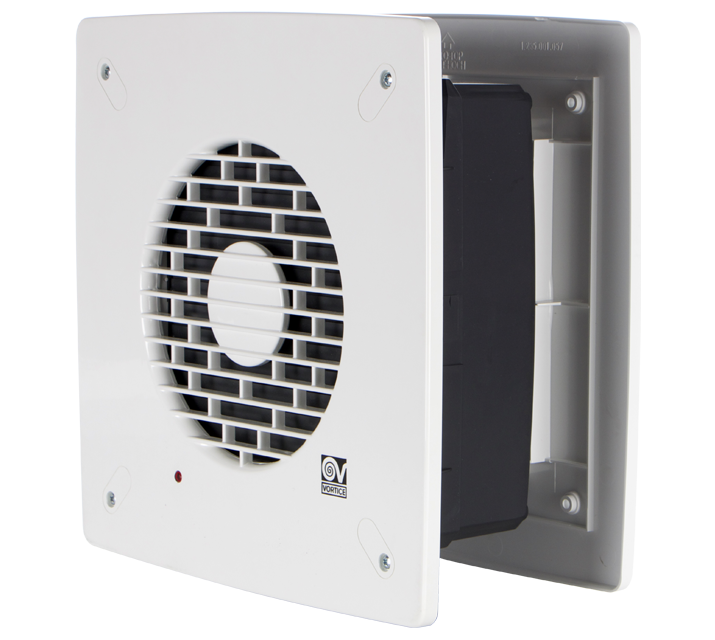

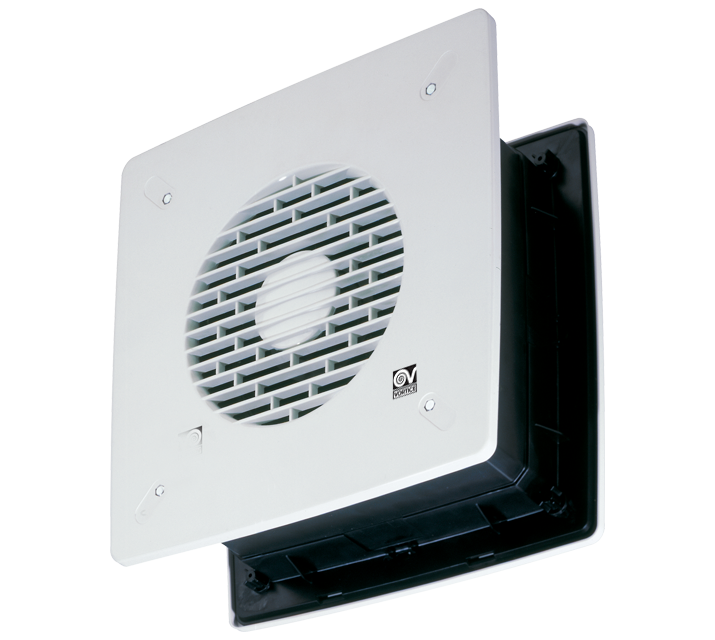

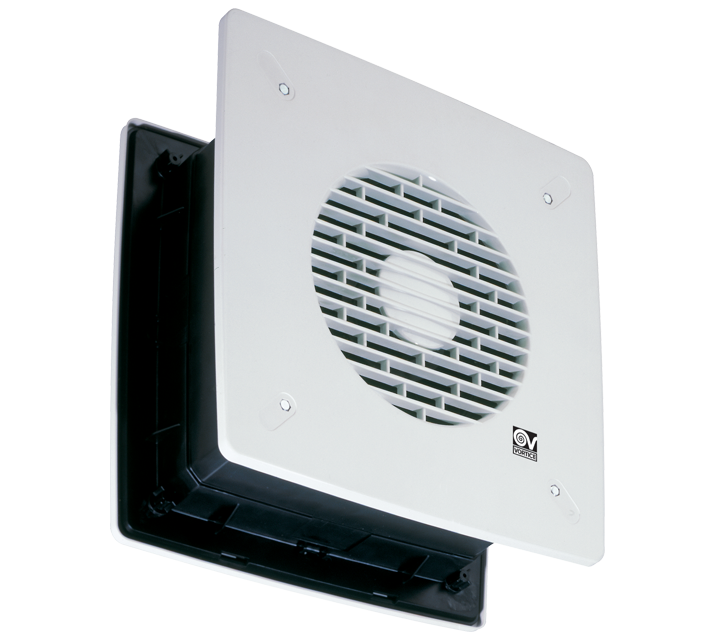

Description

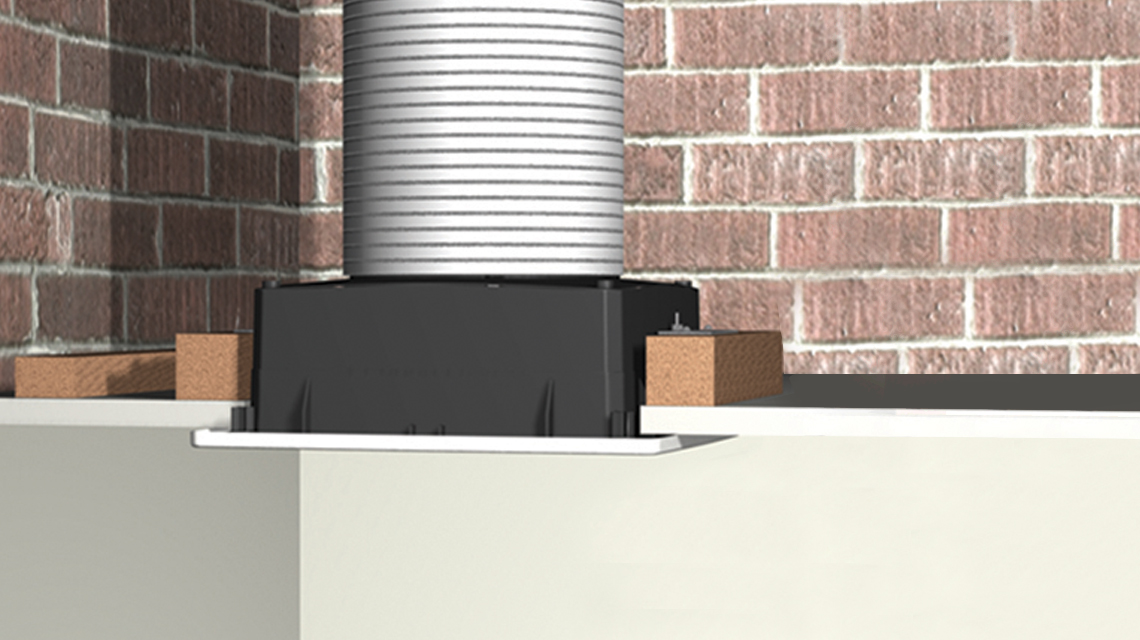

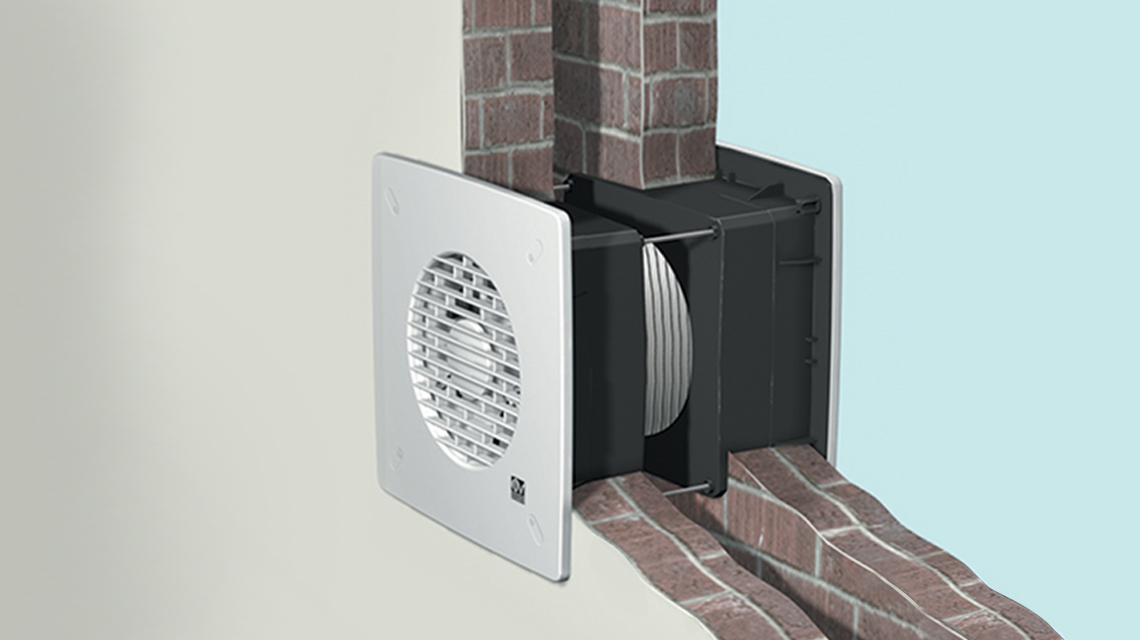

• Model designed for flush wall-mounted installation.
• Reversibility function (intake or extraction).
• Automatic shutter: prevents the entry of cold air and bad smells when the appliance is switched off.
• Material: UV resistant ABS plastic (prevents ageing caused by exposure to sunlight)
• Nominal diameter 300 mm.
• Motor protected against thermal overload, with shaft turning in ball bearings, coupled to screw type thermoplastic impeller with wing profile blades.
• Reversibility function (intake or extraction).
• Automatic shutter: prevents the entry of cold air and bad smells when the appliance is switched off.
• Material: UV resistant ABS plastic (prevents ageing caused by exposure to sunlight)
• Nominal diameter 300 mm.
• Motor protected against thermal overload, with shaft turning in ball bearings, coupled to screw type thermoplastic impeller with wing profile blades.
Technical Data Sheet
-
Frequency (Hz)50-60
-
InletAutomatico
-
Insulation classII°
-
IPX4
-
Max absorbed current (A)0,41
-
Max absorbed power (W)75
-
Max absorbed Power at 60 Hz (W)90
-
Max ambient temperature for continuous operation (°C)50
-
Max room temperature for continuous operation at 60 Hz (°C)40
-
Ø Discharge hole (mm)435 ÷ 440
-
Voltage (V)220-240
-
Weight (Kg)7,20
-
Max airflow - extract (l/s)486,1
-
Max airflow - extract (m3/h)1750
-
Max airflow - intake (l/s)277,7
-
Max airflow - intake (m3/h)1000
-
Max airflow (m³/h)1750
-
RPM1230
-
Rpm - exhaust1230
-
Rpm - supply1310
-
Sound pressure Lp [dB (A)] at 3 m53,5
-
Ø hole through the wall435/440
-
Size A (mm)495
-
Size B (mm)495
-
Size C (mm)11,5
-
Size D (mm)210
