Description

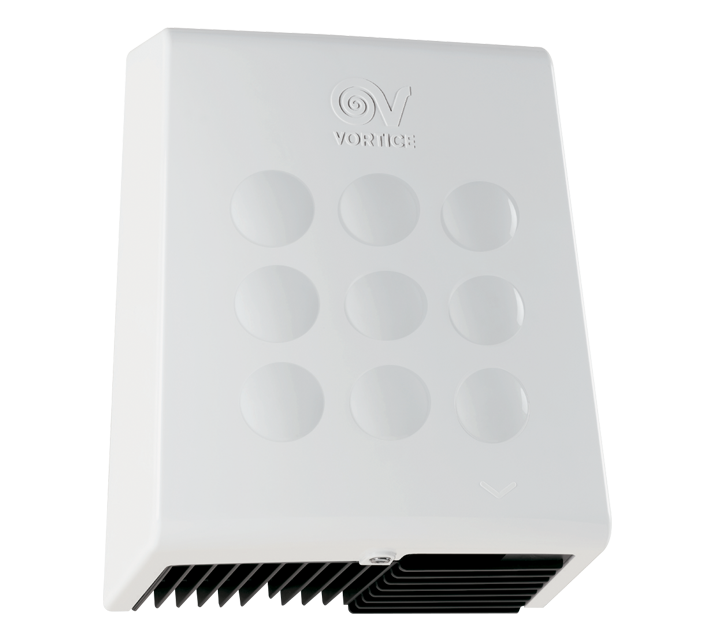

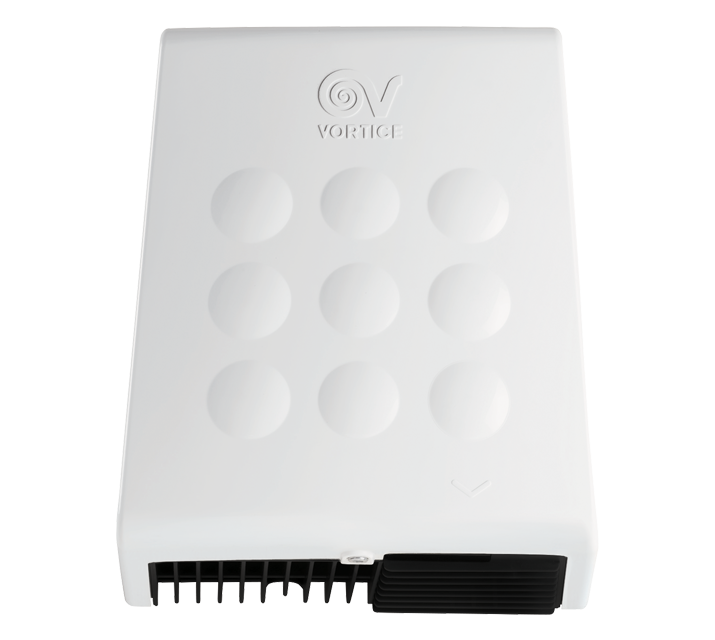

• Front cover made of UV-resistant plastic rated V0, colour white.
• Wall-mounting flange incorporating warm air outlet grille of moulded plastic (PP).
• EC motor with thermal overload cutout and shaft turning in ball bearings, coupled to forward-bladed centrifugal impeller.
• Heating element protected by 2 devices: thermal fuse and resettable thermal overload limiter.
• Air flow 170 m3/h.
• Dryer operated automatically by an infrared device with activation distance of up to 35 cm, selected by means of an internal trimmer adjustable at the moment of installation. Appliance shuts down automatically in the event of the air inlet grille or the warm air outlet nozzle being obstructed intentionally or accidentally.
• Dust filter.
• IMQ safety certification.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Absorbed Current max (A)
    9
  • Absorbed Power max (W)
    2000
  • Frequency (Hz)
    50/60
  • Insulation Class
    II°
  • IP
    X4
  • Motor Power (W)
    65
  • Shock resistance rating (IK)
    09
  • Voltage (V)
    220-240
  • Weight (Kg)
    2,6
  • Delivery max (l/s)
    47
  • Delivery max (m³/h)
    170
  • Power in stand-by mode (W)
    0,4550
  • Sound pressure level Lp [dB (A)] 1m
    61,4
  • Size A (mm)
    253
  • Size B (mm)
    319
  • Size C (mm)
    137
  • Size D (mm)
    220
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
