Description
• Die-cast aluminium end sections with painted finish, colour black.
• Casing sections: pressed steel with painted finish, colour charcoal grey.
• Grille fashioned with stainless steel rods
• Pressed steel mounting bracket with painted finish.

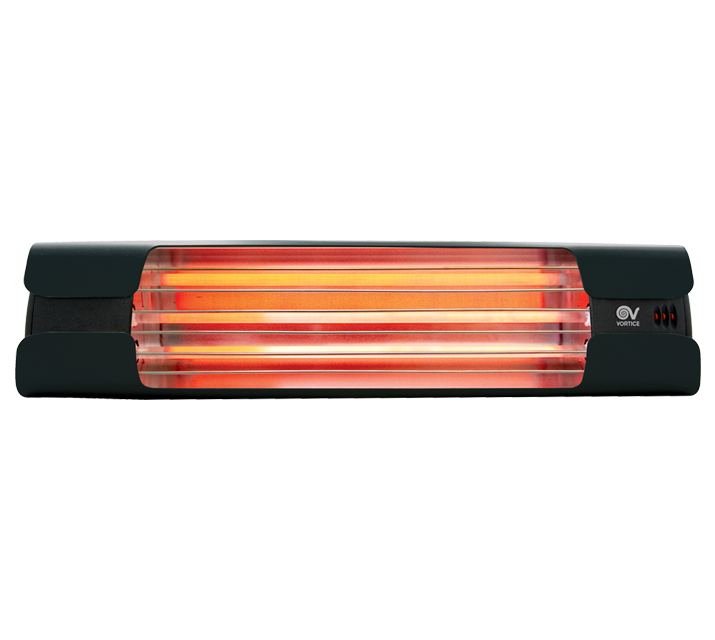

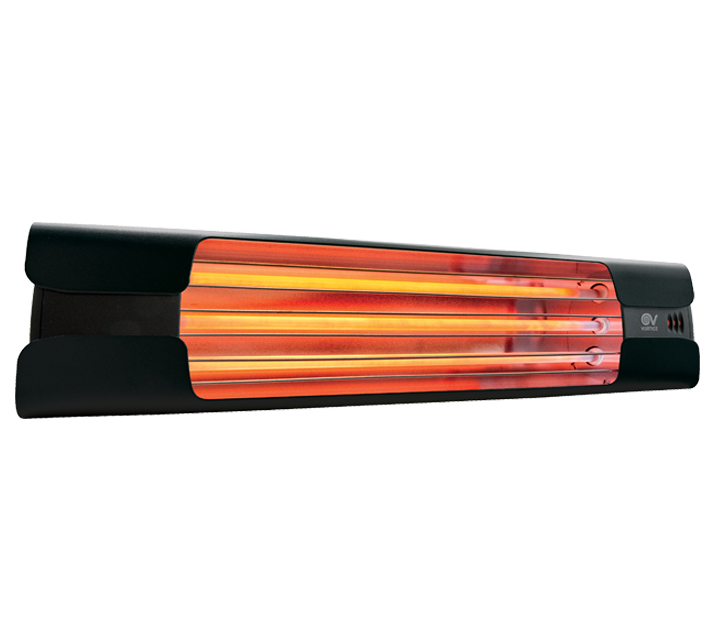

• 3 x infrared bar, each rated 600 W. The single bars can be controlled from remote switches, by-passing the internal selector and making the necessary connections to the terminals provided.
• Pull cord switches for on/off control and selection of the 3 heat output settings (600/1200/1800 W).

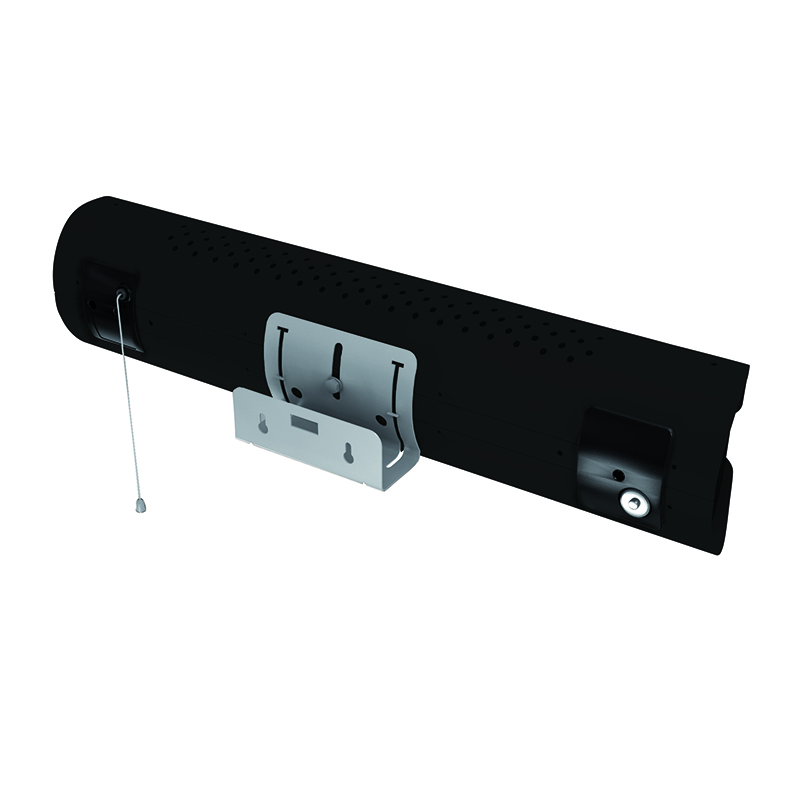

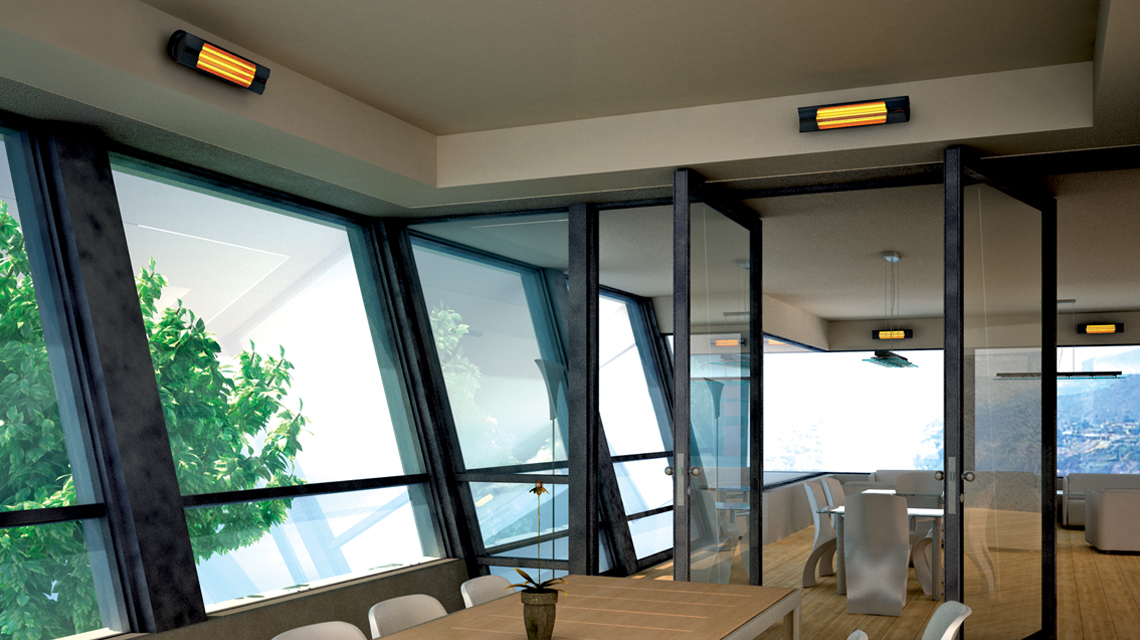

• Wall-mounted installation using bracket provided as standard and adjustable through 20° so that the infrared rays can be directed at the point where heat is required; the fixture is made secure with a safety screw.
• Facility of connecting two bars in series or in parallel by means of a special kit comprising brackets and junction box (optional, code 22496)
• Casing sections: pressed steel with painted finish, colour charcoal grey.
• Grille fashioned with stainless steel rods
• Pressed steel mounting bracket with painted finish.
• 3 x infrared bar, each rated 600 W. The single bars can be controlled from remote switches, by-passing the internal selector and making the necessary connections to the terminals provided.
• Pull cord switches for on/off control and selection of the 3 heat output settings (600/1200/1800 W).
• Wall-mounted installation using bracket provided as standard and adjustable through 20° so that the infrared rays can be directed at the point where heat is required; the fixture is made secure with a safety screw.
• Facility of connecting two bars in series or in parallel by means of a special kit comprising brackets and junction box (optional, code 22496)
Certifications
-
IMQ
-
Download
CE
Technical Data Sheet
-
Absorbed Current max (A)7,8
-
Absorbed Power max (W)1800
-
Frequency (Hz)50/60
-
Insulation ClassI°
-
IPX4
-
Voltage (V)230
-
Weight (Kg)2,4
-
Apparecchi ad accumulo con fiamma pilotano
-
Apparecchi con modalità stand-byno
-
Consumo ausiliario di energia elettrica alla potenza termica minima - elmin (kW)0
-
Consumo ausiliario di energia elettrica alla potenza termica nominale - elmax (kW)0
-
Consumo ausiliario di energia elettrica in modo stand by - elSB (kW)0
-
Controllo con limitazione del tempo di funzionamentoNO
-
Controllo con opzione a distanzaSI
-
Controllo con termometro a globo neroNO
-
Controllo della temperatura ambiente con rilevamento di finestre aperteNO
-
Controllo della temperatura ambiente con rilevamento di presenzaSI
-
Controllo di avviamento adattabileNO
-
Efficienza energetica stagionale - ?s (%)35
-
Potenza termica a due o più fasi manuali senza controllo della temperatura ambienteSI
-
Potenza termica a fase unica senza controllo della temperatura ambienteNO
-
Potenza termica con controllo della temperatura ambiente tramite termostato meccanicoNO
-
Potenza termica con controllo elettronico della temperatura ambienteNO
-
Potenza termica con controllo elettronico della temperatura ambiente e temporizzatore giornalieroNO
-
Potenza termica con controllo elettronico della temperatura ambiente e temporizzatore settimanaleNO
-
Potenza termica continua - Pmax,c (kW)1,8
-
Potenza termica minima - Pmin (kW)0,6
-
Potenza termica nominale - Pnom (kW)1,8
-
Power setting 1 (W)600
-
Power setting 2 (W)1200
-
Power setting 3 (W)1800
-

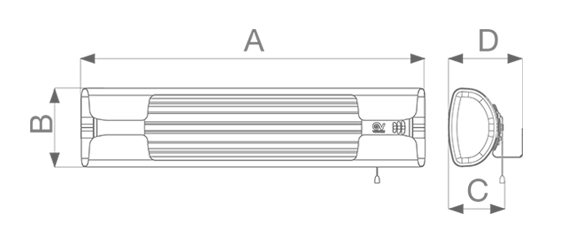

Size A (mm)570
-
Size B (mm)132
-
Size C (mm)84
-
Size D (mm)124
