Description

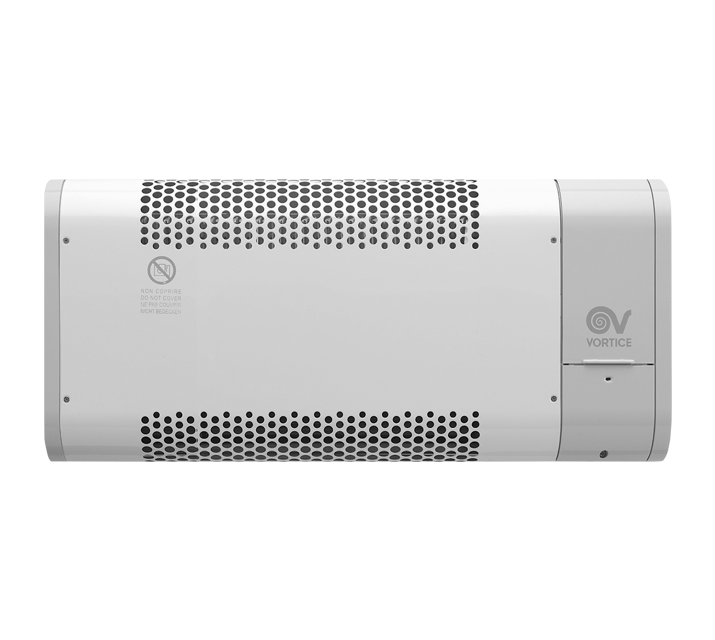

• Front and rear panels, top and bottom grilles made of steel with scratch-resistant paint finish, colour grey.
• Ends and section housing controls made of self-extinguishing plastic rated V0, colour grey.
• Tangential fan unit.
• Metal-clad heating element with aluminium heat sink, rated 500/1000 W.
• Thermal overload cutout with manual reset.

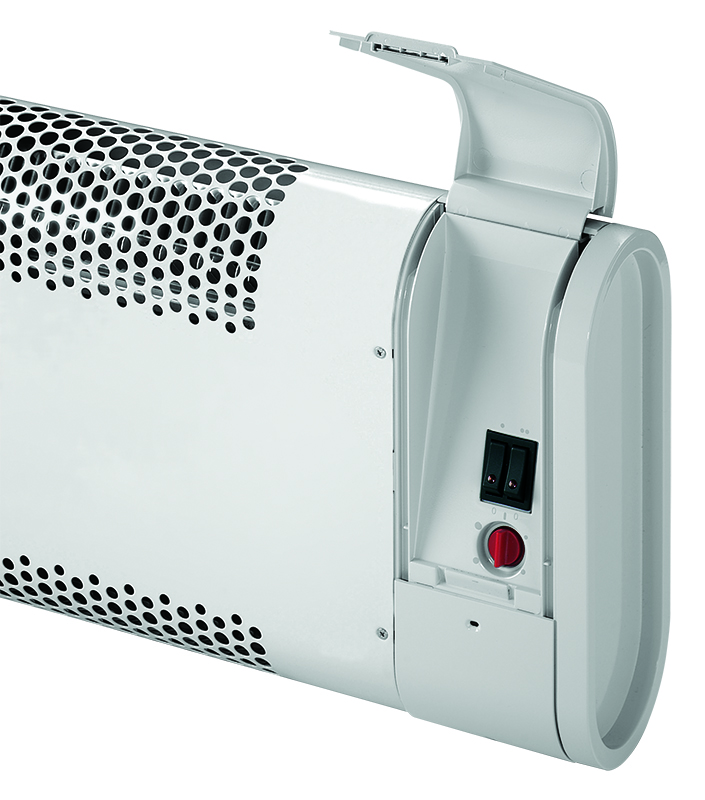

• Luminous switches for on/off control and selection of heat output settings.
• Manually adjustable room thermostat with antifreeze function guaranteeing automatic activation of the heater whenever ambient temperature drops below 5 °C.
• The product can be connected to an external programmable thermostat
• IMQ safety certification.
Read full descriptionClose description

Certifications

  • IMQ IMQ
  • CE CE

Technical Data Sheet

  • Absorbed Current max (A)
    4,3
  • Absorbed Power max (W)
    1000
  • Frequency (Hz)
    50
  • Insulation Class
  • IP
    X4
  • Voltage (V)
    230
  • Weight (Kg)
    3,7
  • Size A (mm)
    503
  • Size B (mm)
    258
  • Size C (mm)
    109
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
