Certifications

Energy label Energy label

Technical Data Sheet

  • Filter class
    ISOCoarse 65%
  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • Max absorbed current (A)
    0,07
  • Max absorbed power (W)
    7
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    160
  • Voltage (V)
    220-240
  • Weight (Kg)
    3,30
  • Airflow (m3/h) - Boost mode
    60
  • Airflow (m3/h) - High Performance mode
    45
  • Airflow (m3/h) - Night mode
    10
  • Airflow (m3/h) - Performance mode
    35
  • Airflow (m3/h) - Quiet mode
    25
  • Max thermal efficiency (%)
    90
  • Pressure (mmH2O) – Boost mode
    12,2
  • Pressure (mmH2O) – High Performance mode
    10,2
  • Pressure (mmH2O) – Night mode
    1,5
  • Pressure (mmH2O) – Performance mode
    6,1
  • Pressure (mmH2O) – Quiet mode
    4,1
  • Pressure (Pa) – Boost mode
    120
  • Pressure (Pa) – High Performance mode
    100
  • Pressure (Pa) – Night mode
    15
  • Pressure (Pa) – Performance mode
    60
  • Pressure (Pa) – Quiet mode
    40
  • Sound power LWA [dB (A)] – Boost mode
    62,1
  • Sound power LWA [dB(A)] – High Performance mode
    56,5
  • Sound power LWA [dB(A)] – Night mode
    31,8
  • Sound power LWA [dB(A)] – Performance mode
    51,5
  • Sound power LWA [dB(A)] – Quiet mode
    44,6
  • Sound pressure at 3m Lp [dB (A)] - Night mode
    14,3
  • Sound pressure at 3m Lp [dB (A)] – Quiet mode
    27,1
  • Sound pressure at 3m Lp [dB (A)] 3m – Boost mode
    44,6
  • Sound pressure at 3m Lp [dB (A)] 3m – High Performance mode
    39
  • Sound pressure at 3m Lp [dB (A)] 3m – Performance mode
    33,9


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

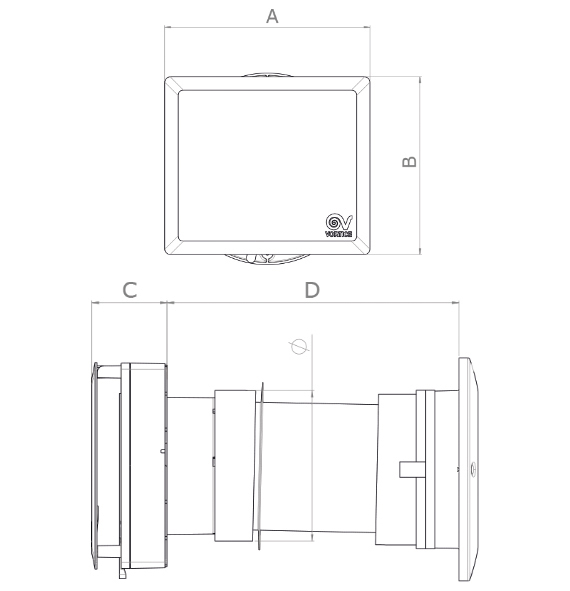

  • Ø (mm)
    146
  • Size A (mm)
    231
  • Size B (mm)
    200
  • Size C (mm)
    73
  • Size D (mm)
    283
quota
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.

Accessories

Discover accessories related to the product

C TEMP
C TEMP
Environmental sensor for temperature control.
C HCS
C HCS
Environmental sensor for relative humidity control.
TUBO PVC D.160 L=700 (HRW 20)
TUBO PVC D.160 L=700 (HRW 20)
PVC hose for wall mounting on 400 mm up to 700 mm walls
KIT FTR ISO COARSE 65% (G3) D.127X10
KIT FTR ISO COARSE 65% (G3) D.127X10
MWS
MWS
Outside stainless steel windshield panel.
RGR
RGR
Rubber exterior grill to be installed from inside, without using scaffolding.
WA
WA
90 ° round / square adapter for intake and discharge through the window jamb.
WSG-INOX
WSG-INOX
Rectangular stainless steel grille for WA kit.
WSG-W
WSG-W
Rectangular stainless steel powder coated grille, white RAL 9003, for WA kit.
