Technical Data Sheet

  • Absorbed current at 230 V (A)
    2,08
  • Frequency (Hz)
    50/60
  • IP
    44
  • Max absorbed power (W)
    470
  • Max ambient temperature for continuous operation (°C)
    50
  • Min continuous operation room temperature (°C)
    -25
  • Motor class
    B
  • Voltage (V)
    230
  • Weight (Kg)
    125
  • Max airflow (m³/h)
    1200
  • RPM
    1551
  • Sound pressure Lp [dB (A)] at 3 m
    41
  • Surface up to (m2)
    126


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

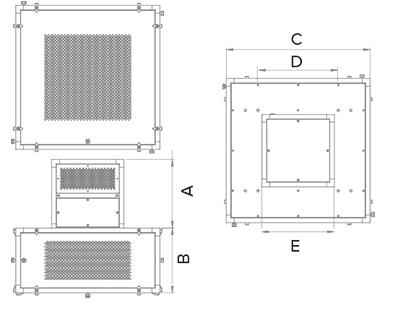

  • Size A (mm)
    412
  • Size B (mm)
    1115
  • Size C (mm)
    510
quota

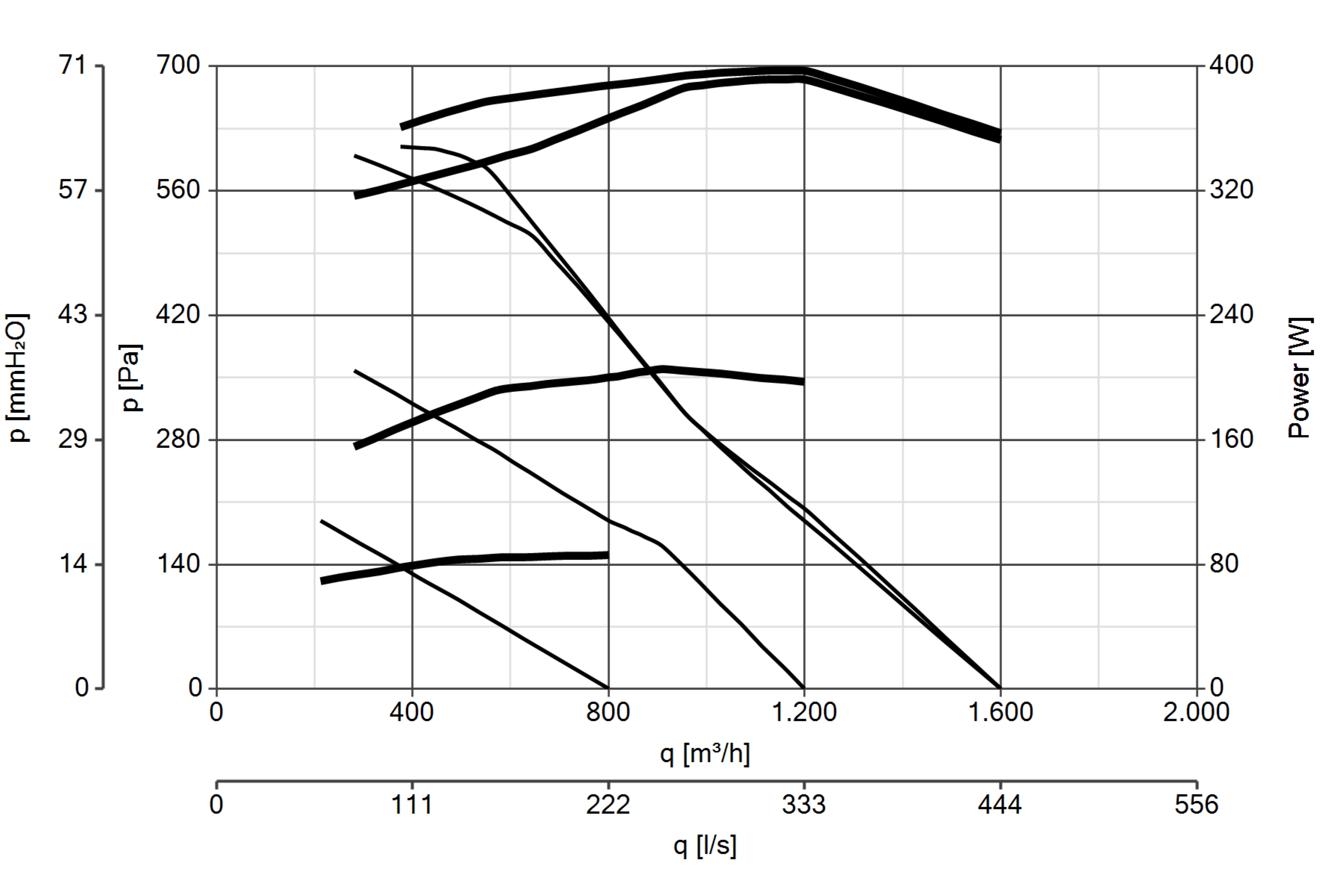

Curva_JPG_25094-Curve_per_Catalogo
