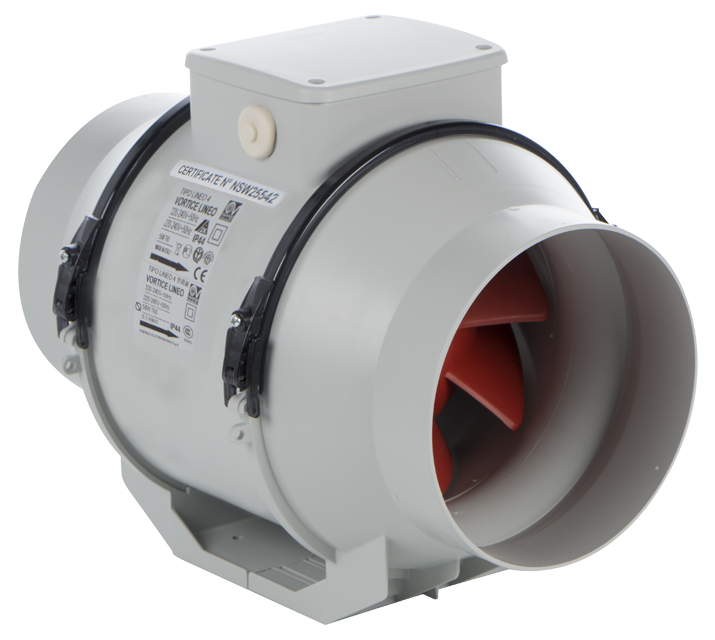

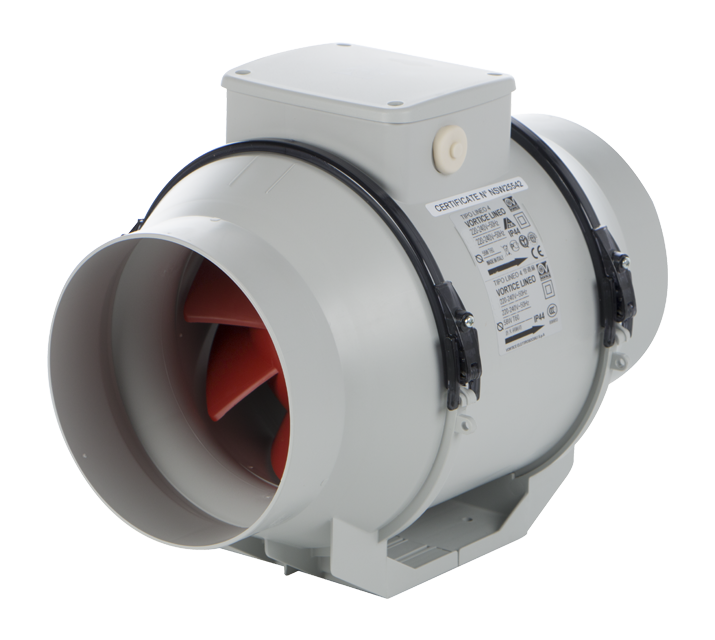

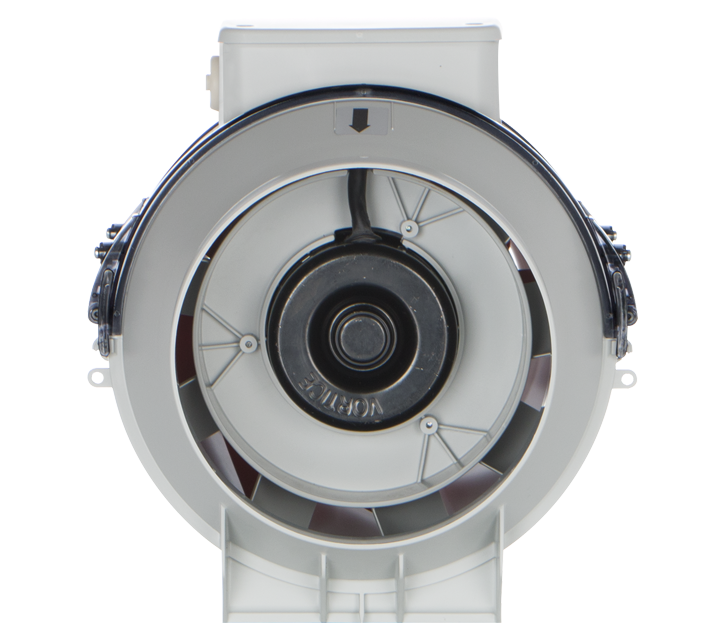

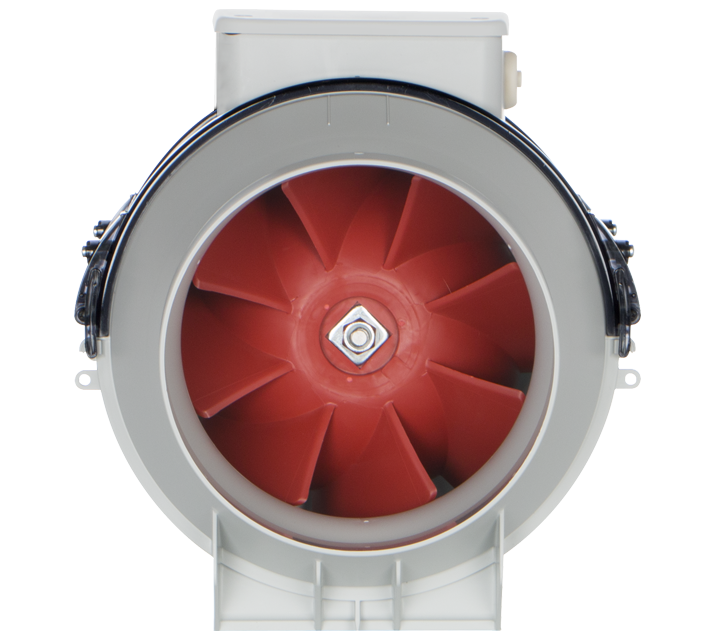

KIT VORTICE LINEO 150 V0

Description

For domestic and commercial installations

•All in one supply.

•Easy to install.

•Compact overall dimensions.

•Third party certified silent running performances.

•Self-extinguishing V0 plastic.

•Two speeds ball-bearing motor.

COMPOSITION OF KIT LINEO

•Mixed flow duct fan Lineo.

•Flexible aluminium ducting, 4m.

•Fixed grille.

•Gravity shutter.

•Adhesive aluminium tape.

Read full descriptionClose description

Frequency (Hz)

50
Insulation class

I°
Max absorbed current at Max speed (A)

0,26
Max absorbed current at Min speed (A)

0,18
Max absorbed power (W)

58
Max absorbed power at Max speed (W)

58
Max ambient temperature for continuous operation (°C)

60
Power absorbed at 1st speed (W)

40
Voltage (V)

220-240
Weight (Kg)

2,4
Airflow at 1st speed (l/s)

106,9

Airflow at 1st speed (m³/h)

385
Max airflow at Max speed (l/s)

152,8
Max airflow at Max speed (m³/h)

550
Max pressure at Max speed (mmH20)

27
Max pressure at Max speed (Pa)

264,9
Max RPM

2100
Min RPM

1580
Pressure at 1st speed (mmH20)

21
Pressure at 1st speed (Pa)

206
Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed

41,4
Sound pressure at 3m at Max speed Lp [dB (A)]

50,5

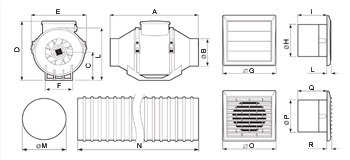

Size A (mm)

294
Size B (mm)

146
Size C (mm)

112,5
Size D (mm)

234
Size E (mm)

214,5
Size F (mm)

110
Size L (mm)

212
