Code 15920

TORRETTA TRT 210 ED 6P

Centrifugal roof fans with horizontal discharge for hot fumes extraction

Description

• Centrifugal roof fan suitable for extracting hot fumes at up to 400 °C for 120 minutes.
• Base manufactured from phosphated pressed steel, epoxy powder coated with hammered effect finish, guaranteeing long-term resistance to atmospheric agents.
• Aerodynamically contoured inlet port for optimum performance, fashioned as a single unit with the base and gauged to optimize air flow.
• Motor mounting plate made of steel with galvanization surface treatment.
• Pressed steel motor cover: pickled and phosphated surface, polyester powder coated and oven baked finish, colour grey, with hammered texture.
• Accident prevention and anti-bird grilles (to UNI ISO 13857 standard), consisting of electrically welded steel rings with epoxy powder coated finish, colour black.
• Centrifugal impeller with self-cleaning backward curved blades, dynamically balanced (UNI ISO 1940, Point 1 – Class 6.3), made of electrolytically galvanized pressed steel.
• 1 speed three-phase AC motor with shaft turning in ball bearings, size to UNEL MEC standard, flange B5, self-ventilating. Motor insulation class H, with metal cooling fan and cable gland.
• Maximum air flow: 18000 m3/h.
• Equipped with a motor start capacitor that must be installed remotely from the fan so that it cannot be damaged through direct exposure to heat.
• Galvanized steel eye lugs for transport and lifting/handling operations.
• Cable guaranteeing continuity of earth connection.
• Steel safety wire for anchoring the appliance once installed.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Absorbed Current max (A)
    6,42
  • Absorbed Power max (W)
    3460
  • Frequency (Hz)
    50
  • Insulation Class
  • Max ambient temperature for continuous operation (°C)
    90
  • Motor IP protection
    55
  • Nominal Diameter (mm)
    560
  • Number of Phases (Ph)
    3
  • Number of Poles
    6
  • Voltage (V)
    380-415
  • Weight (Kg)
    222

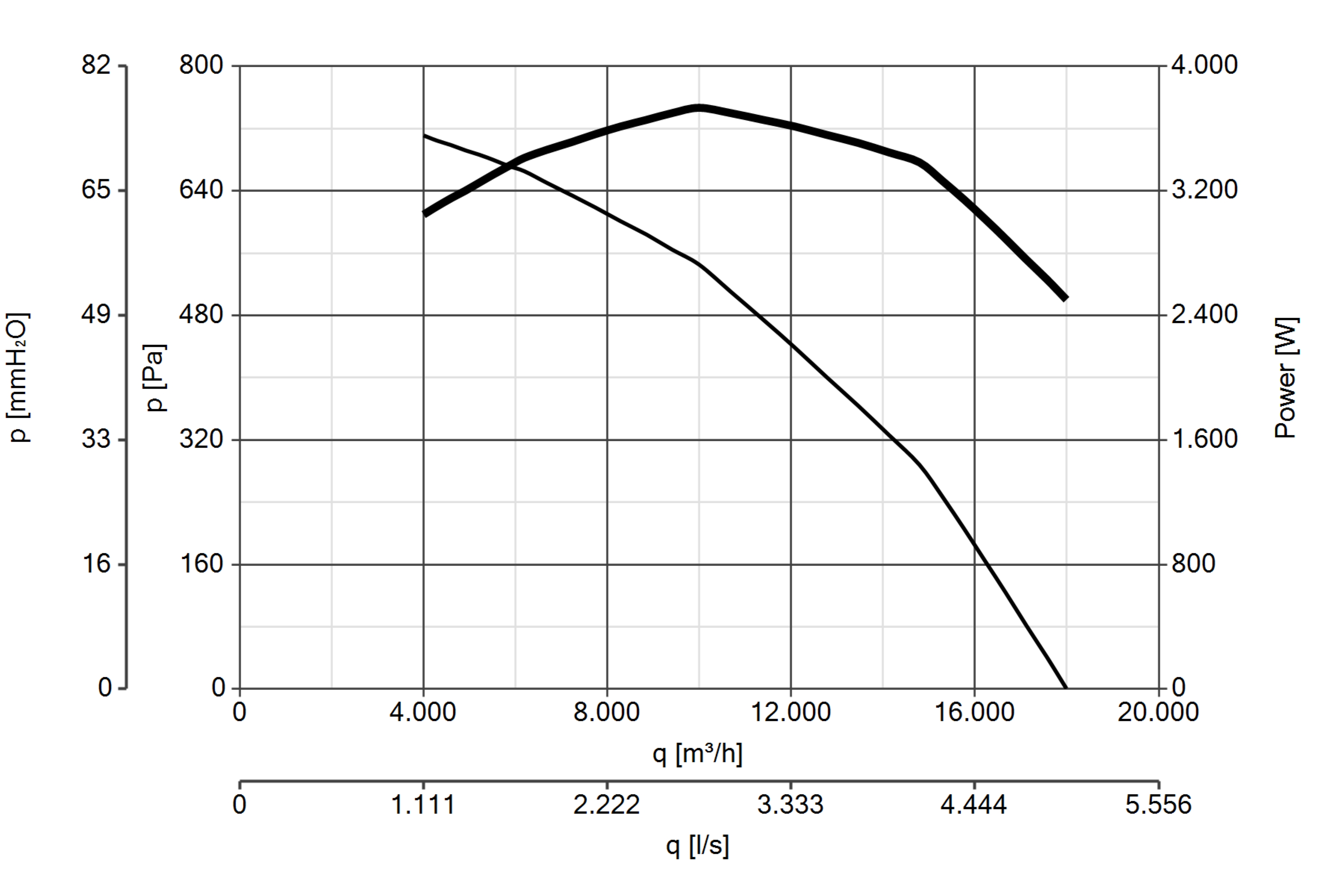

  • Delivery max (l/s)
    5000
  • Delivery max (m³/h)
    18000
  • Pressure max (mmH2O)
    80
  • Pressure max (Pa)
    785
  • RPM
    950
  • Sound Pressure level Lp [dB (A)] 3m
    84
  • Size A (mm)
    1165
  • Size B (mm)
    980
  • Size C (mm)
    900
  • Size D (mm)
    605
  • Size E (mm)
    383
  • Size F (mm)
    38
  • Size G (mm)
    40
  • Size H (mm)
    1026
  • Size L (mm)
    520
  • Size M (mm)
    529
  • Size N (mm)
    805
