Description

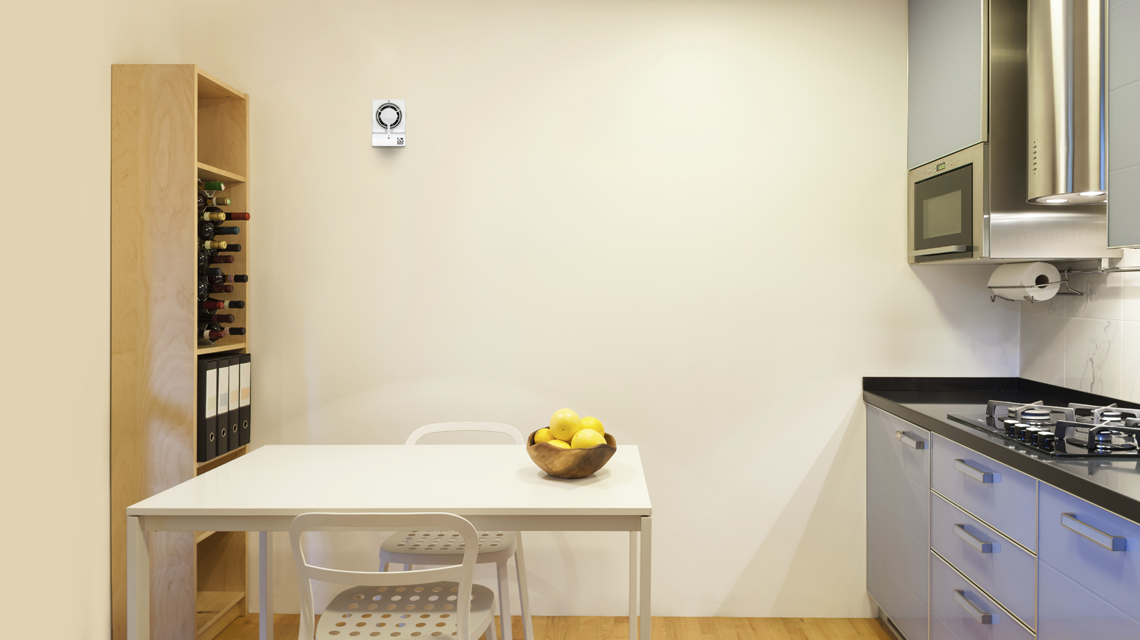

• Suitable for use in bathrooms, toilets, kitchens and small rooms.
• High air capacity and low noise levels due to wing shaped blades.
• Motor with thermal overload protection.
• Wear resistant ABS casing for mechanical strength.
• Quick and easy installation and maintenance (all components accessible and easily removed).
• Can be used with a maximum of 50 cm ducting.
• High air capacity and low noise levels due to wing shaped blades.
• Motor with thermal overload protection.
• Wear resistant ABS casing for mechanical strength.
• Quick and easy installation and maintenance (all components accessible and easily removed).
• Can be used with a maximum of 50 cm ducting.
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
IPX0
-
Max absorbed current (A)0,09
-
Max absorbed power (W)16
-
Nominal diameter (mm)100
-
Ø Discharge hole (mm)98
-
Voltage (V)220-240
-
Weight (Kg)0,44
-
Max airflow (l/s)23,6
-
Max airflow (m³/h)85
-
Max pressure (mmH2O)4,2
-
Max pressure (Pa)41,2
-
RPM2430
-
Sound power Lw [dB(A)]51
-
Sound pressure Lp [dB (A)] at 3 m39
-

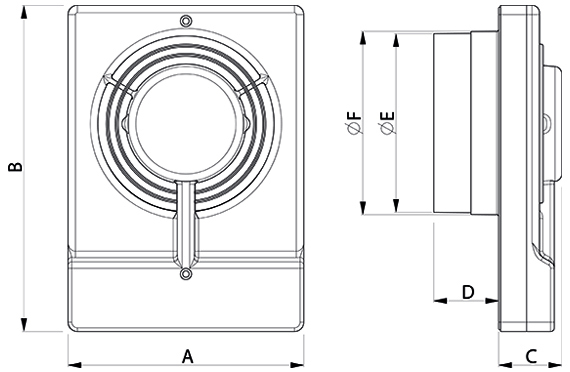

Size A (mm)127
-
Size B (mm)176
-
Size C (mm)39
-
Size D (mm)35
-
Size E (mm)97
-
Size F (mm)99
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
