BACK
Code 25084

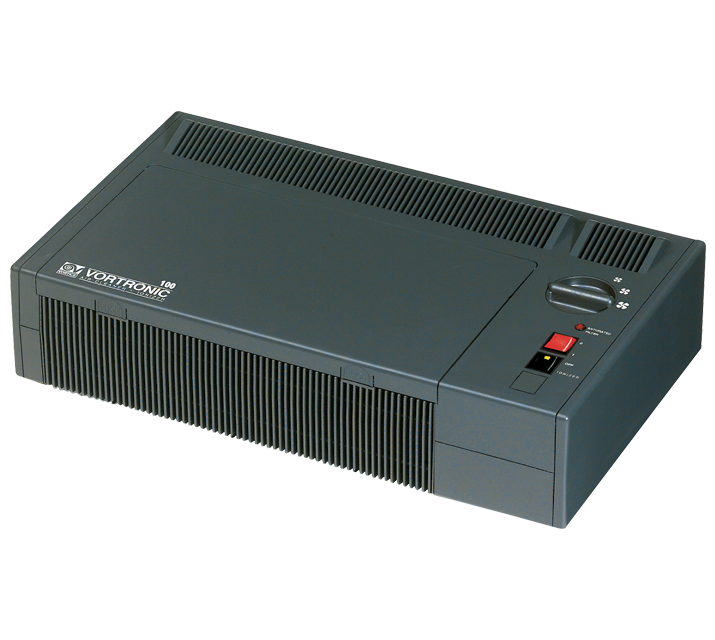

VORTRONIC 100 FR
Air cleaners + ionisers with electronically controlled electrostatic cell

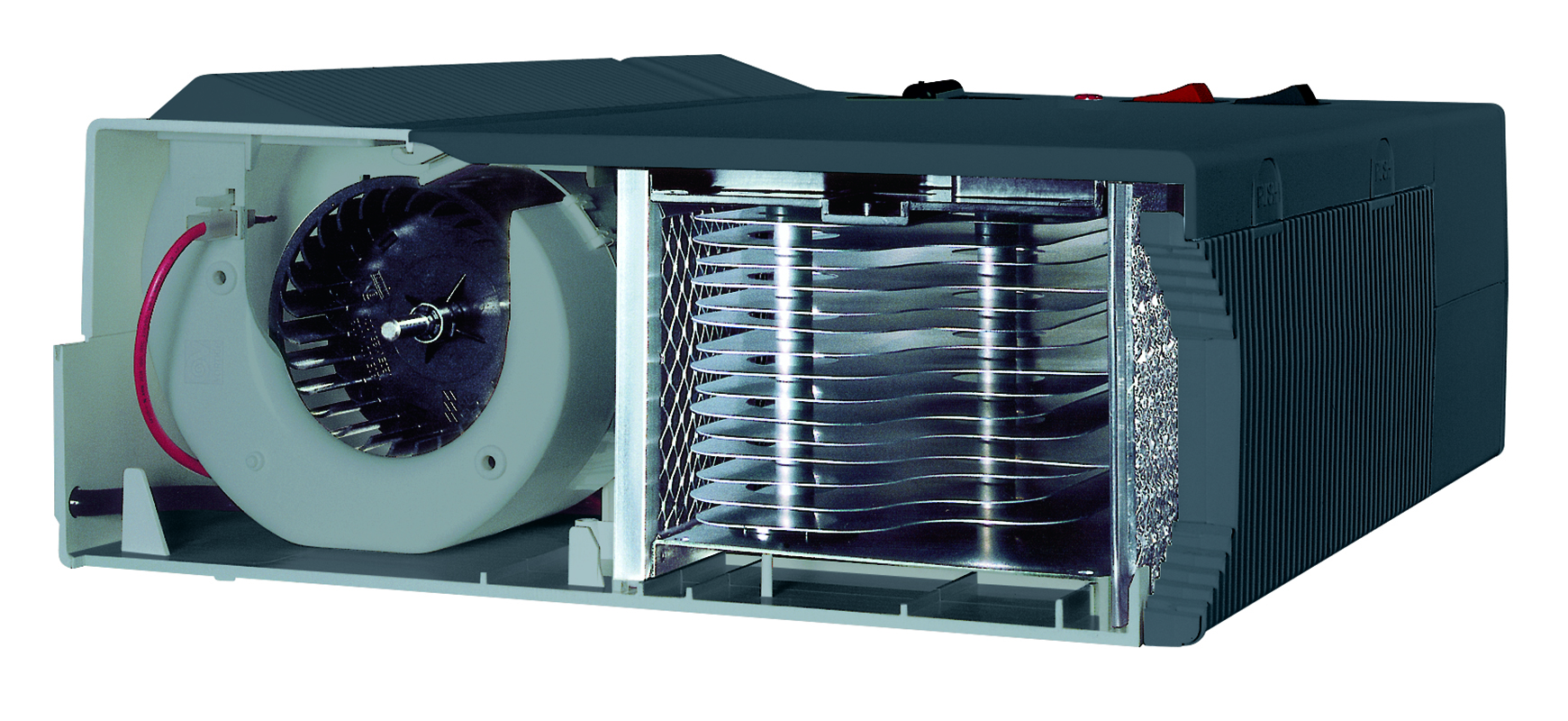

Description
• Casing, filter cover, sides, grille and base moulded from impact-resistant thermoplastic material, colour black.
• 3 speed motor with thermal overload protection and double extension shaft turning in self-lubricating bushings, coupled to 2 impellers made of thermoplastic material; vibration eliminated by rubber dampers located between motor and mounting.
• Aluminium mesh prefilter.
• Electrostatic filter, electronically controlled.
• Granular activated carbon filter.
• Ionizing electrodes selectable by way of dedicated switch.
• On/off switch.
• Fan speed controlled by 3-position rotary switch.
• Base interchangeable with one side to allow floor-standing operation.
• Power cord with moulded plug.
• IMQ safety certification.
• 3 speed motor with thermal overload protection and double extension shaft turning in self-lubricating bushings, coupled to 2 impellers made of thermoplastic material; vibration eliminated by rubber dampers located between motor and mounting.
• Aluminium mesh prefilter.
• Electrostatic filter, electronically controlled.
• Granular activated carbon filter.
• Ionizing electrodes selectable by way of dedicated switch.
• On/off switch.
• Fan speed controlled by 3-position rotary switch.
• Base interchangeable with one side to allow floor-standing operation.
• Power cord with moulded plug.
• IMQ safety certification.
Certifications
-
CE
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classI°
-
Max absorbed current (A)0,22
-
Max absorbed power (W)36
-
Recommended room size (m³)100
-
Voltage (V)230
-
Weight (Kg)5,9
-
Sound pressure Lp [dB (A)] at 3 m39,7
-
Size A (mm)420
-
Size B (mm)120
-
Size C (mm)315
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
Accessories
Discover accessories related to the product

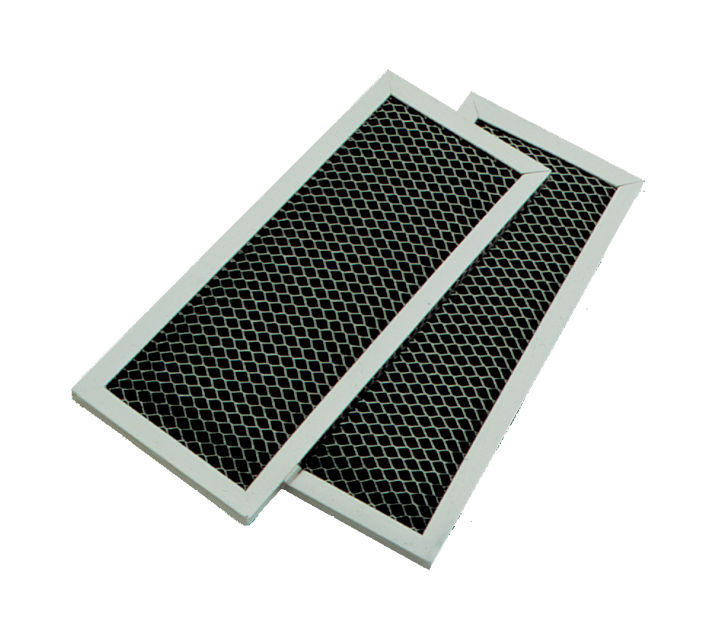

FILTRI POLIEST.CARB.A.PER DEPURO 100
• Activated-carbon fibre filter (6 per package).
